Full Automatic Chocolate 2D/3D One-Shot Depositor Production Line

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New, New
Applicable Industries:
Food & Beverage Factory
After Warranty Service:
Online support, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
330/380V
Power(W):
27kw
Dimension(L*W*H):
18500*1210*2500mm
Weight:
6500kg
Certification:
CE ISO
Application fields:
Snack food factory
Machinery Function:
depositing
Raw material:
Nuts, chocolate
Output product name:
chocolate
Key Selling Points:
High Safety Level
Application:
Chocolate
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
chocoalte machine
Warranty:
1 year

Full Automatic Chocolate 2D/3D One-Shot Depositor Production Line


product display





Product parameters

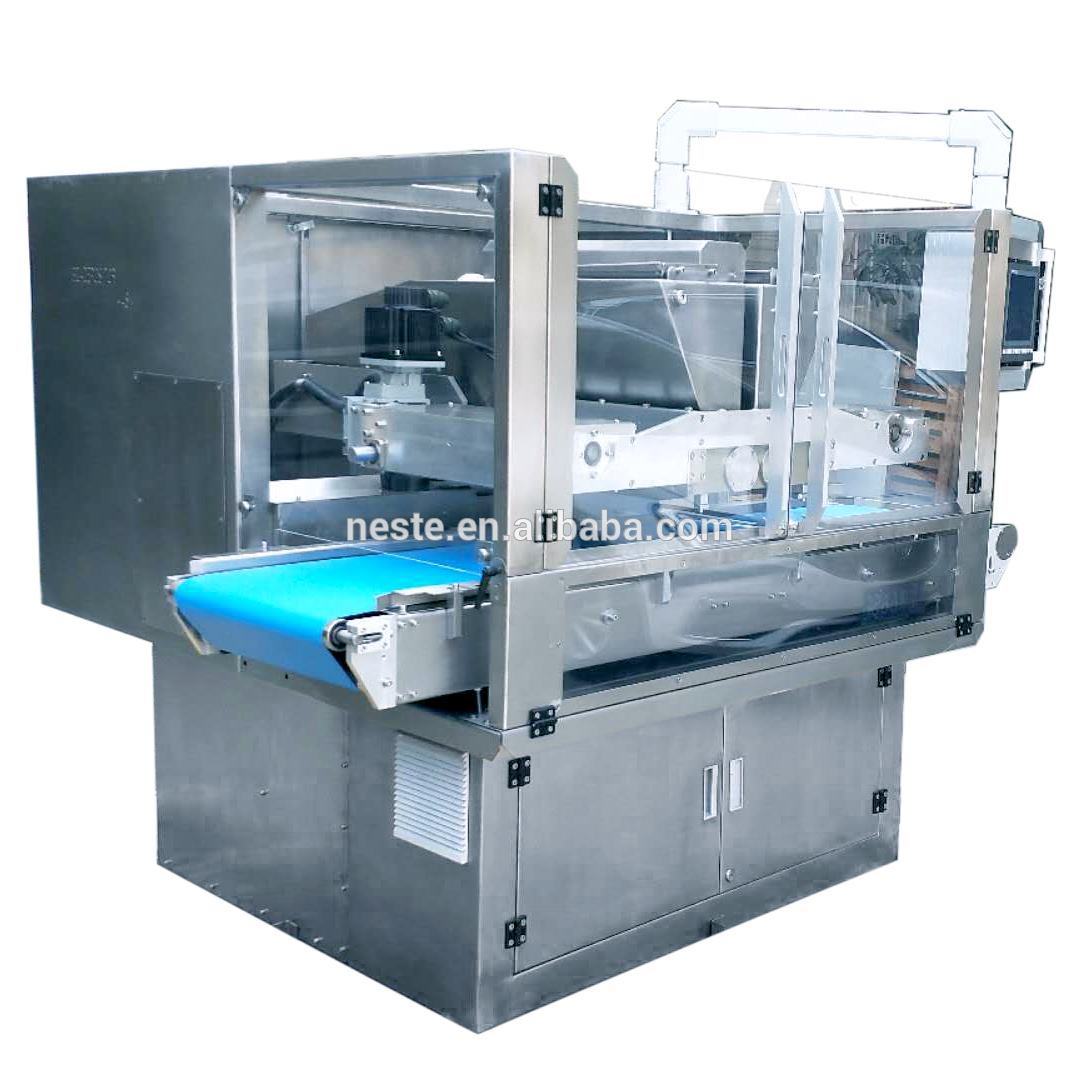

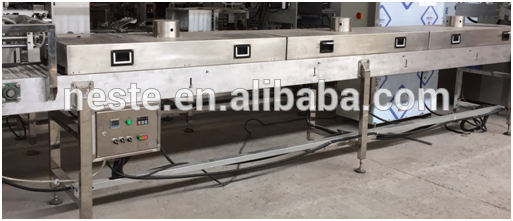

This Chocolate depositor is a high-tech automatic chocolate machine. The production process usually include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demoulding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate, etc.

The most special features of this line is the flexibilityas every parts of this line can be used as an independent machine and also they can be combined with other machines.

Features of new version:

1.Depositor is with shell, these shell is not only for hygienic purpose, but also for safety protection.

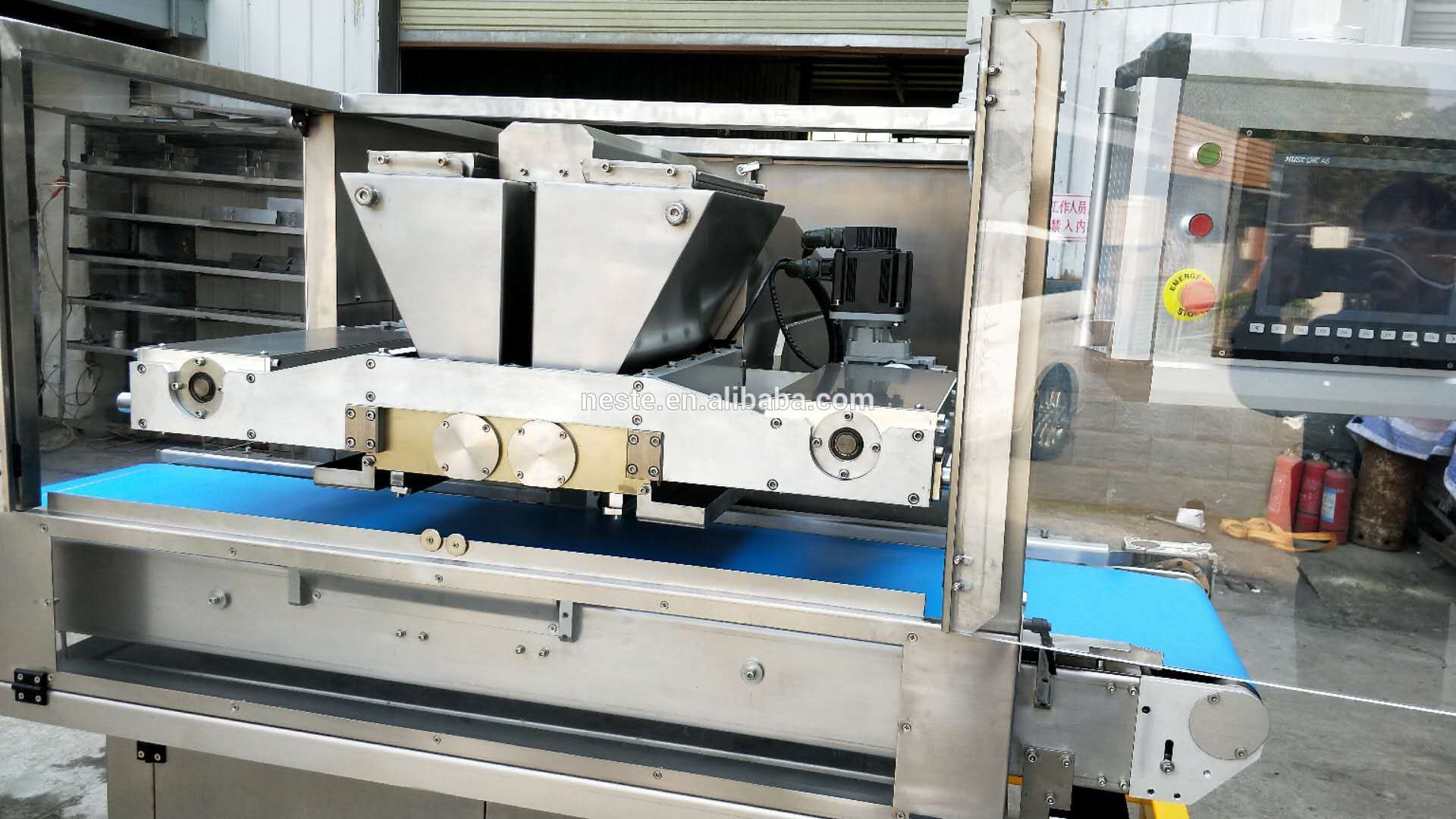

2.The depositing head is with completely new mechanism, which enables fast assemble and disassemble of the depositing head, depositing plate, etc. This design make it very fast and convenient for depositing plate change or depositor cleaning.

2D One-Shot Depositor: One-shot depositor, single color, two color, center filling, chocolate ball, center filled chocolate ball, etc.

3D Decoration Depositor: Has all the function of 2D one-shot depositor, specialized in decoration depositing function. Depositor is able to move to any direction necessary. It is even able to draw picture



Parameter/Model

2D One-Shot Depositor

3D Decoration depositor

PLC

DELTA

DELTA

Depositing Speed

6-12 mouds/min

4-12 mouds/min

Piston Numbers

48/72/96*2 pistons

48/72/96*2 pistons

Products Per Shot

Up to 192 pcs

Up to 192 pcs

Servo Motor

4sets

5sets

Movable Axis

Z+X or Z+Belt

X+Y+Z

Depositing Mode

A/B/A+B

A/B/A+B

Depositing Accuracy

≤±0.1g

≤±0.1g

Filling Rate

≤80%

≤80%

Power

12KW

13KW

Dimension

2000*1580*1600mm

2000*1580*1600mm

Mould size

450-300-30/450-230-30/275-175-30mm

450-300-30/450-230-30/275-175-30mm





HOT SALE


Main category


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.

Delivery Clause
1. The Equipment will be collected from the Seller’s factory by Buyer, or will be delivered by Seller on agreed terms.
2. Leading time is usually 30-60 working days.

FAQ




1. Payment: T/T in advance. 40% down payment, 60% against acceptance from customers

2. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

3. Customization is available.

5. What’s the information should I let you know if I want to get a full quotation?

Bag type, size, weight of material, type of material, thickness, printing, colors, quantity

6. When we create our own artwork design, what kind of format is available for you?

The popular format: AI, JPEG, CDR,PSD, TIF

7. Wooden case packed with machine and English manule

8. Transformer is provided

9. Technical manual in English is provided

10. The machine is stainless steel

11. In the line of exporting packing material
