Auto depositing machine 4-12 mpm 3D cartoon pattern chocolate depositor machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Applicable Industries:
Food & Beverage Factory
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
380V/50HZ/Three Phase
Power(W):
24Kw
Dimension(L*W*H):
18000*1500*1900mm
Weight:
4000kg
Certification:
CE
Warranty:
1 year
Application fields:
Snack food factory, chocolate/candy factory
Machinery Function:
depositing
Raw material:
chocolate, chocolate food
Output product name:
chocolate
Condition:
New
Application:
Chocolate
After-sales Service Provided:
Engineers available to service machinery overseas, Field installation, commissioning and training
Product name:
chocolate depositor machine
Matched machine:
chocolate depositing machine
Usage:
chocolate/candy/food moulding/depositing
Compressor:
0.4Mpa
Feature:
1D/2D/3D depositing
Service:
good any supports

Auto depositing machine 4-12 mpm 3D cartoon pattern chocolate depositor machine


Product Description

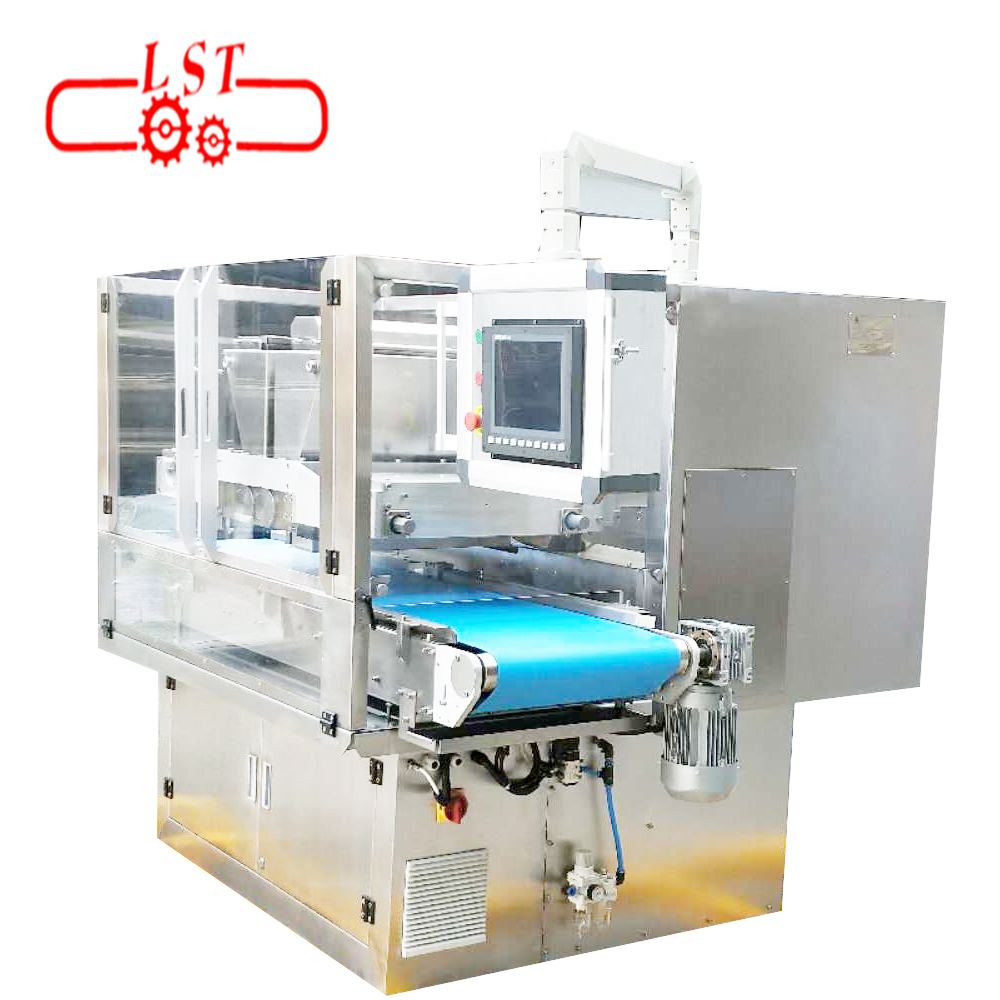

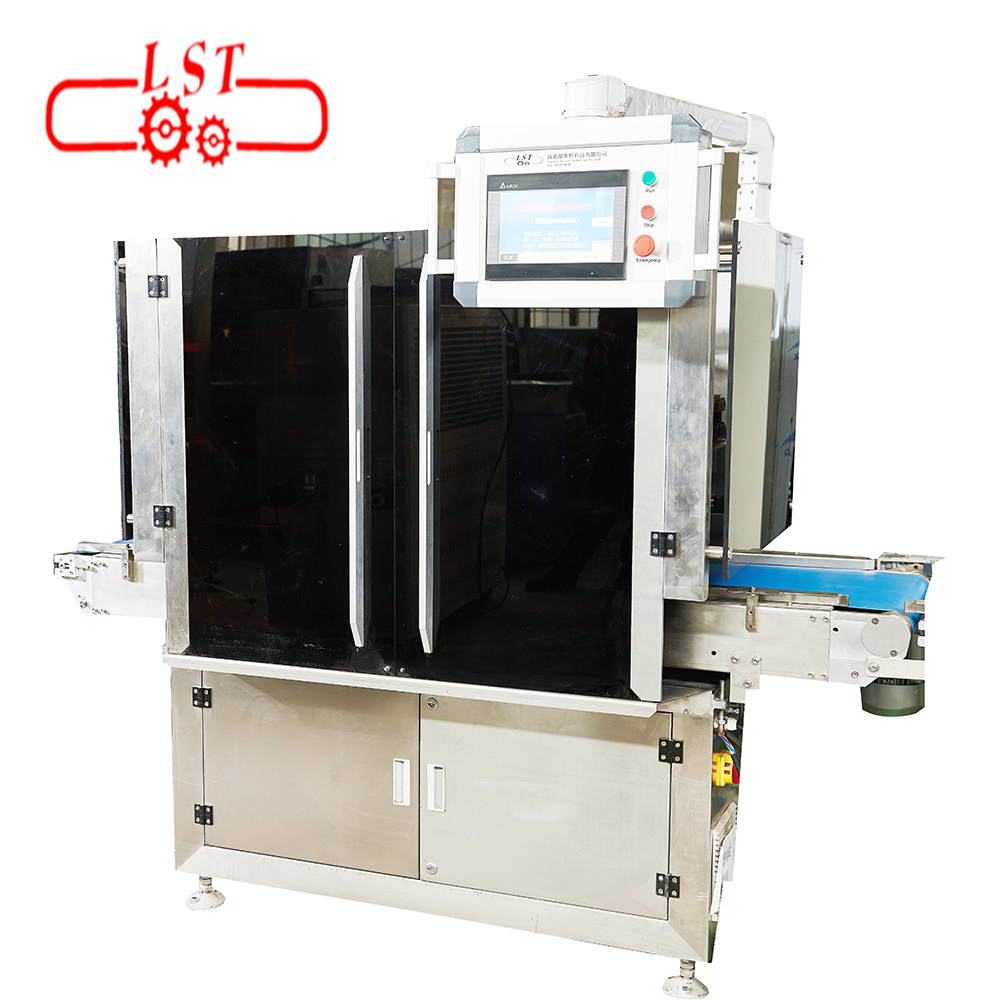

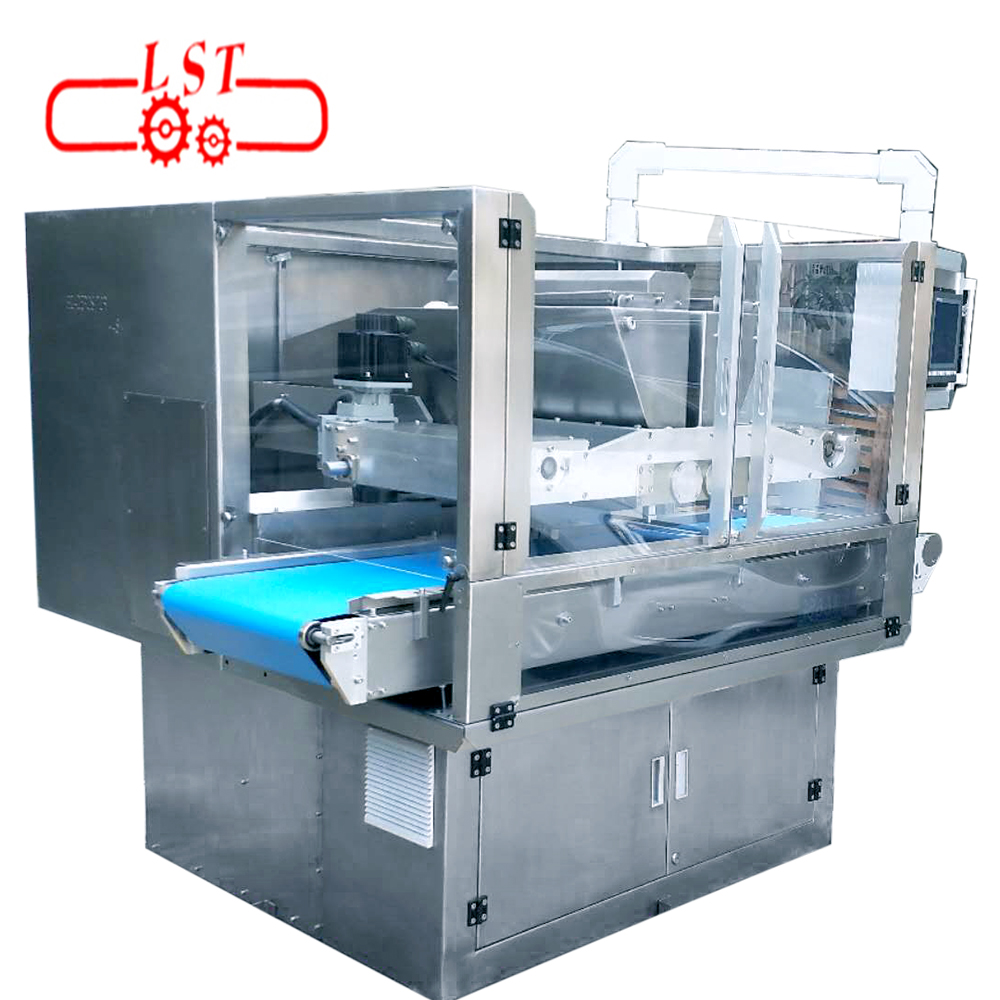

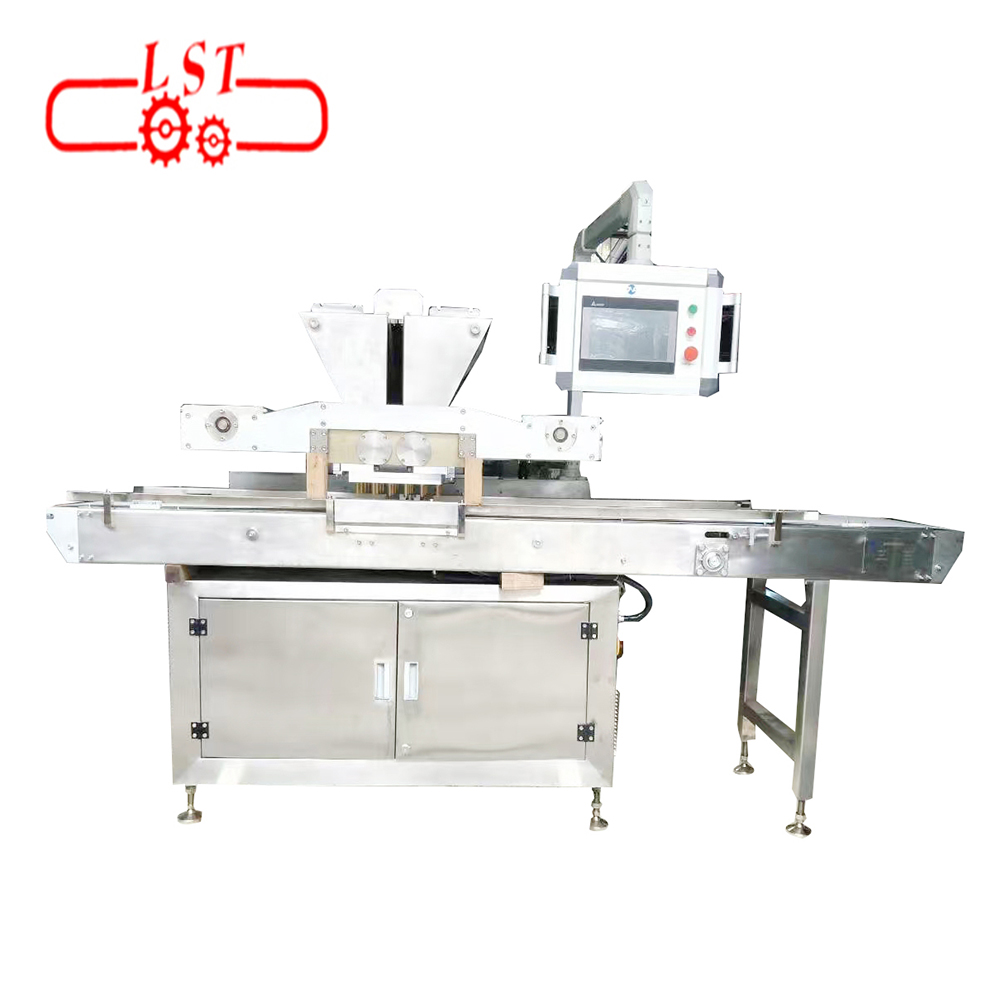

Newest auto 4-12 mpm 3D  cartoon pattern chocolate depositor machine

Productivity

Nozzles

Power

Air supply

Power supply

Net Weight

Dimension

8-18 moulds/min

48/72/96*2

22kw

4MP

Customized

500kg

4900-1680-1800mm

Product Feature

This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate, etc.

The most special features of this line is the flexibilityas every parts of this line can be used as a separate part and combine with some other machine.

Features of new version

1.Depositor is with shell, these shell is not only for hygienic purpose, but also for safety protection.

2.The depositing head is with completely new mechanism, which enables fast assemble and disassemble of the depositing head, depositing plate, etc. This design made it very fast and convenient for depositing plate change or depositor cleaning.

Difference between 2 D and 3D Depositor

2D one-shot depositor: One-shot depositor, single color, two colors, center filling, chocolate ball, center filled chocolate ball, etc.

3D one-shot decorating depositor: Has all the function of 2D one-shot depositor, specialized in decorating depositing function. Depositor is able to move to any direction necessary. It is even able to draw picture.

Main Features & Advantages

1.Full automatic PLC controlled, Schneider electronic components, Omrons photodetection, AirTAC and SMC pneumatic elementmakes it highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.

2.The Beckhoff Remote Control System from Germany enables us to modify system parameters, diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.

3.There are many add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler, etc. Customers can choose these add-on devices accordingly and add or change the add-on devices for new product whenever needed.

4.This line is combined with all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.

5.There are single depositor, double depositor or more to meet different product production need. Thespecial mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.

6.To produce different kinds of chocolate products, you only need to change the pouring plate and moulds.

Production process

CMould heating-chocolate depositing-mould vibrating-mould conveying-chocolate cooling-mould vibrating
