China Big Factory Good Quality Small Chocolate Ball Making Machine Production Line Machines Chocolate Bar Making Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New, New
Applicable Industries:
Food & Beverage Factory
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
220V/380V/440
Power(W):
55kw
Dimension(L*W*H):
6m*3.5m*2.6m
Weight:
7T
Certification:
CE ISO
Warranty:
1 Year
Application fields:
Snack food factory
Application:
Chocolate
After-sales Service Provided:
Engineers available to service machinery overseas, Field installation, commissioning and training

China Big Factory Good Quality Small Chocolate Ball Making Machine Production Line Machines Chocolate Bar Making Machine


Product display




Product parameters


Item

Product Name

Model

Remarks

LST-BM600

Ball Mill

Ball Mill Main Unit

600L

2unit

304 stainless steel, PLC controller

Capacity=1T/h

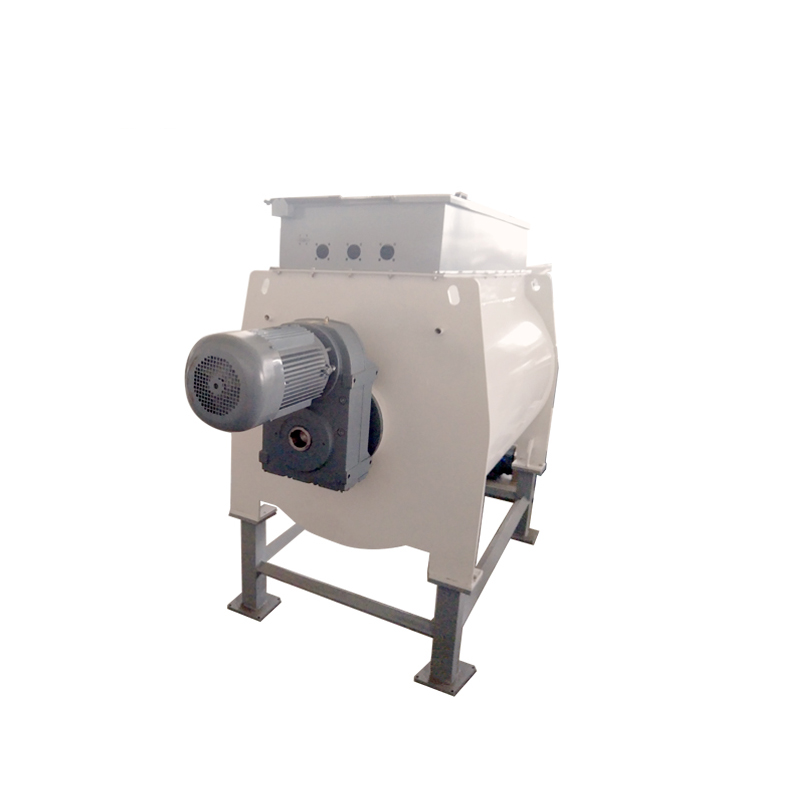

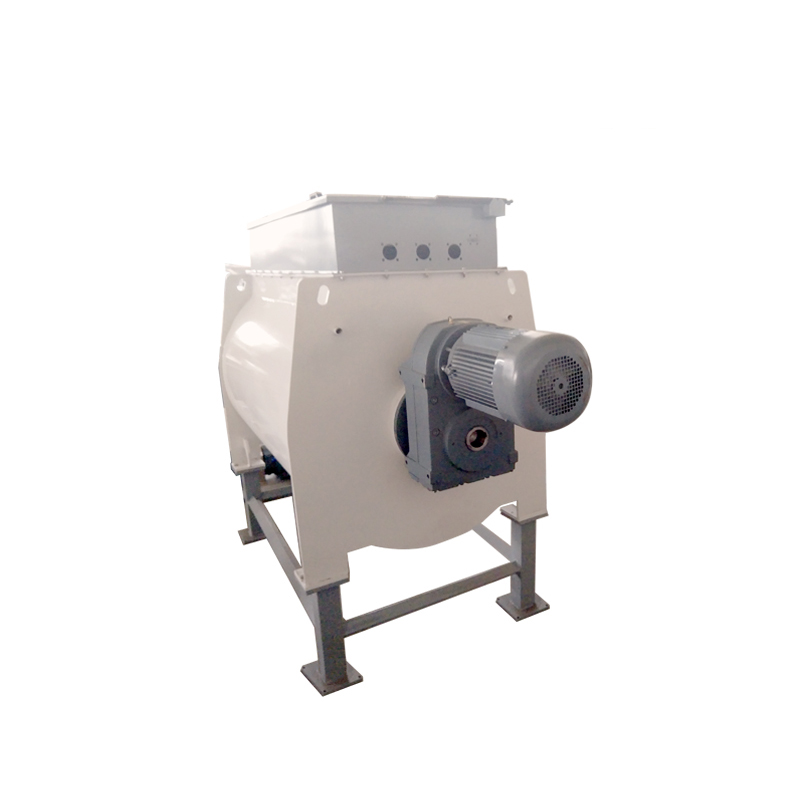

Tank For Mixing

1000L

1 unit

304sss, Horizontal type

Transit Tank

150L

1 unit

304sss, Vertical type

Syrup Pump

1T

2 unit

316sss

Strong Magnetic Strainer

M

1unit

304 Stainless Steel

Water Cooling Machine

7P

1 unit

7P water chiller

Die temperature machine

M

1 set

Standard

Pipes

Φ51

1 set

304 Stainless Steel, jacketed

Spare Parts

*Electrical Valve

*Heating Pipe

*Water pump

*Temperature Probe

*Rotating Joint

EXW

 USD 95,500

Terms:

1.     Payment:TT,40% down payment, 60%before delivery.

2.     Lead Time:60 days after down payment received.

3.     One year warranty.

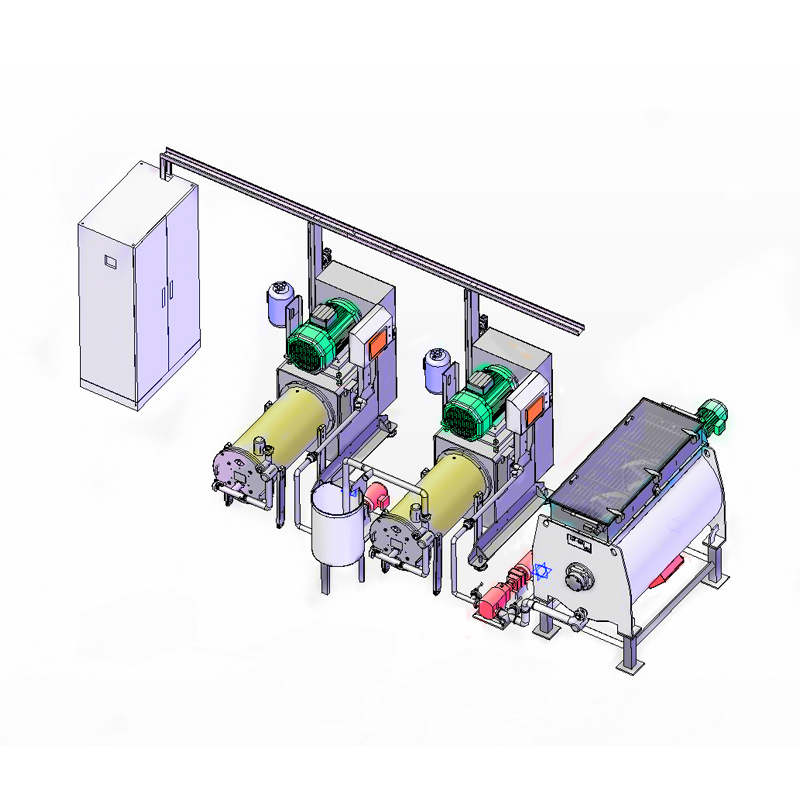

LST-BM600 Ball Mill Group


Comparing with refiner, ball mill has been improved with the advantages of low energy consumption, high productivity, low noise, super low metal content, easy to clean, one-touch operation, etc. In this way, it has shortened 8-10 times of milling time and saved 4-6 times of energy consumption. With leading advanced technology and imported accessories with original packing, equipment performance and products’ quality is guaranteed.



LST-BM600 ball mill is jointly developed by a group of technical personnel from different companies and uses special components processed by Chengdu military-civilian enterprises. At the same time, it has adopted the advantages of many horizontal ball mill such as German BUHLER, Naichi, and Lehman, and  also cold and hot water internal circulation automatic temperature control system. Delta PLC and Schneider low-voltage electrical appliances. All these makes this ball-mill fully meet the international advanced level.

7.To reduce the acquaintance cost,the inner sleeve is also designed to be replaceable.

8.Full graphic-touch screen control, easy operation, automatic grinding process, parameter visualization, only 1 person needed for operating the complete set of equipment.





Name

Motor Power

PLC

Mixer

Tank

Grinding Time

Grinding Fineness

Water Chiller

Mixer Tank

Capacity

Sugar Powder

Granulated Sugar

LST-BM600

Ball Mill

37KW*2

DELTA

17.7kw

1-1.5h

1.5-2h

18~25μm

7HP

1000KG

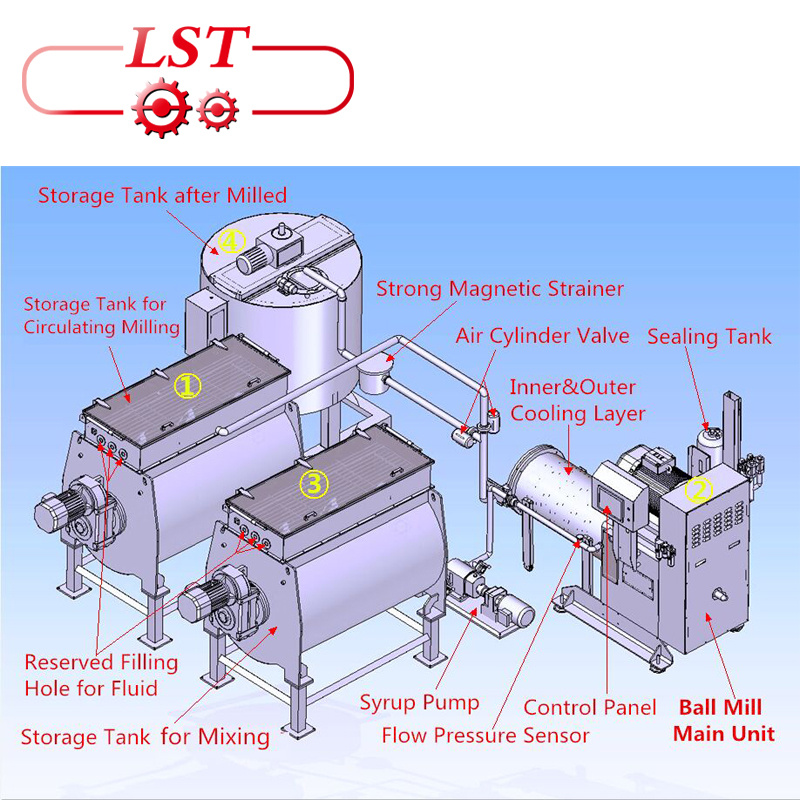

Working Process:

Load raw material into Mixer tank→Melting and Mix→First Ball Mill→Transit Tank→Second Ball Mill→Strong Magnetic Strainer→Out



Brief Introduction:

1.Granulated sugar can directly been added into the mixing tank and ready for milling process ( Currently, even some of the imported ball grinder can only grind powder sugar.) It tastes even better for grinded granulated sugar, and 99.99% of fineness can get 18-25 microns after milled.

2.With advanced technology in the world, and imported original parts, equipment performance and products’ quality is guaranteed. It also greatly reduces the noise, saves energy,as well as improves the production efficiency. Generally,it is maintenance-free.

3.Compared with foreign equipment, our machine only needs 7 HP water cooler, while 20 HP for some of foreign ones. Technically speaking, the durability of steel ball is improved, so the working life is lengthened. What’s more, recycle milling makes chocolate more tasty and greatly shorten milling time or even escape milling stage, which is what the foreign ball grinders can not do.

4.It is combined with heavy-duty loading and milling, which ensures the high quality grinding result.

5.It is easy to operate this machine.It is equipped with full set of imported fully automatic PLC. It only takes a few days training even for new staff to get all the operation knowledge. Only 1-2 staff/shift for each equipment is needed.

6.Important Parts are imported from Germany,Sweden,Taiwan,etc.,which makes the machine more stable and durable.





A.German imported original food grade chrome steel alloy mill bead.

Chemical Component

Mn

Si

Cr

C

0.3

0.2

1.4

1

B.   German imported sealing part-WSQ-90 model.

C.   Sweden imported SKF high speed double row roller bearing.

D.   Taiwan NAK lubricant oil sealing for bearing and O-rings.

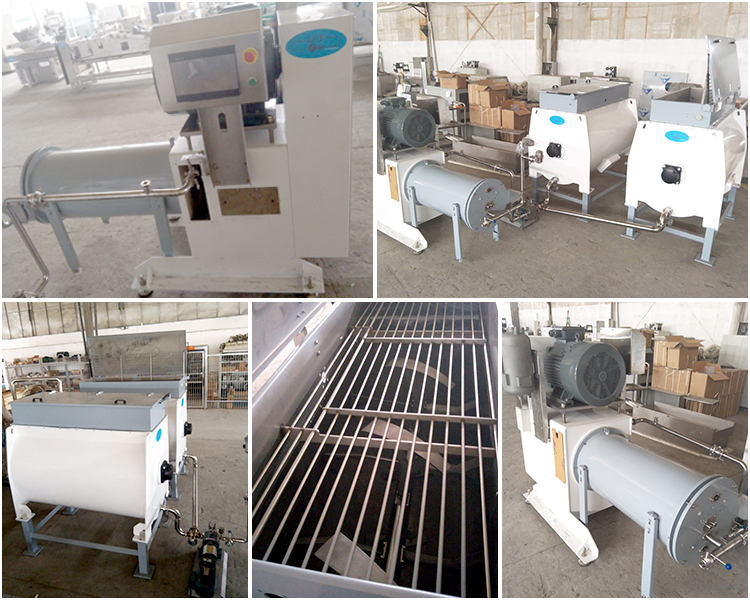

Product details




Granulated sugar can directly been added into the mixing tank and ready for milling process ( Currently, even some of the imported ball grinder can only grind powder sugar.) It tastes even better for grinded granulated sugar, and 99.99% of fineness can get 18-25 microns after milled.



Hot Sale


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.
