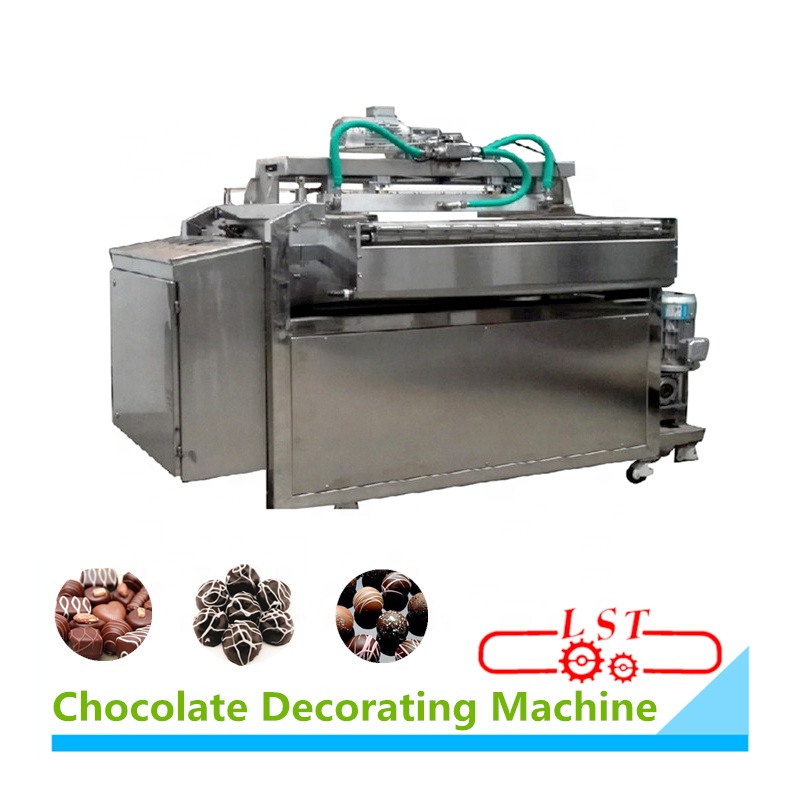

chocolate food decorating machines chocolate decorating production line

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New, New
Applicable Industries:
Food & Beverage Factory
After Warranty Service:
Online support
Local Service Location:
None
Showroom Location:
None
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
220V/380V
Power(W):
14kw
Dimension(L*W*H):
1200*1200*1570
Weight:
350kg
Certification:
CE Certificate
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Application fields:
Snack food factory
Machinery Function:
decorating
Raw material:
chocolate
Output product name:
chocolate
Key Selling Points:
Multifunctional
Application:
Chocolate
Product name:
chocolate decorating machine
Customiz:
Support

chocolate food decorating machines chocolate decorating  production line


Product parameters


Technical Parameters:

Conveyor Speed:1-8m/min

Mesh Belt Width:900mm
Overall power:14kw
Net weight :250kg

Gross weight:350kg
Outside dimension:1200*1200*1560mm

Packing size:1500*1200*1700mm



1.After enbrobed by enrobing machine, chocolate will be cooled down and moulded in the forepart cooling tunnel, so that the decorative design and outline can be shown.

2.No adjustable grade for the spraying nozzle,chocolate is fed to spray nozzle by insulation cylinder.In this way, dark chocolate could be combined with white/milk chocolate.

3.The spraying nozzle is insulated and easy to replace.

4.Cleaning and unclogging work is done by the top pins.

5.Photoelectricity-controlled positioning decorating.

6.Feeding system provides sizing for decorating system, and products are cooled down in the backend of cooling tunnel.

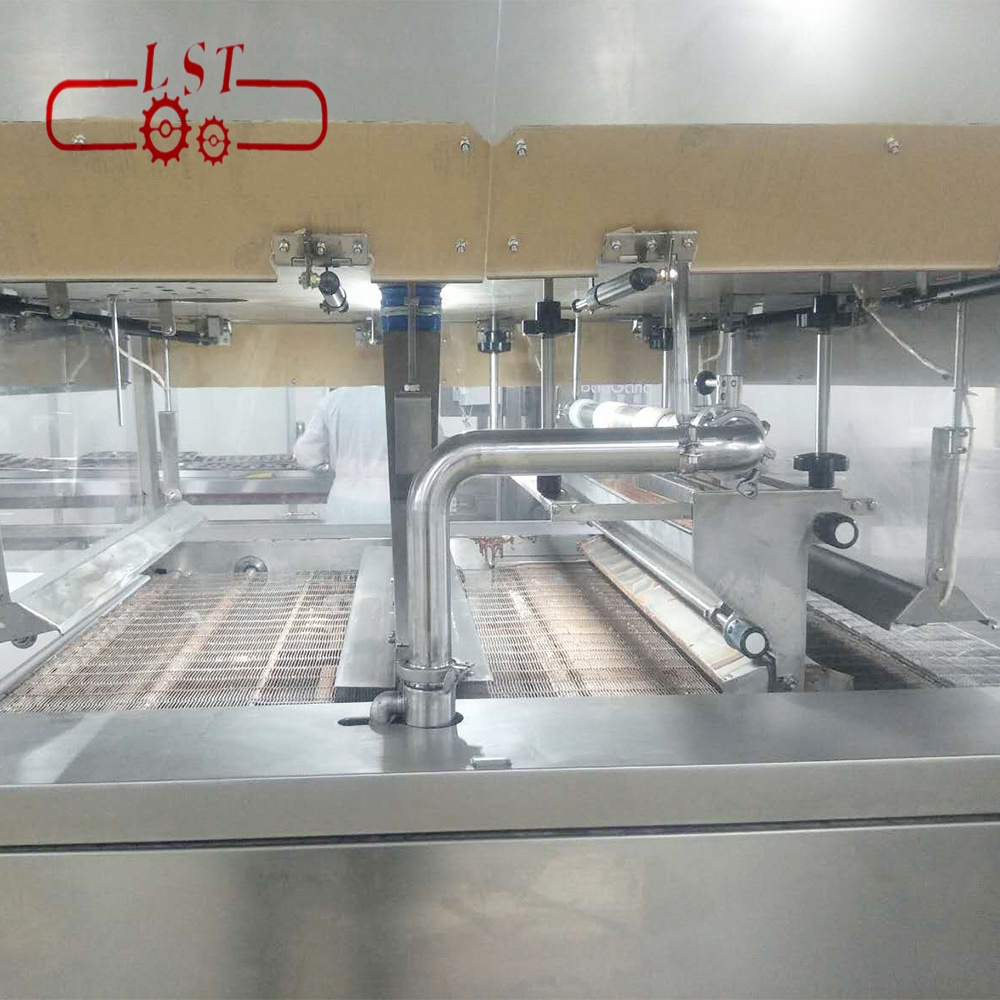

product display







Contact Supplier


Hot Sale


Main category


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.
