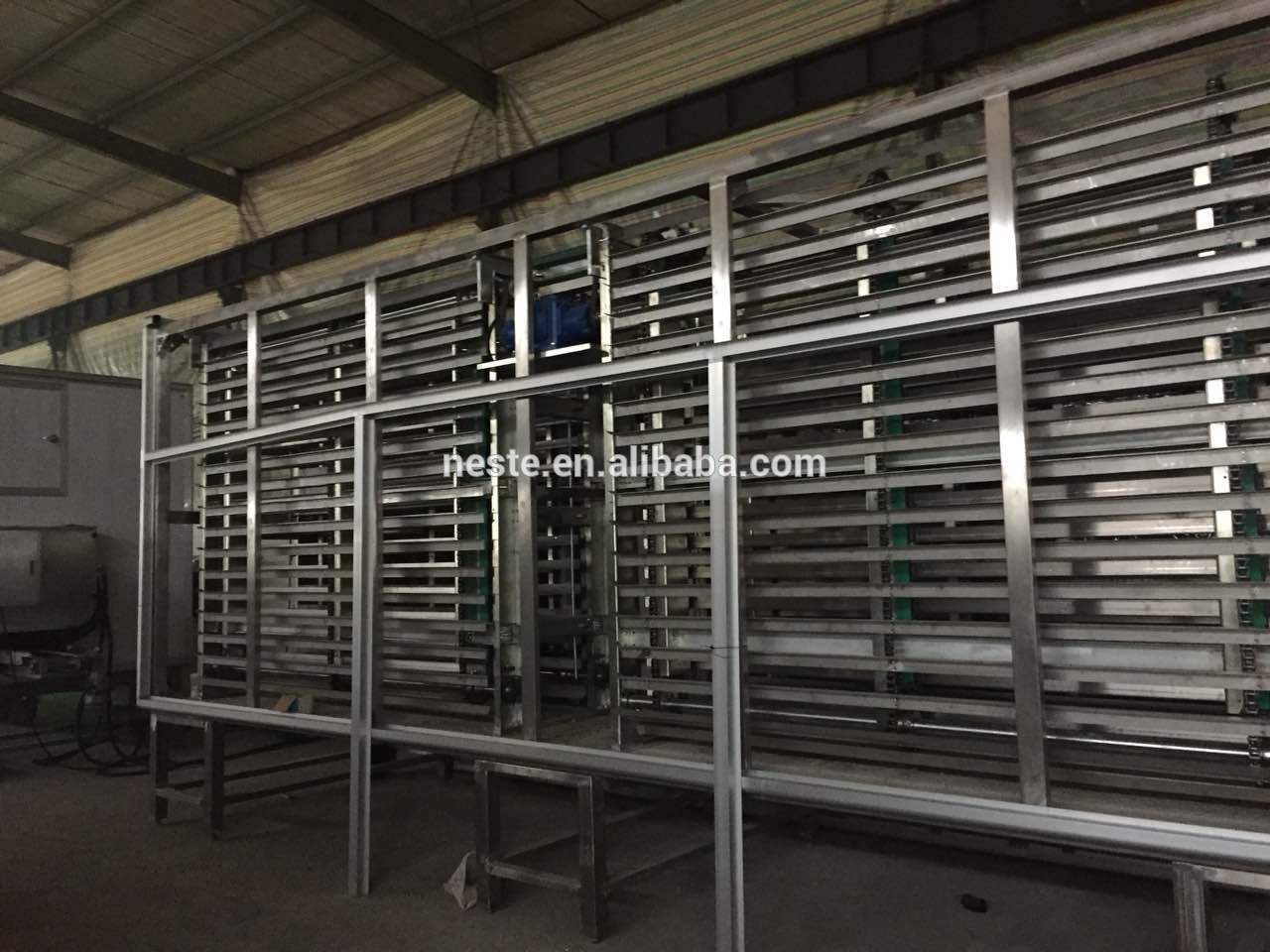

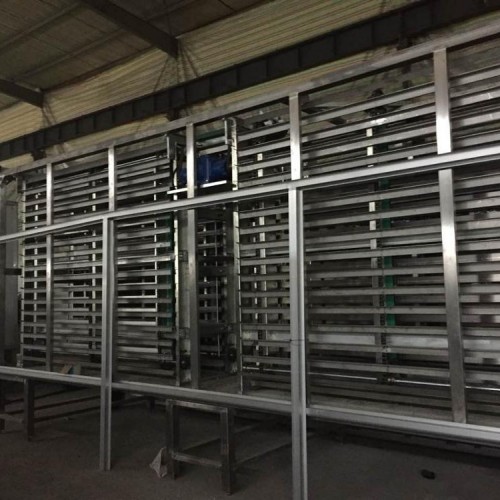

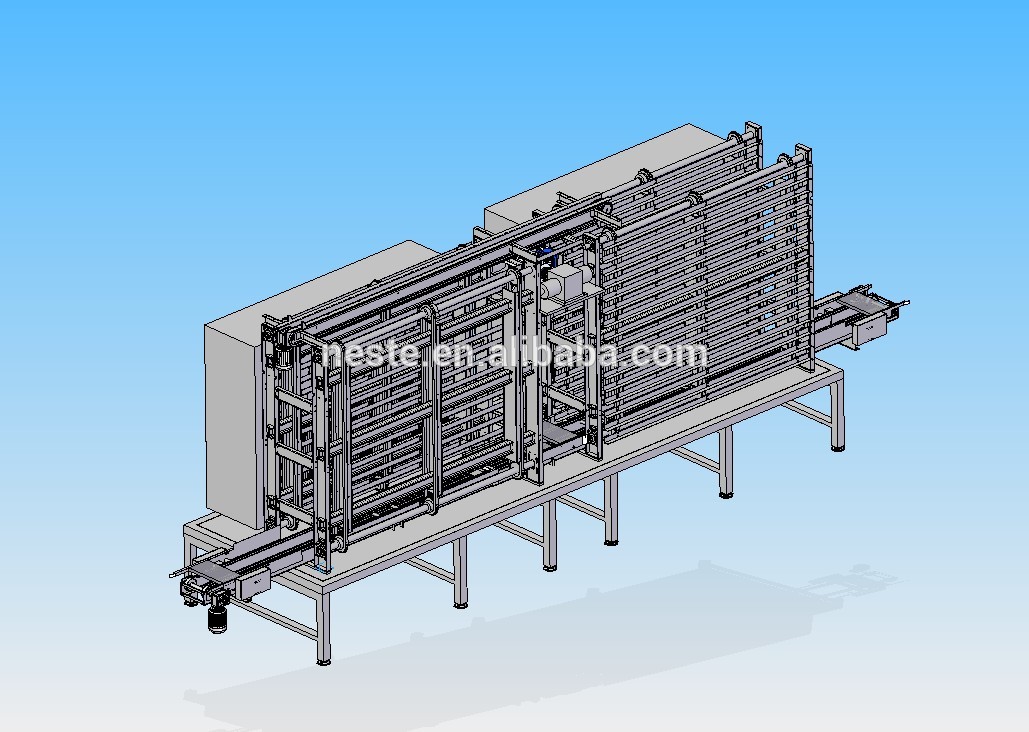

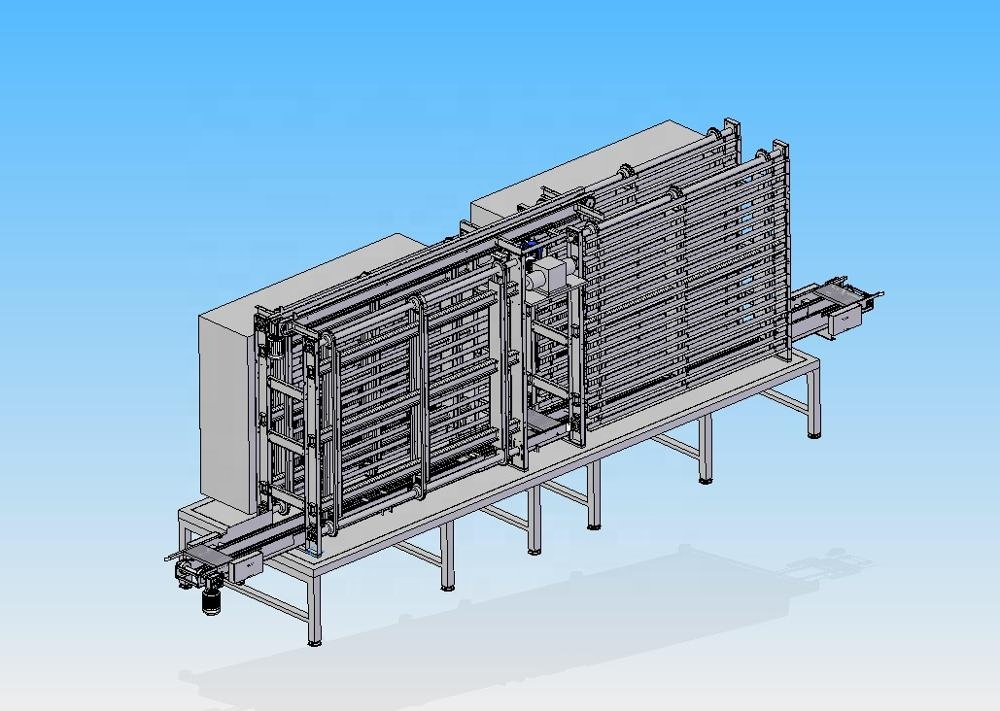

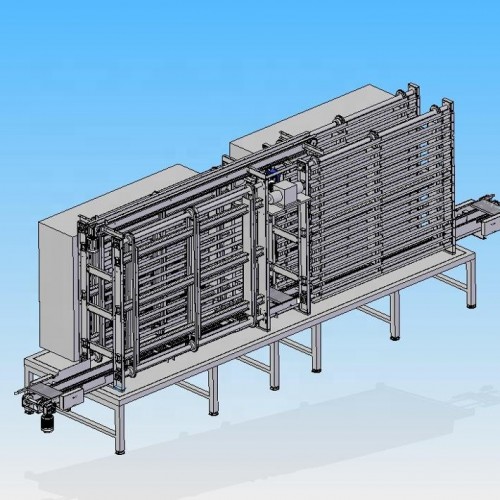

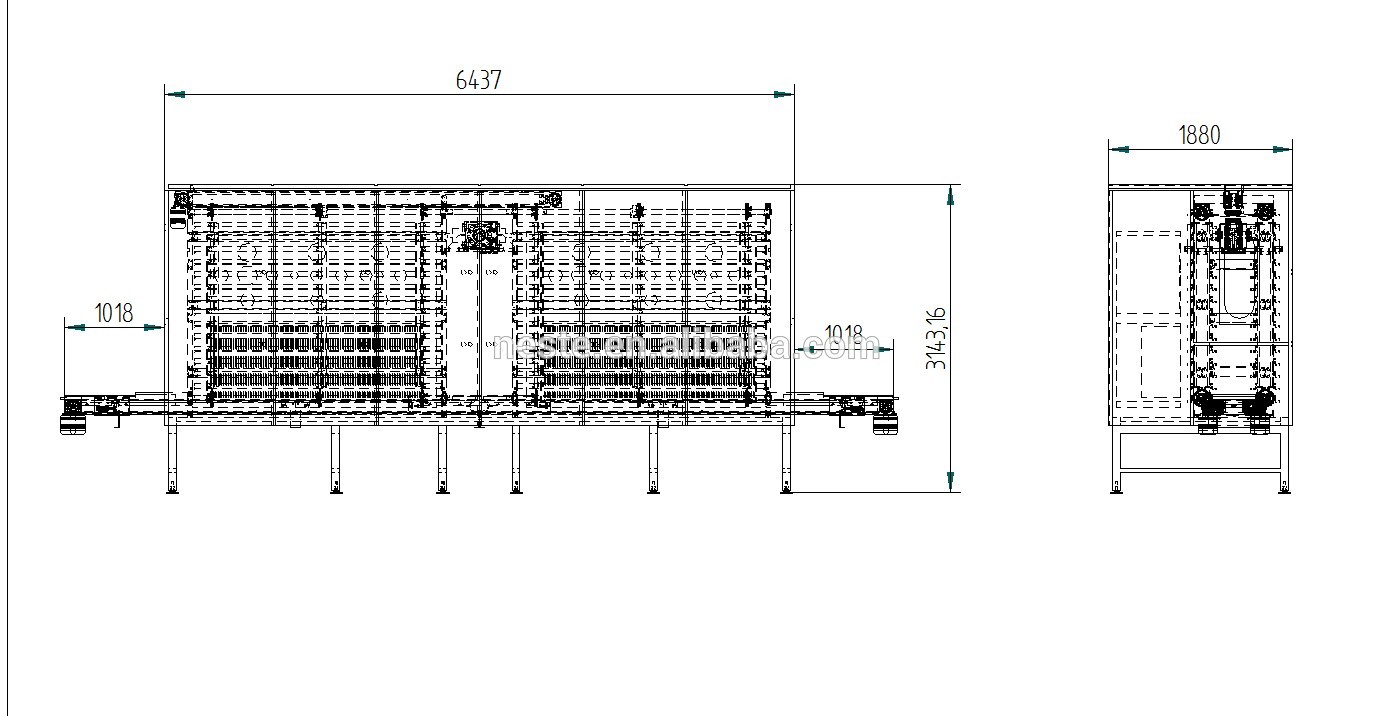

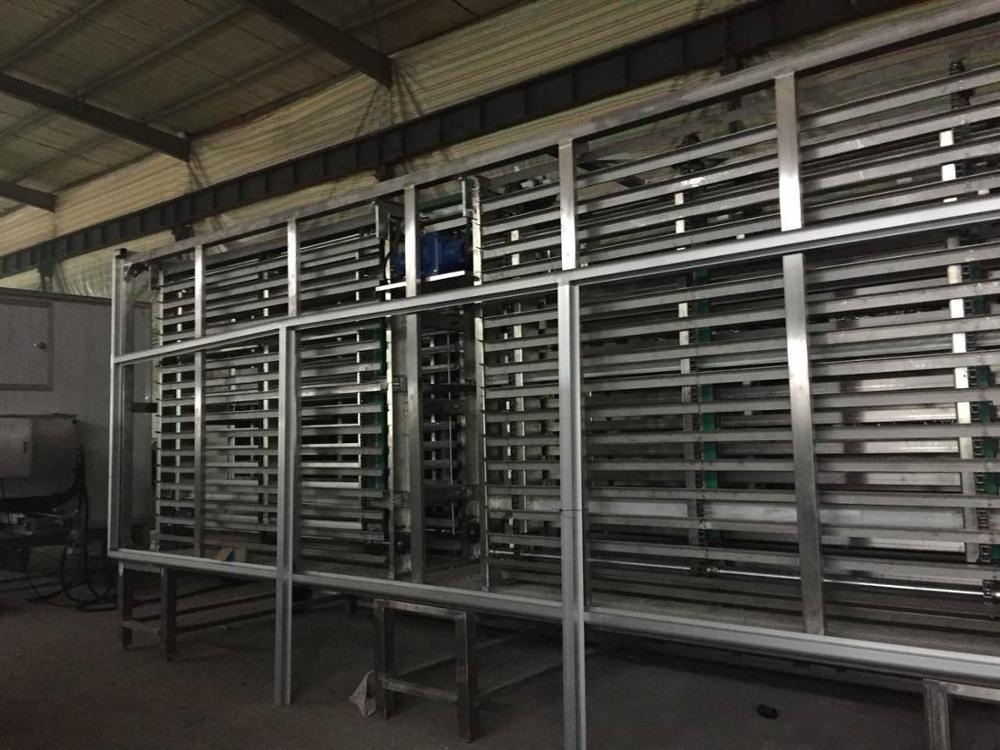

Vertical Cooling Tunnel

Vertical cooling tunnels are universally used for product cooling after molding. Such as filled candy, hard candy, taffy candy, chocolate and many other confectionery products. After conveying to cooling tunnel, products will be cooled by special cooling air. Cooling effect is stable and the whole process is clean. Import compressor from USA and frequency convertergreatly improves the stability and durability of this device.

Features and Advantages:

1.Cooling tunnel are equipped with 2 sets of 15P refrigeration systems. Direct touch cooling on bottom side and indirect top cooling design.

2.All stainless steel and which in compliance with food hygiene and safety standard.

3.Two stages or even more stages of cooling. The multi-stage cooling design makes it energy saving, fast cooling, easy operation,etc.

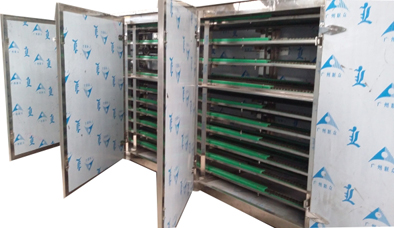

4.Tunnel cover adopts the latest design concept, fully covered and sealed design greatly avoid energy loss.

5.The most obvious and also the most important advantage for vertical cooling tunnel is space saving.

Touch screen	Brand:Delta
	Model OP-B07SS411
PLC	Brand:Delta
	Model VP-16ES200R
	Temperature sensor VP-04PT-E2
	Servo:ASD-A2-4543-M
	Servo-Motor:ECMA-L11845RS
	Frequency Converter:VFD007EL43A
OS	OS:Windows7
	PLC Programming software:WPLSoft 2.42
	Touch Screen programming software:DOPSoft 2.00.06
Capacity	Standar is 280 moulds,also we can customize
