Factory Chocolate Polishing Machine Peanut Coating Machine Food Processing Machinery

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New, New
Applicable Industries:
Food & Beverage Factory
After Warranty Service:
Online support, Field maintenance and repair service
Local Service Location:
Canada, Russia, Malaysia
Showroom Location:
None
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
330/380V
Power(W):
24kw
Dimension(L*W*H):
1800*1600*1500mm
Weight:
300kg
Certification:
CE ISO
Application fields:
Snack food factory, Bakery
Machinery Function:
Chocolate coating
Raw material:
Milk, Corn, Fruit, Wheat, Nuts, Soybean, Flour, Vegetables, Water
Output product name:
chocoalte
Key Selling Points:
Multifunctional
Application:
Candy
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 year

Factory Chocolate Polishing Machine Peanut Coating Machine Food Processing Machinery


Product parameters


Product Description

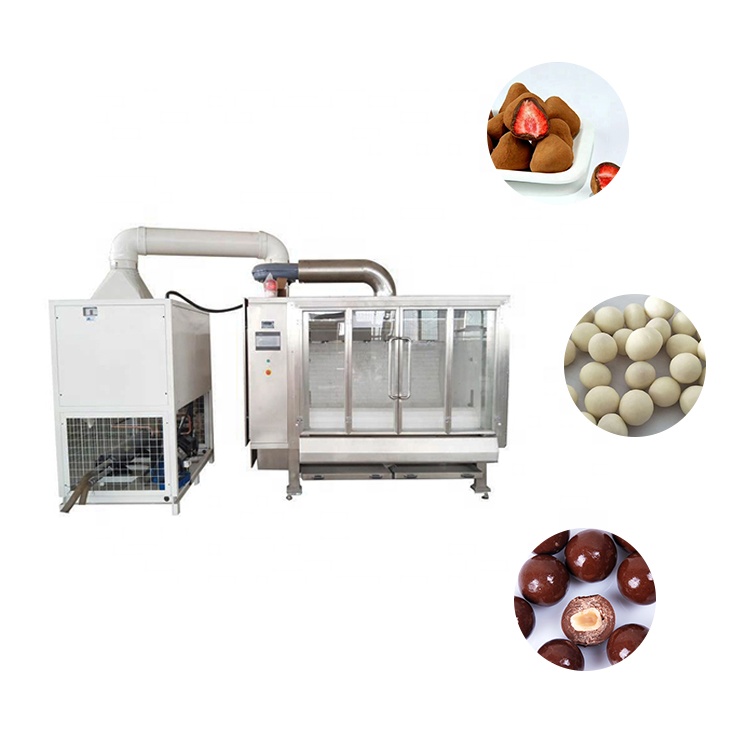

Chocolate Coating&Molding machine and Chocolate Polishing machine are mainly used in stuffed products with peanuts,almonds,raisin,puffed rice balls,Jelly candies, hard candies ,QQ candies etc.



Output

200-400kg/h  330L/batch

Total Power

12KW

Dimension

2450-1650-2250mm

Net Weight

800kg

Belt Speed

5-20m/min

Belt Width

1650mm

Compressed Air

0.4MPa

Power Supply

380V 50HZ or customized

Production process:


For special product

1.For fragile products and puffed product, Diameter ≥4mm, stuffed material ≤250 liters. The more fragile, the less material.

2.For products with corner and edges,round shape and consistent thickness is not suggested.

3.For adhesive product, put less adhesive material. In case materials stick together and effect the shaping.

4.For chocolate paste, it is necessary to filter before add in to avoid block of spray nozzle.

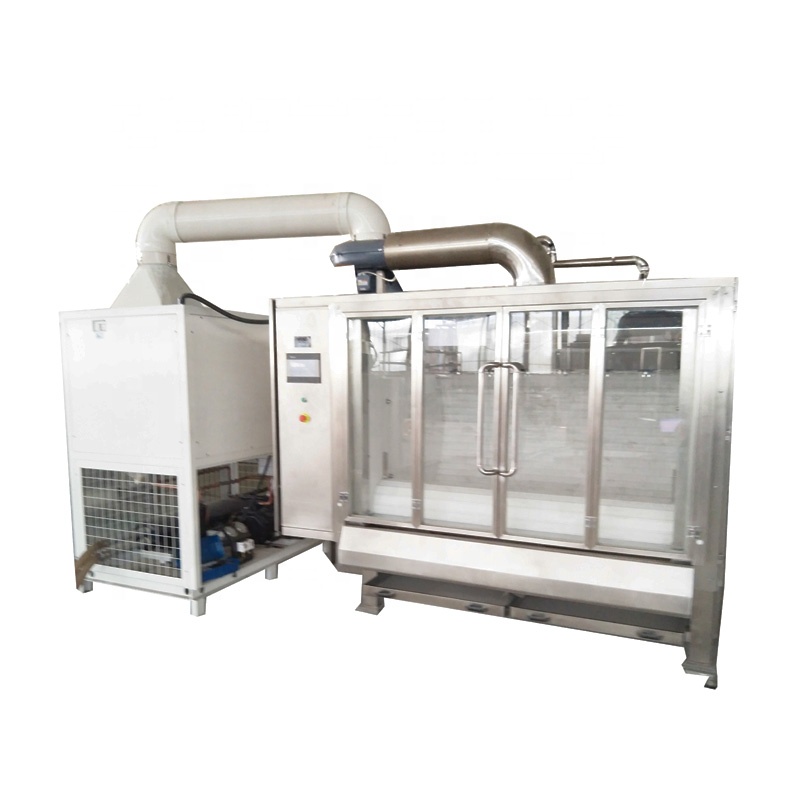

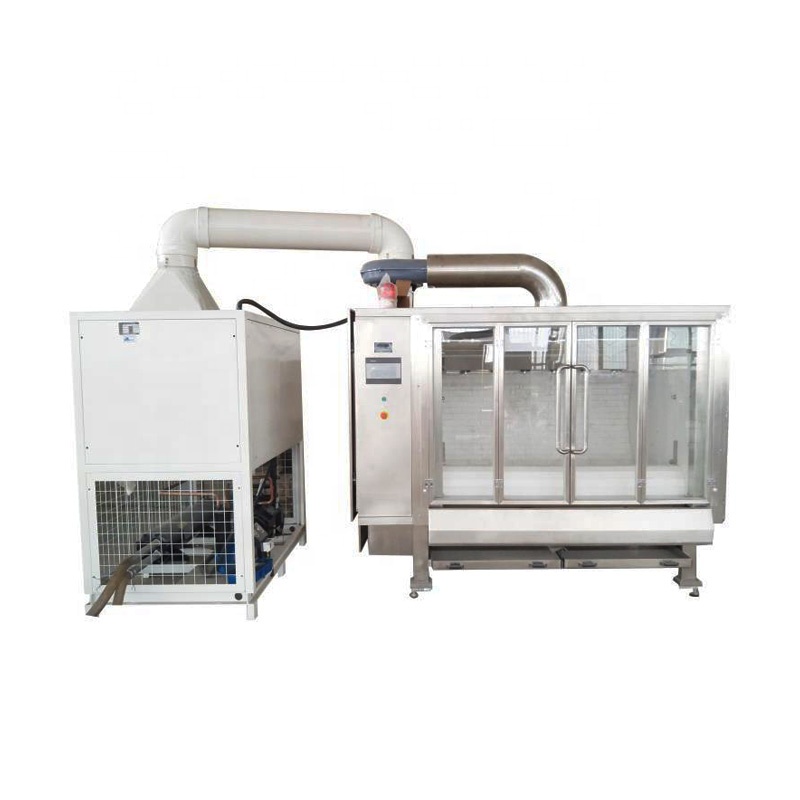

1. Chocolate coating  machine

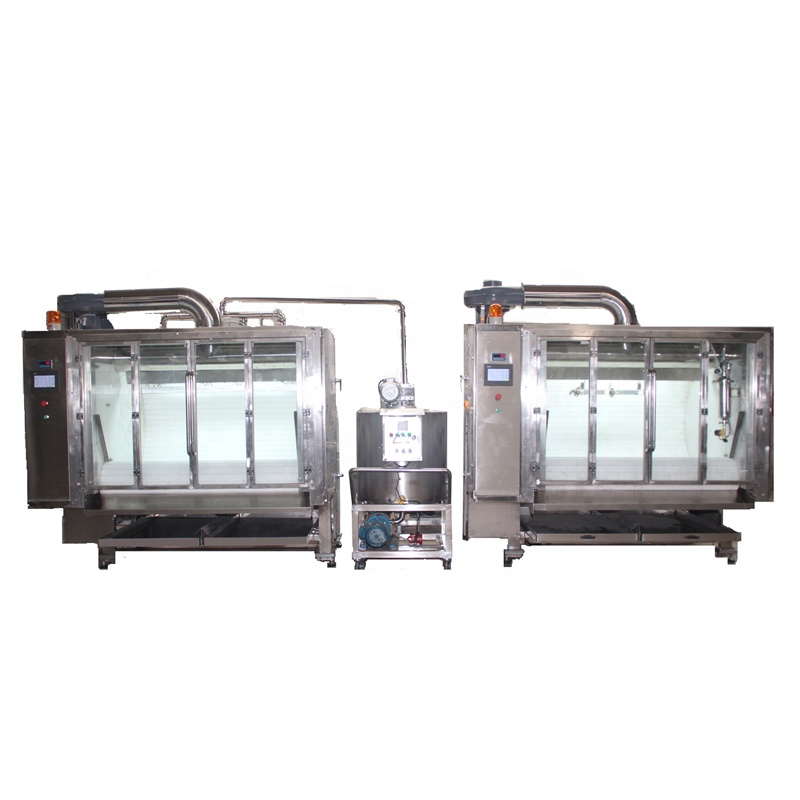

Main consist of 3 machines as following :

(1).chocolate coating machine

(2).chocolate material feeding system

(3).8P industrial refrigeration units(water cooling and forced air cooling)



(1).Main instruction of chocolate coating machine

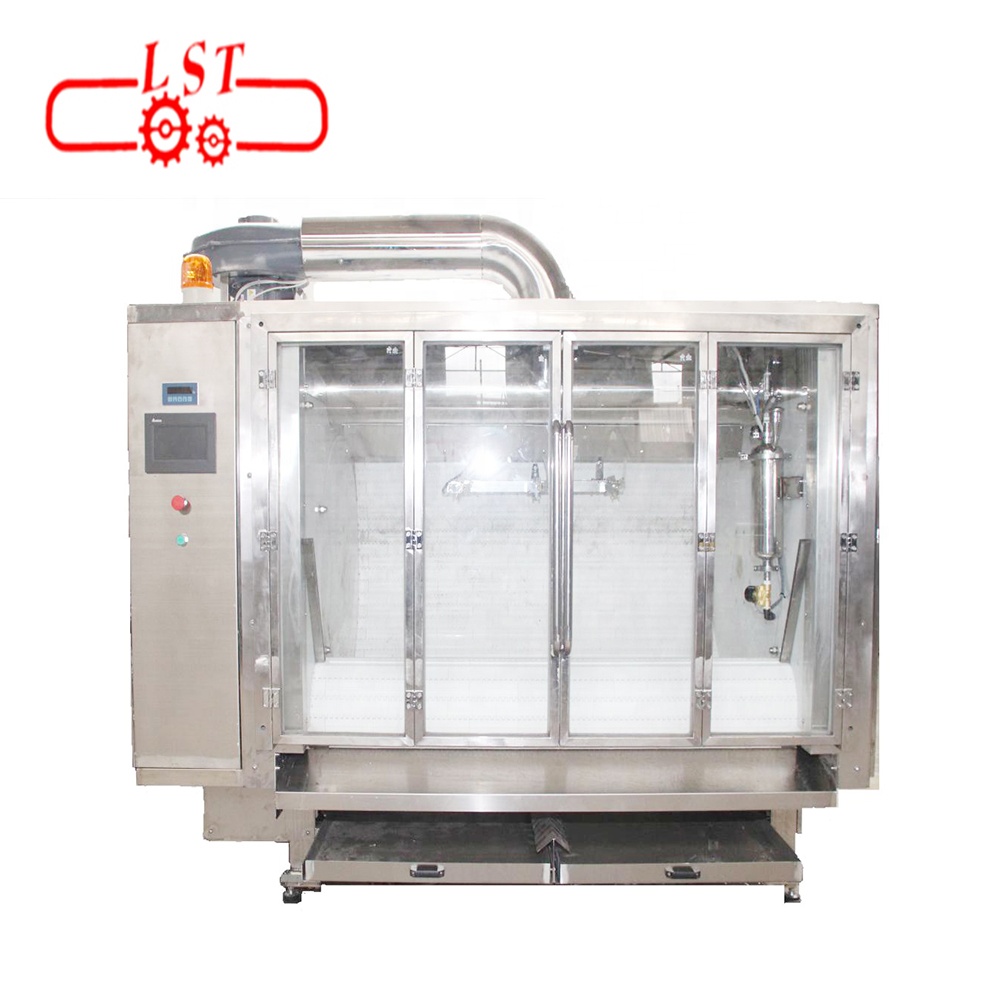

 Chocolate Coating Machine

1Adopts PLC control,can storage for all kinds of product’s formula.Program control production process.

2  According to different product’s features,can be set spray capacity and spray time by program.

3  Edible grade PU belt .Paste will rotary in high speed with function of belt.

4  Electrical weigh automatic weigh

5  Full automatic program control

6 Automatic feeding system main consist of chocolate storage tank(chocolate insulation cylinder),chocolate slurry pump,stainless steel interlayer insulating pipe.





Chocolate Polishing machine are mainly used in stuffed products with peanuts, almonds, raisin, puffed rice balls, jelly candies, hard candies, QQ candies etc.



For special product

1. For fragile products and puffed product, diameter ≥4mm, stuffed material ≤250 liters. The more fragile, the less material.

2. For products with corner and edges, round shape and consistent thickness is not suggested.

3. For adhesive product, put less adhesive material. In case materials stick together and effect the shaping.

4. For chocolate paste, it is necessary to filter before add in to avoid block of spray nozzle.

Hot Sale


Main category


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.
