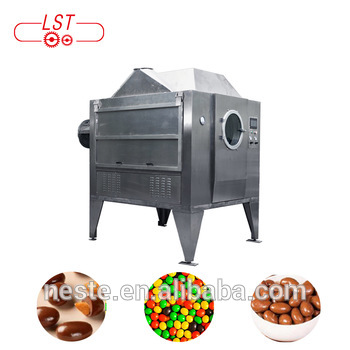

Full automatic chocolate m&m smarties ball making rotating chocolate coating machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
380V/415V/Customized
Power(W):
45kw
Dimension(L*W*H):
2300*1650*2300
Weight:
2000kg
Certification:
CE ISO
Warranty:
1 Year
Application fields:
Dairy products factory, Snack food factory, Bakery
Machinery Function:
Chocolate coating
Output product name:
Chocolate beans
Condition:
New
Application:
Chocolate
After-sales Service Provided:
Engineers available to service machinery overseas, Online support
Capacity:
500-600kg/batch

Full automatic chocolate sugar chocolate  polishingt and panning machine

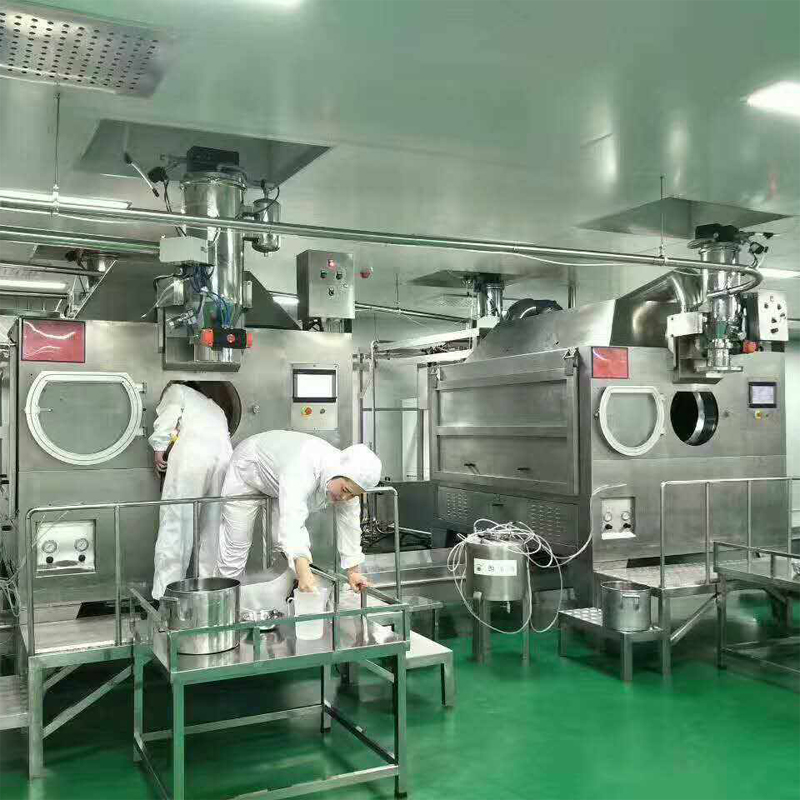

product display





Mode

500L

1000L

Capacity

400-600KG/batch

800-1000KG/batch

Total power

12KW

14KW

Rotary speed

2-12rpm

2-12rpm

Feeding window diameter

450MM

450MM

Rotary drum diameter

1600mm

1600mm

Rotary drum length

1500mm

1900

Air supply for air cylinder

0.4MPA

0.4MPA

Powder tank

100L

100L

Hot water tank

300L tank+6kw heating

300L tank+6kw heating

Power supply

380V-50HZ or customized

380V-50HZ or customized

Product Feature:

1. Automatic material loading, product processing and unloading.

2. Automatic syrup spray,powder spray and powder dust removal.

3. Automatic cleaning,drying and dehumidification.

4. Enclosed space, temperature and humidity controllable, no contamination.

5. Machine is capable of chocolate coating as well as crispy sugar coating.

6. Machine has been wildly used in foods and pharmaceuticals industrial as well as military industrial.



Product details



Product Details

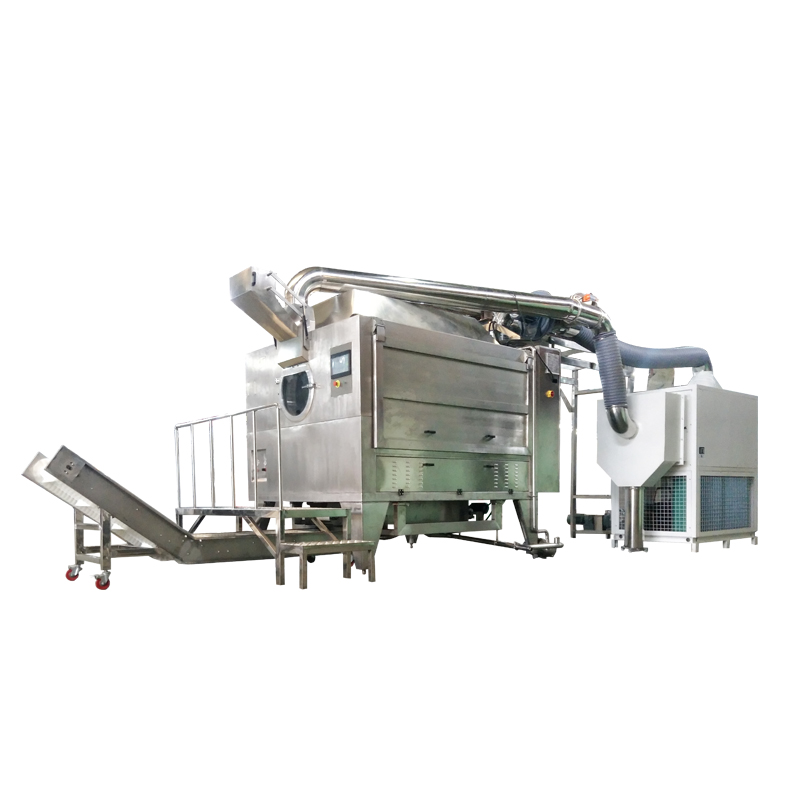

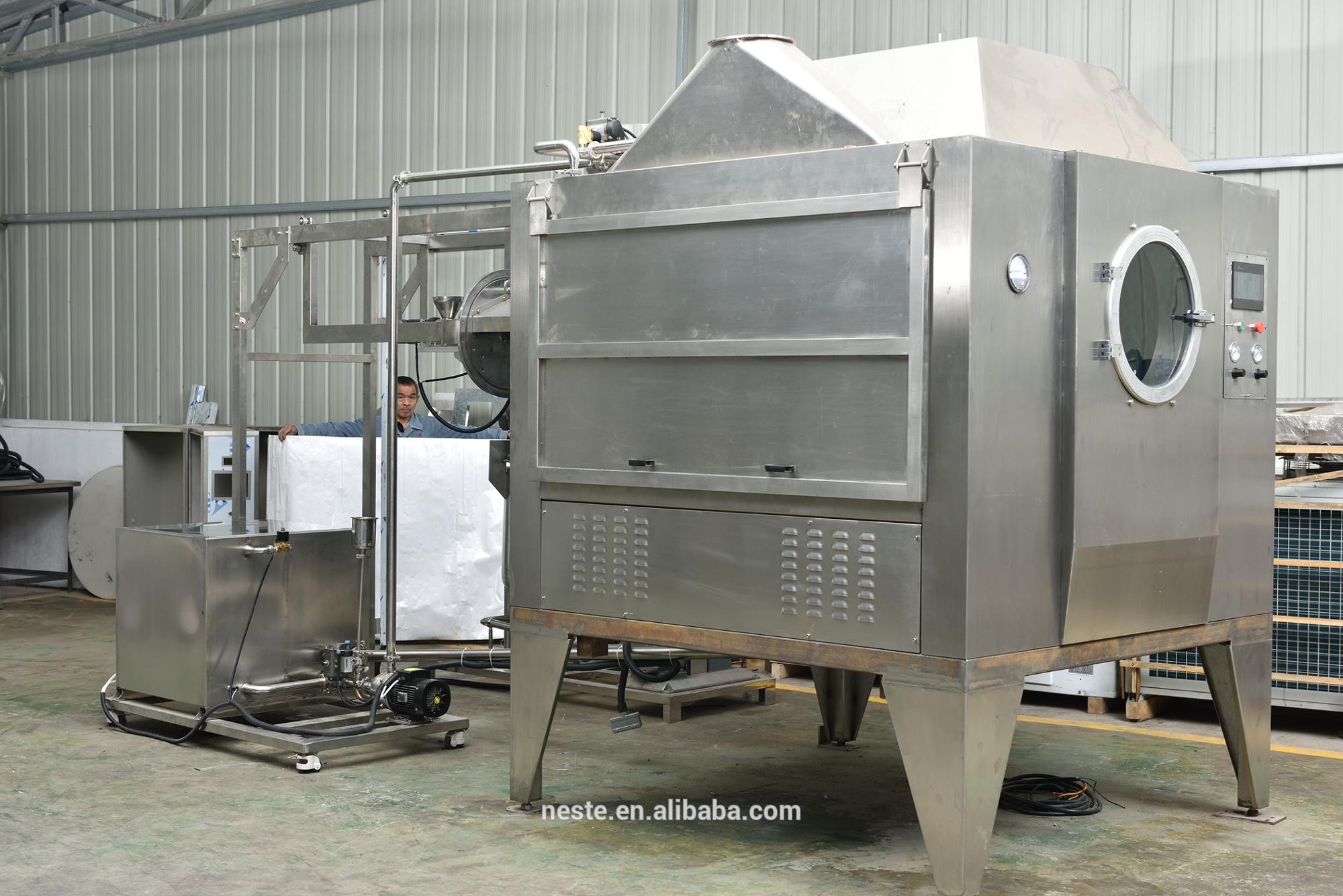

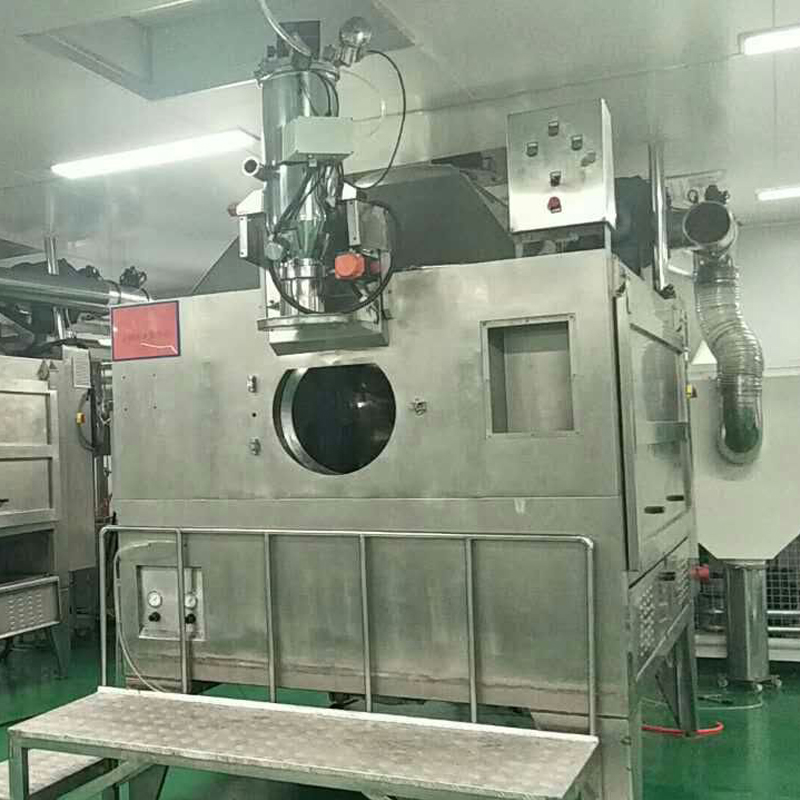

Rotary drum Coating / Polishing machine main unit

1) Spray system: Chocolate/sugar syrup

1.Six sets of special high pressure chocolate/ sugar syrup sprayer with anti-block device.

2.Inter-layer water heated temperature control system.

3.High pressure air nebulization of sugar syrup or chocolate.

4.Quick-wear part: Air cylinder of anti-block system.



2)Control system: Siemens

1.Frequency converter: YIQU.

2.Quick-wear part: Relay and switch.



3)Drive system

1.Main motor: KOR-30-4KW.

2.Rotary drum: 4mm thick SSS304, gear drive.

3.SSS guiding plate, easy assembling and dissembling.

4.Quick-wear part: None.



4)Unloading system

1.Airtec air cylinder control.

2.Quick-wear part: None.

Application

The third generation of Full automatic Drum type sugar coating and polishing machine is mainly used in food industrial. It has been wildly used in chocolate and sugar coating for different kind of candies.







Contact Supplier


HOT SALE



Main category


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.

Delivery Clause
1. The Equipment will be collected from the Seller’s factory by Buyer, or will be delivered by Seller on agreed terms.
2. Leading time is usually 30-60 working days.
