High quality industrial automatic chocolate press moulding machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Applicable Industries:
Food & Beverage Factory
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
380V Or Customized
Power(W):
14kw
Dimension(L*W*H):
2700*1200*1650
Weight:
500kg
Certification:
CE ISO
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Application fields:
Snack food factory
Machinery Function:
making chocolate
Raw material:
chocolate
Output product name:
chocolate
Condition:
New
Application:
Chocolate
Name:
Full Automatic Servo-controlled Chocolate Ball Molding Machine
Customize:
Support

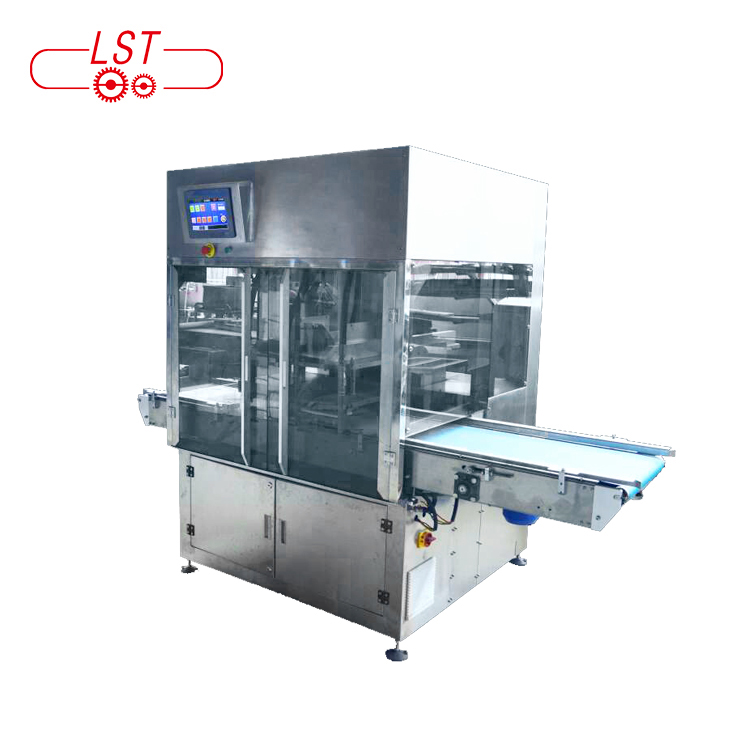

High quality industrial automatic chocolate press moulding machine


product display




Product parameters


1.Cold press is a new high tech machine that produces high quality chocolate cup products.

2.The specially treated press head will not produce any water so the chocolate will not stick on the press head when press into the chocolate. And it is easy and fast to change the press head for product switch or cleaning.

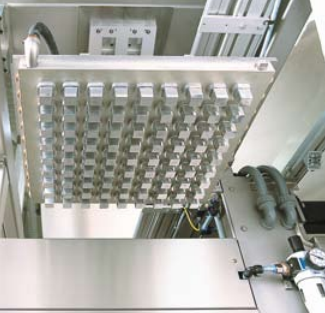

Press Head



1.The press head is aeronautical material, which makes sure the good temperature transfer performance. And at the same time, the press head will not stick on the chocolate, it make the demoulding much easier.

2.Special mechanism of the press head makes it easy to change the pressing head for product switch.

3.There are 2 sets of cold press head,each press head can produce maxim 96 products at one time, so 2 times of press head will produce as much as 192 chocolate cups.

4.The cold press machine will need to have a 5HP water chiller to make the temperature of the press head to -10℃–20℃.

5. It presses 3-10 seconds to make the chocolate cup.usually makes 6-14 moulds/min



Main technical parameters:

Dimensions:2000*1500*1850

Productivity:6-10 moulds/mins, single mould.

Thickness of chocolate cup:2mm-3.5mm

Water Chiller:5P water chiller

Dehumidifier:3P
Total Power:12kw

Air Source:4MP

Power supply:380V-50HZ/

Total weight:800kg

Mould size:470-225-30mm



Water Chiller:1100-1500-1600mm.

The chilled water will circulate in the whole system to make the press head reach as low as -20 ℃


Dehumidifier:3P, Controls the humidity in the cold press machine







Hot Sale


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.
