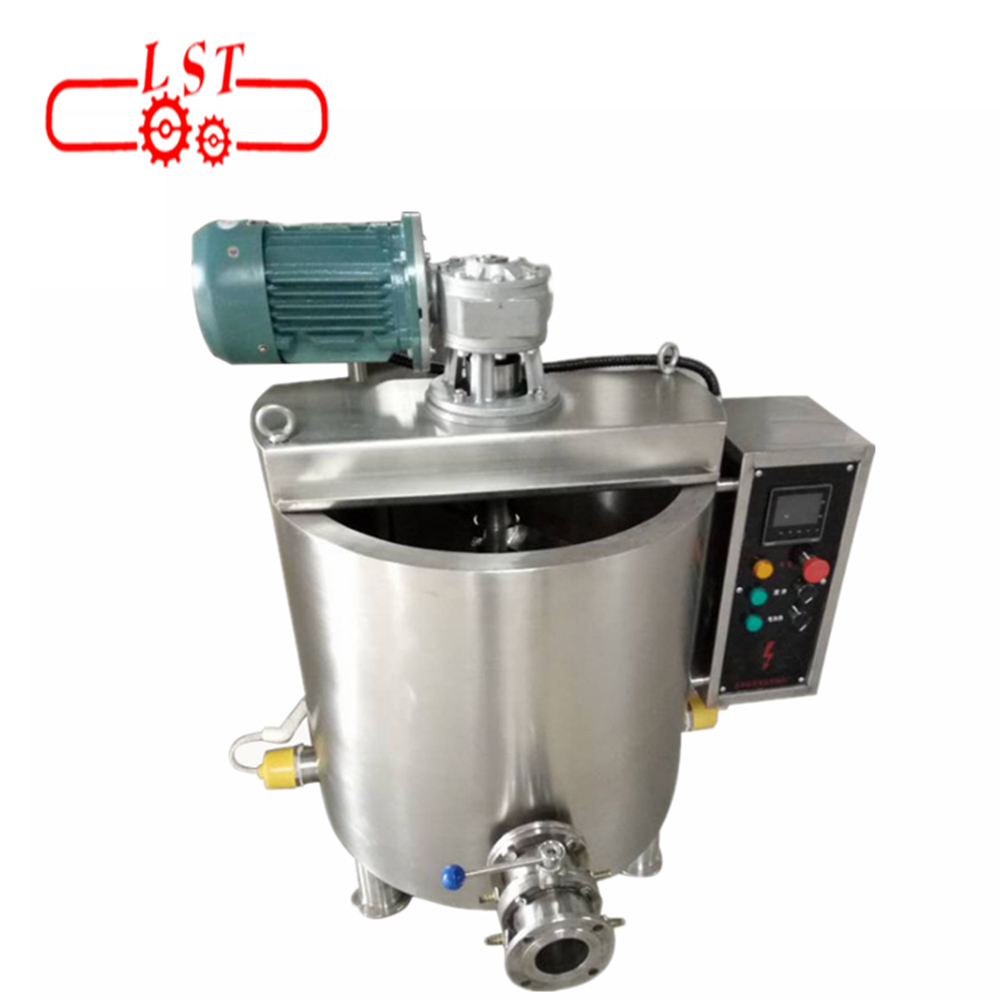

Industrial Professional Small Chocolate Melting Tempering Machine Holding Tank
product detail
1, temperature adjustment
2, melting and storage function
3, with scraper, mixer and stir device
Name |
Model |
Main use |
Volum |
Voltage |
Over Dimensions |
Mini melting tank |
BWG04 |
Melt,storage,Heat preservation |
4KG |
Single-phase,220V-240V |
240*295*230mm |
Mini melting tank |
BWG08 |
Melt,storage,Heat preservation |
8KG |
Single-phase,220V-240V |
410*295*230mm |
Mini melting tank |
BWG18 |
Melt,storage,Heat preservation |
18KG |
Single-phase,220V-240V |
605*350*230mm |
Tempering tank |
TWG75 |
Tempering&Mixer |
75KG |
3-phase,415V |
900*1400mm |
Tempering tank |
TWG150 |
Melt,storage,Heat preservation |
150KG |
3-phase,415V |
900*1500mm |
Heat preservation tank |
BWG250 |
Heat preservation&Mixer |
250KG |
3-phase,415V |
1100*800*1600mm |
1, temperature adjustment
2, melting and storage function
3, with scraper, mixer and stir device
4, stainless steel
5, digital temperature control system
6, with water interlayer heating equipment, can be used for external heating and heat preservation

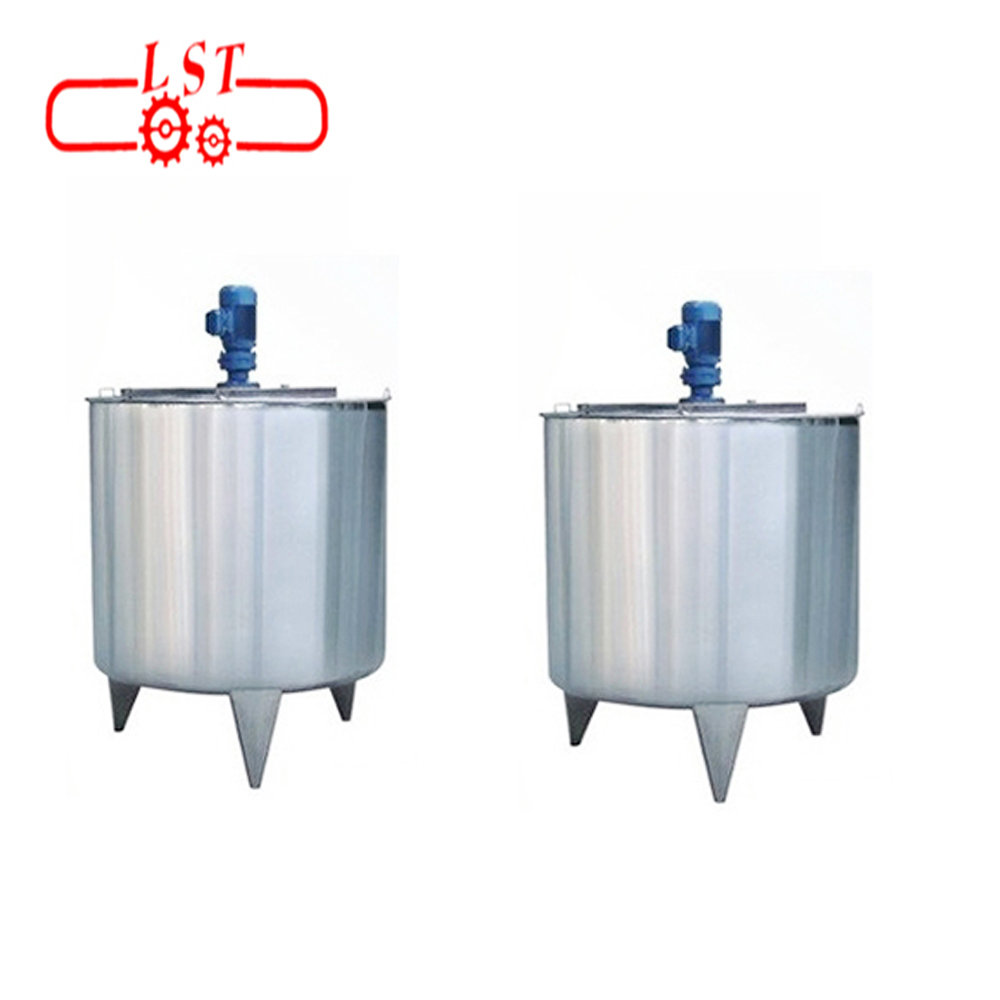

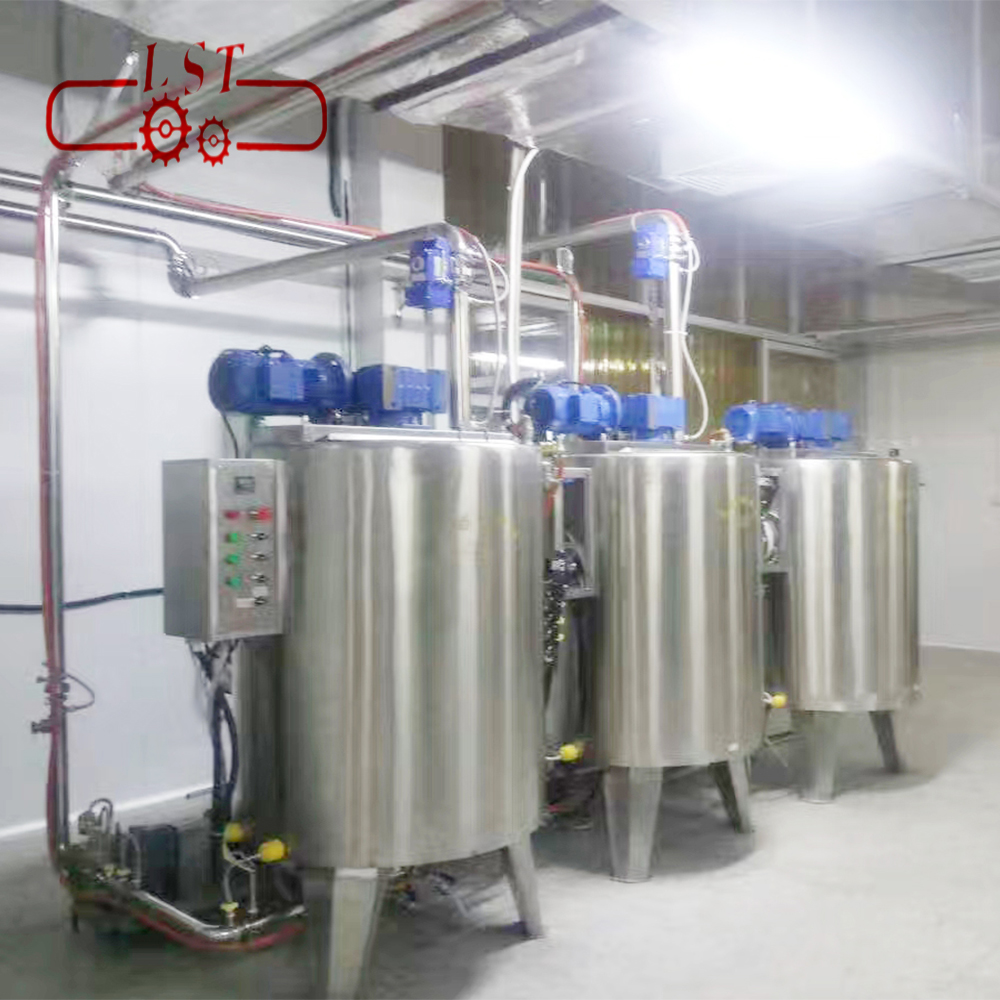

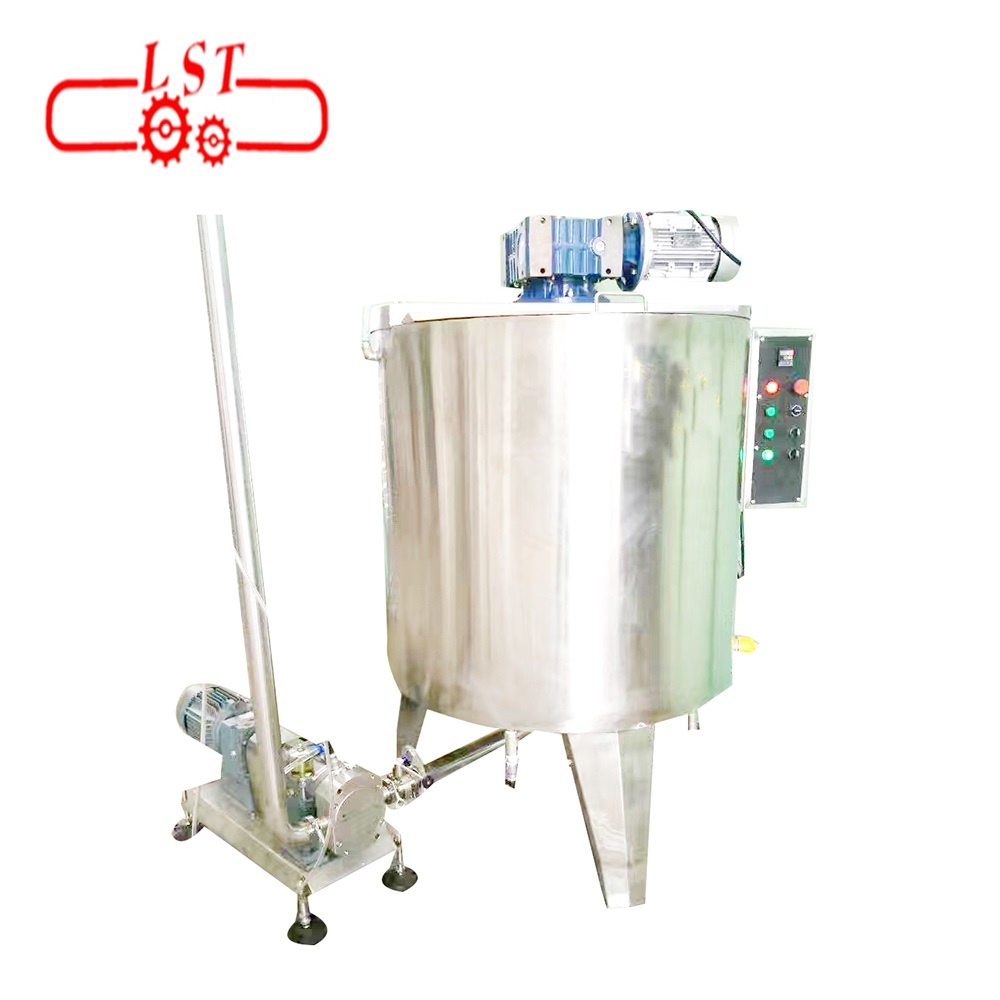

Our chocolate melting and tempering mixer machine tank from 75kg to 6000kg, and we also can specially made according to your special needs. It can be used for melting, storage and heat maintaining for chocolate, axunge and similar coating materials.
The stainless steel tank has a sandwich with constant temperature control, and a strong mixing and scraper device inside.
Other components including a water interlayer heating equipment, can be used for external heating, heat preservation and insulation.
Model |
Max capacity |
Heating style |
Power |
Power supply |
Shell size |
Net weight |
Price |
LSTTW10 |
10kg/batch |
electrical heating |
1.2kW |
Single phase/220V |
560 x 600 x 550mm |
40kgs |
USD2500/ FOB SHANGHAI |
LSTTW30 |
30kg/batch |
electrical heating |
3kW |
Single phase/220V |
900 x 750 x 950mm |
180kgs |
USD4000/ FOB SHANGHAI |
LSTTW60 |
60kg/batch |
electrical heating |
4.5kW |
Single phase/220V |
1100 x 800 x 1150mm |
260kgs |
USD6500/ FOB SHANGHAI |
If need the water chiller to provide cooled water to LST-60 for tempering function (for pure chocolate tempering), the price for the water chiller is:USD3500.-/ set.
Within 30 days upon the receipt of the down payment
50% by T/T as the down payment, the balance shall be paid by T/T before shipment.
The equipment layout design, assembling and installation, start-up and local team training will be FREE. But if the machine is exported to other countries, the buyer should be responsible for the round-air tickets, local transportation, board & lodging, and US$80/day/person for the pocket money to our technicians.
The seller guarantees the quality of the products for 12 months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery, the buyer will replace the parts at the seller’s cost. If the defaults are aroused by the defaulted operations, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
The buyer should prepare sufficient electric power, water, which are suitable to be connected to our machinery before the arrival of our machinery.
10 days.
Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.
Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.
We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.
3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.
2. Leading time is usually 30-60 working days.
