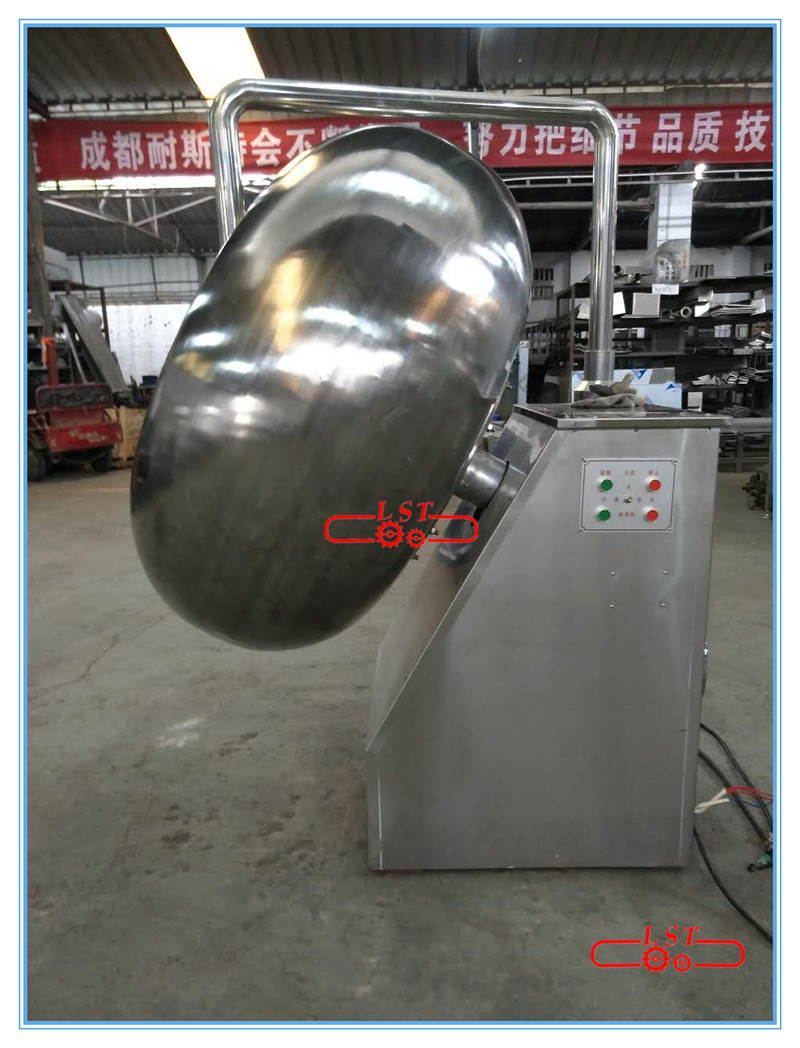

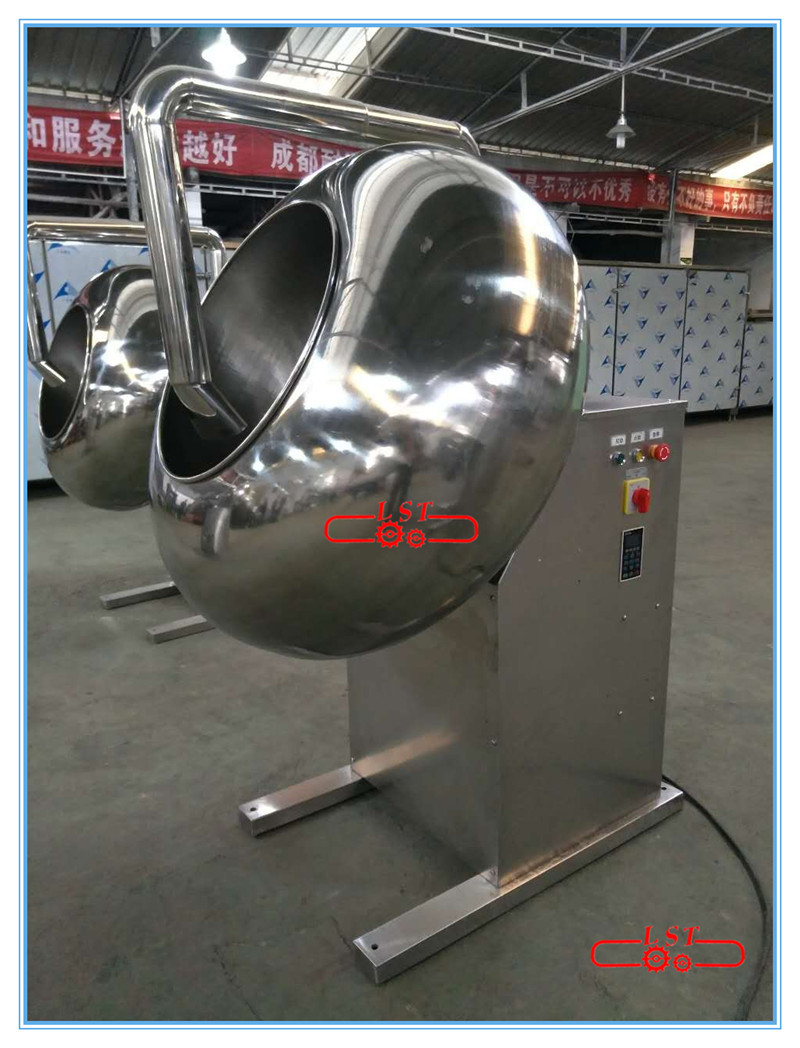

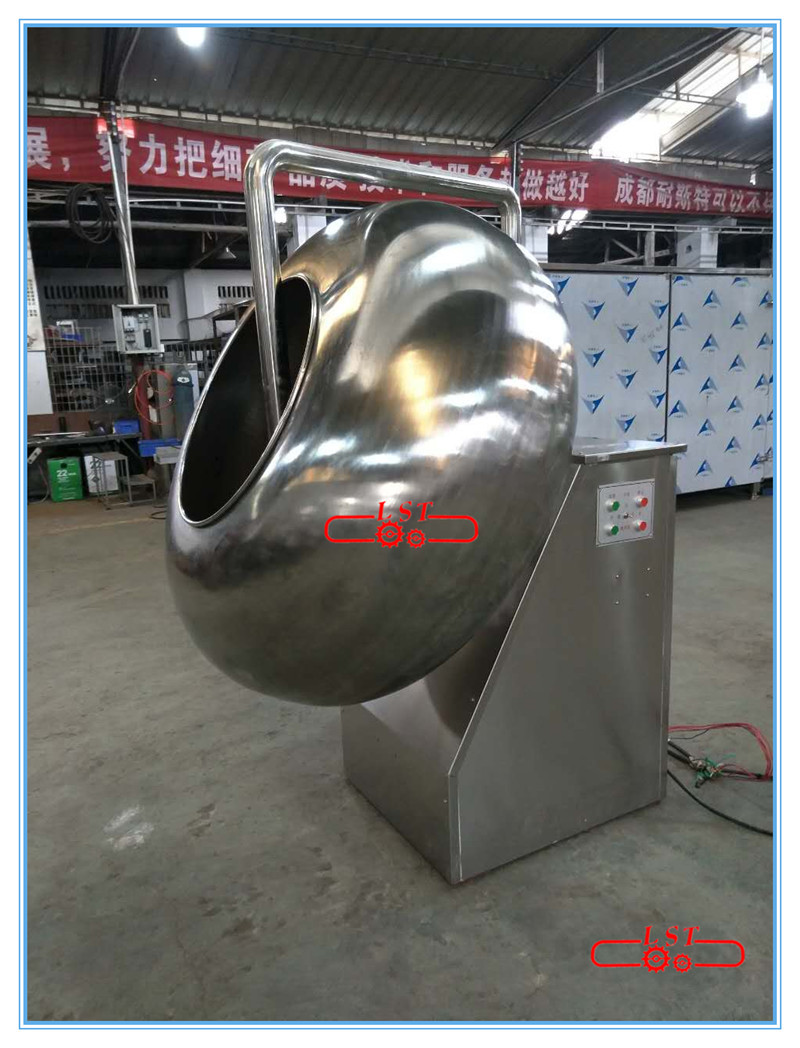

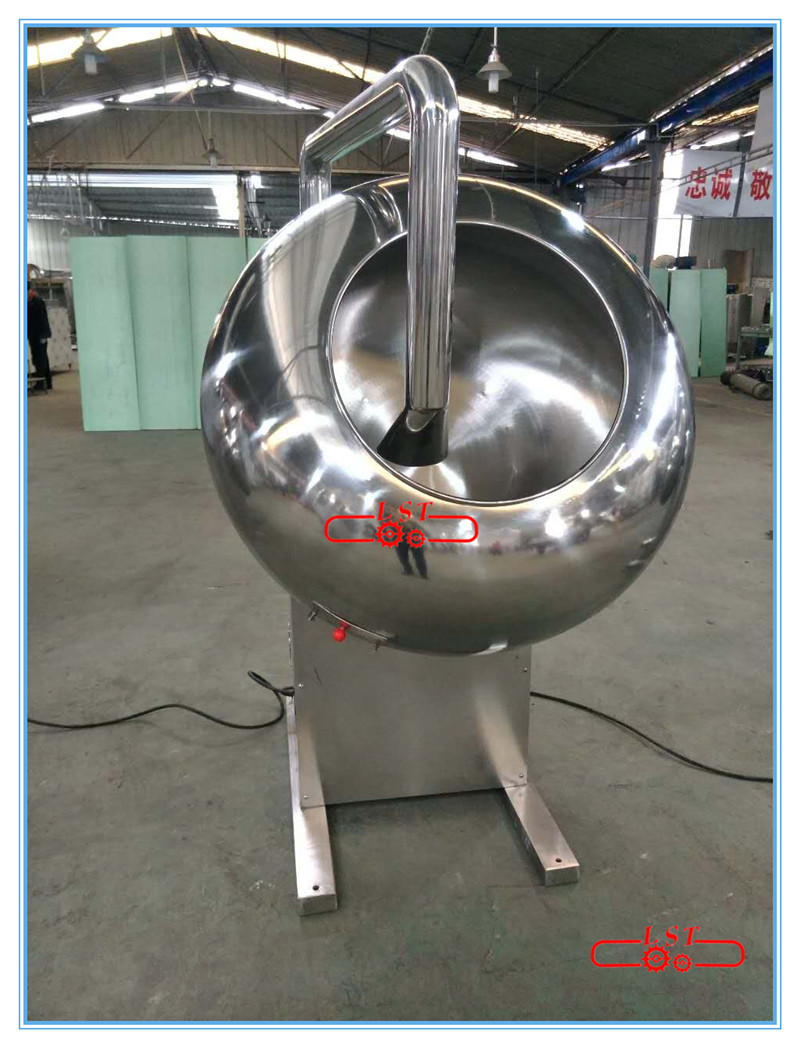

Mini sugar peanut nut chocolate pan polishing machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Model Number:
PGJ 500A/PGJ 1250A
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
220V
Power(W):
100/4500
Dimension(L*W*H):
530*630*850mm/1200*1250*1630mm
Weight:
95/280
Certification:
CE Certificate
After-sales Service Provided:
Engineers available to service machinery overseas
Condition:
New
Warranty:
1 Year
Application:
CANDY

Mini sugar peanut nut chocolate pan polishing machine


PGJ1250A Polishing Pot











1.Main Performance and Structural Features:

This machine is used for sugarcoat tablets and pills for pharmaceutical and food industries.It also can be used for roll-fry beans,nuts or seeds.The leaning angle is adjustable, and electrical stove or gas stove can be placed underneath as heating device.

Attached device include:

a.Single electrothermal blower, the wind outlet pipe(adjustable wind volume) can be put into the pot as heating or cooling.

b.Heat(temperature) can be adjusted.

c.Speed-adjustable motor

2.Scope of Application:

This machine can be used for polishing chocolates with various shapes,such as round, oblate, oval,sunflower seed shaped,cylindrical etc, making it glossy,and shining with lustre on the surface. Moreover, chocolates shall look more delicate after being polished.The cylindrical chocolates are usually wrapped by multi-colored aluminum foil,the wrapping paper fits better with the chocolate after being polished,the geometrical structure becomes clearer. This polishing pot also applies for enrobing nubbly products such as flour-coated peanuts, hard/soft candies,bubble gums,pills,etc.

3.Main Technical Parameters

Name

PGJ-400A

PGJ-600A

PGJ-800A

PGJ-1000A

PGJ-1250A

PGJ-1500

Pot Diameter

400

600

800

1000

1250

1500

Rotating Speed

32

32

28

28

28

28

Main Motor Power

0.55

0.75

1.1

1.5

3

5.5

Blower Power

60

60

250

250

250

250

Heating wire power

1

1

2

2

3

6

Productivity

6kg/batch

15kg/batch

30-50kg/batch

50-70kg/batch

70-120kg/batch

100-200kg/batch

Dimension

600*550*880

700×700×1100

925*900*1500

1100*1100*1600

1200*1250*1800

1200*1500*2000

Net Weight

80

120

230

250

300



Contact Supplier


HOT SALE


Main category


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.

Delivery Clause
1. The Equipment will be collected from the Seller’s factory by Buyer, or will be delivered by Seller on agreed terms.
2. Leading time is usually 30-60 working days.
