Professional Manufacturer Full Automatic Chocolate Making Machine Chocolate Moulding Line

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New, New
Applicable Industries:
Food & Beverage Factory
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
330/380V
Power(W):
24
Dimension(L*W*H):
14500*1200*1800mm
Weight:
4000kg
Certification:
CE
Warranty:
1 year
Application fields:
Snack food factory
Machinery Function:
moulding
Raw material:
chocolate
Output product name:
chocolate
Application:
Chocolate
After-sales Service Provided:
Engineers available to service machinery overseas, Field installation, commissioning and training
Model Number:
LSTJ510

Professional Manufacturer Full Automatic Chocolate Making Machine Chocolate Moulding Line

Product parameters




Line Type

Single Depositor

Double Depositors

Triple Depositors

Speed

12-25 moulds/m

12-25 moulds/m

12-25 moulds/m

Depositor

Fixed or

mobile One-Shot depositor

Fixed or

mobile One-Shot depositor

Fixed or

Mobile One-Shot depositor

Filling Rate

≤70%

≤70%

≤70%

Mould-Lifting

Support,Optional

Support,Optional

Support,Optional

Remote Debugging

Support,Optional

Support,Optional

Support,Optional

Pull-Out Depositor

Support,Optional

Support,Optional

Support,Optional

Mould Amount

340pcs

355pcs

375pcs

Mould Size

510-225-30/300-225-30mm

510-225-30/300-225-30mm

510-225-30/300-225-30mm

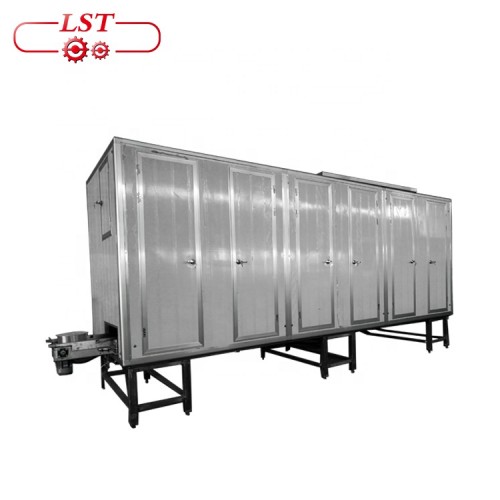

Cooling Tunnel

0-15℃,20HP,17KW

0-15℃,20HP,17KW

0-15℃,20HP,17KW

Total Power

42kw

52kw

60kw

Weight

3300kg

3900kg

4500kg

Dimensions

13700× 1200 × 1800

16000× 1200 × 1800

18360× 1200 × 1800

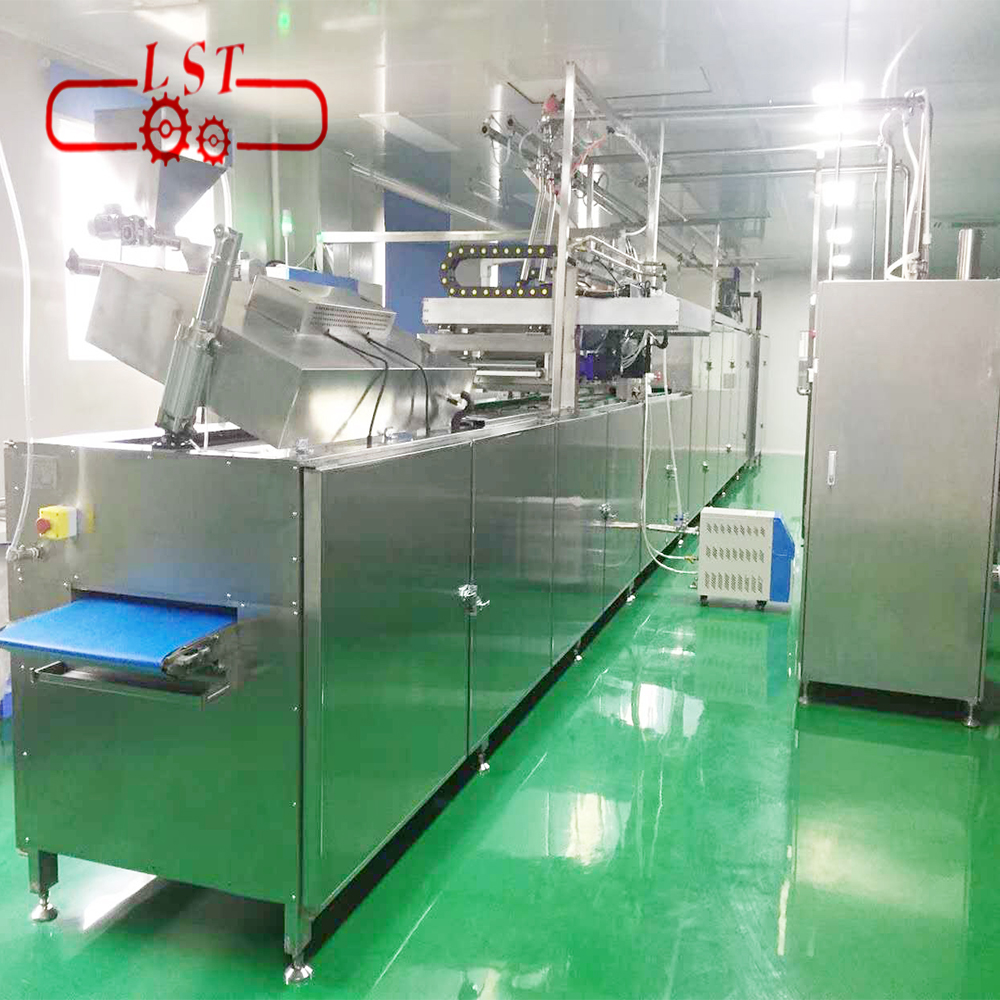

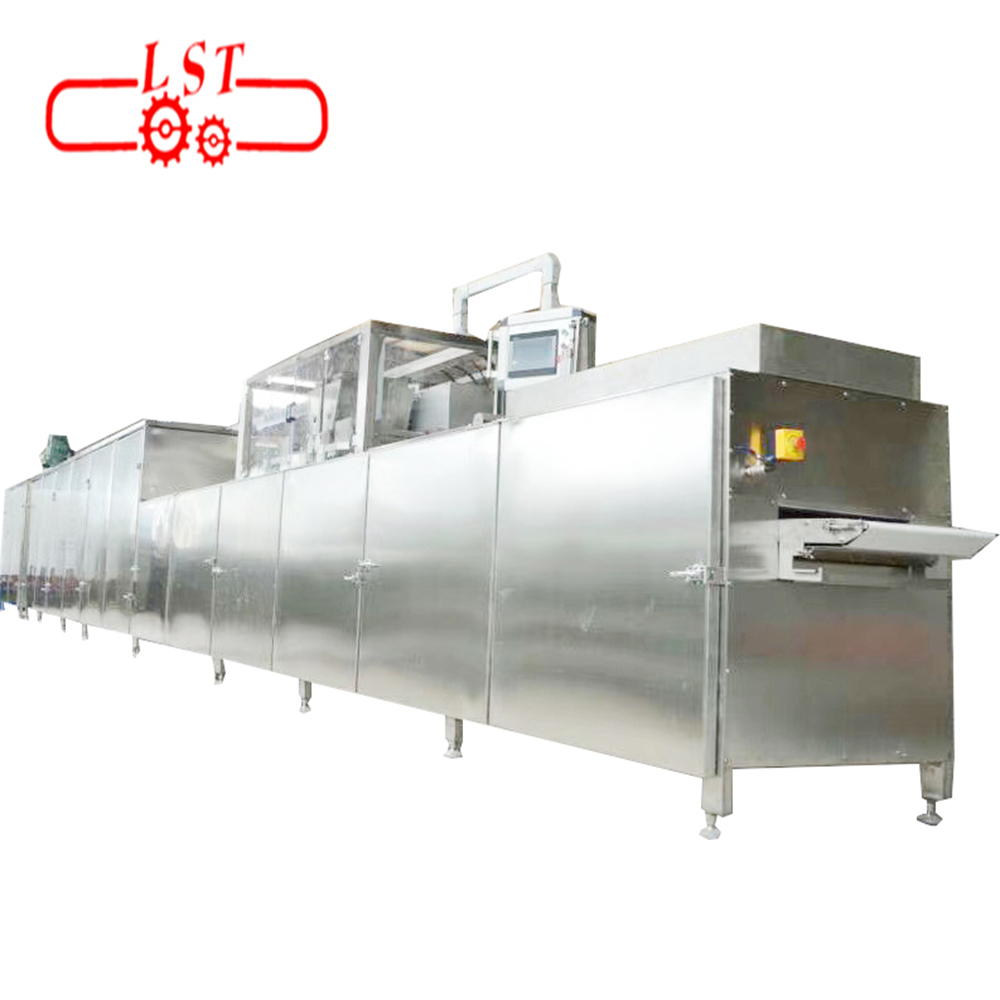

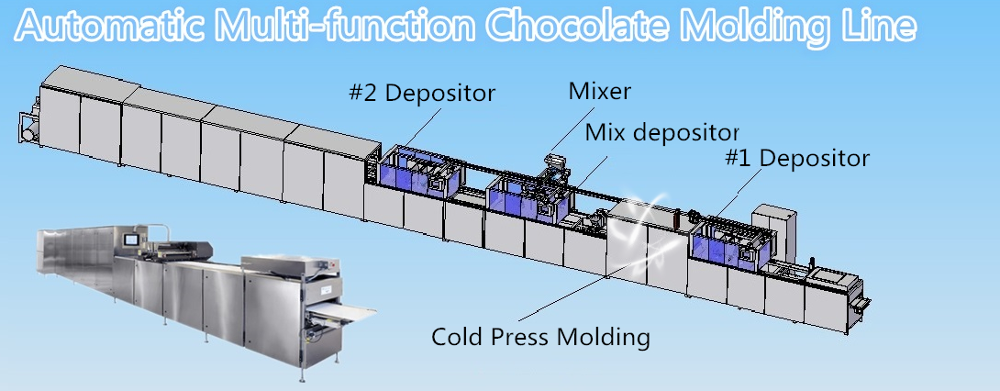

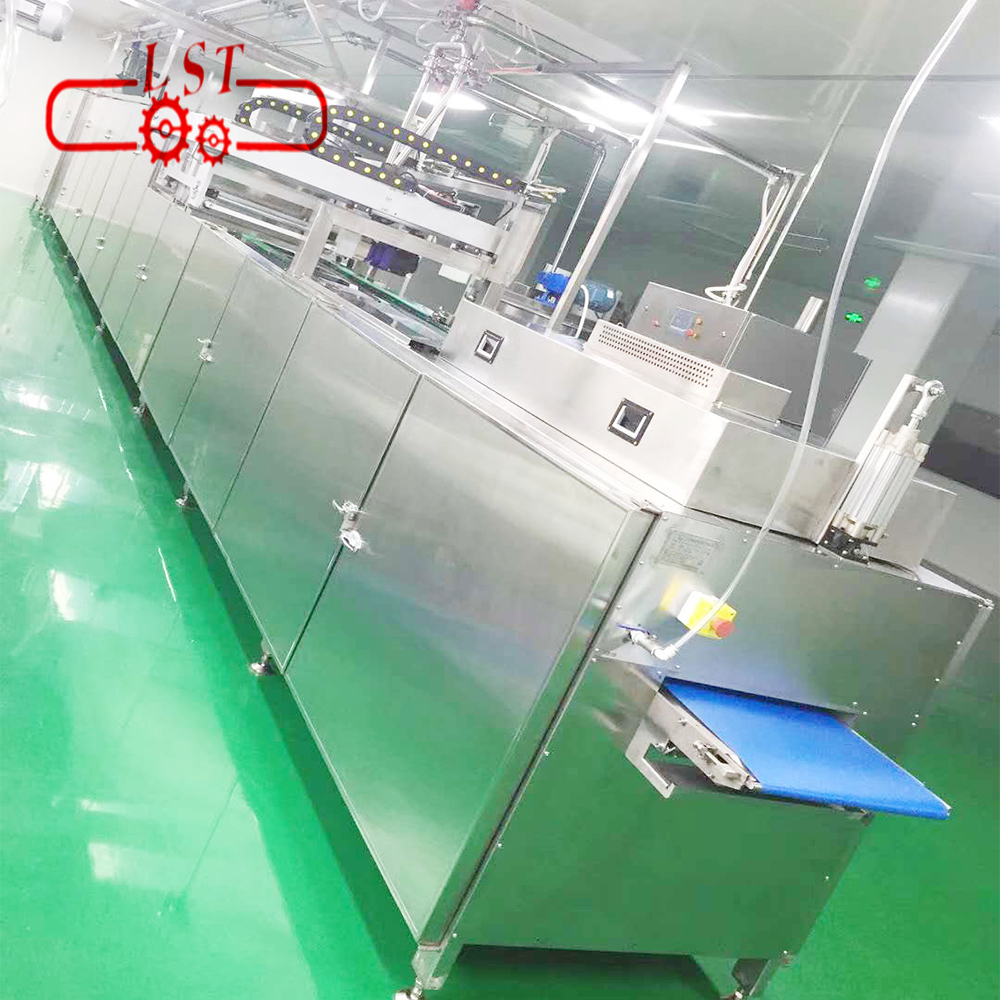

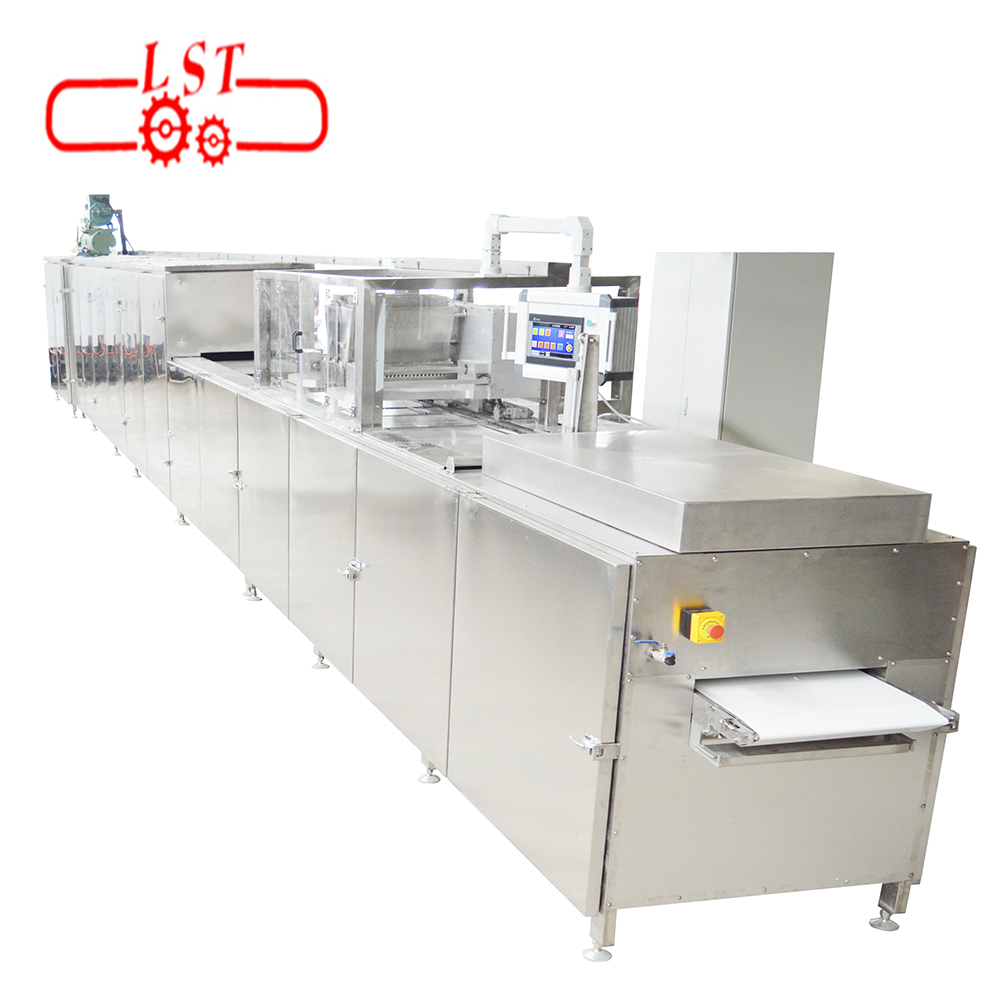

This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.







There are many other add-on devices,such as auto mould loader,sprinkler,biscuit feeder,Conche, tempering machine,decorating machine and many more. You can add whatever part you need to make it a full automatic production line and produce different kinds of products.




Hot Sale


Main category


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.

FAQ




1. Payment: T/T in advance. 40% down payment, 60% against acceptance from customers

2. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

3. Customization is available.

5. What’s the information should I let you know if I want to get a full quotation?

Bag type, size, weight of material, type of material, thickness, printing, colors, quantity

6. When we create our own artwork design, what kind of format is available for you?

The popular format: AI, JPEG, CDR,PSD, TIF

7. Wooden case packed with machine and English manule

8. Transformer is provided

9. Technical manual in English is provided

10. The machine is stainless steel

11. In the line of exporting packing material
