pure chocolate molding machinechocolate vibration table machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
380V
Power(W):
34
Dimension(L*W*H):
18000*1500*1900mm
Weight:
4000kg
Certification:
CE ISO
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Application fields:
Snack food factory
Raw material:
Nuts
Condition:
New
Application:
Biscuit

Pure chocolate molding machinechocolate vibration table machine


Product parameters


Model

LST-1000

Production capacity( kg/shift)

200~700

Speed of stroke( n/min)

6~12

Mould heating and fan power

6kw

Mould temperature

24~45

Vibrating motor power

1.1kw

Vibrating time

30~60s

Depositing motor power

1.5kw

Stirring motor power

0.5kw

Circulating hot-water power

4.5kw

Circulating pipe water pump power

0.5kw

Mould size and numbers needed

300x225x30mm

100pieces needed

Compressed air consumption

2.5m3/min

Compressed air pressure

0.65Mpa

Gross weight (kg)

800

Dimension

1.Mould heating unit:

L1700xW1045xH950mm

2.Depositing unit:

L1575xW1045xH1130mm

3.Vibrating unit:

L1500xW1045xH850mm

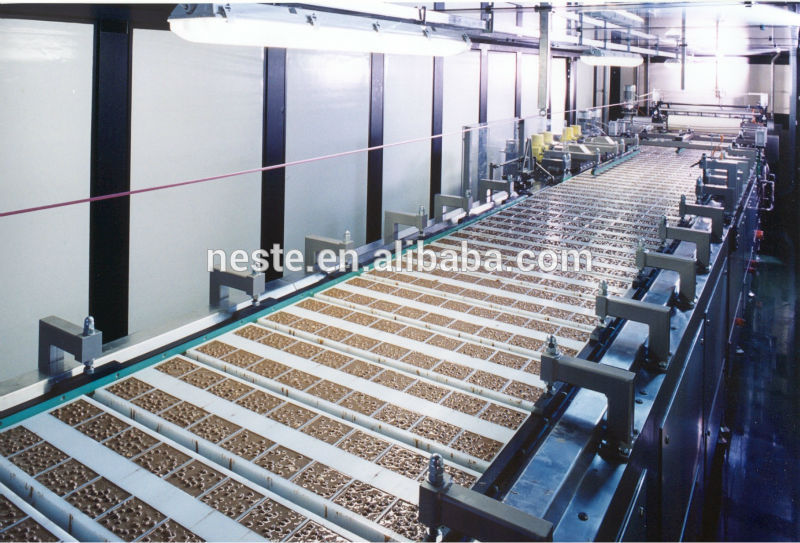

This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.


Main Features & Advantages

1.Full automatic PLC controlled,highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.

2.The Beckhoff Remote Control System from Germany enables us to modify system parameters,diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.

3.There are a lot of add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler,etc. Customers can choose these add-on devices accordingly and add or  change the add-on devices for new product whenever needed.

4.The high configuration production line can be combined by all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.

5.There are single depositor,double depositor or more to meet different product production need. The special mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.

6.To produce different kinds of chocolate products, you only need to change a depositor or the chocolate

syrup distribution plate that used with the depositor.

7.The mobile depositor enables the mobile mould-follow-depositing function, which greatly increase the output of the production line by 20%.

8.With plastic guide-rail protection, the chain will not contact with spilled chocolate,which meets the overall food hygiene requirements.






There are many other add-on devices,such as auto mould loader,sprinkler,biscuit feeder,Conche, tempering machine,decorating machine and many more. You can add whatever part you need to make it a full automatic production line and produce different kinds of products.

Hot Sale


Main category


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.

Delivery Clause
1. The Equipment will be collected from the Seller’s factory by Buyer, or will be delivered by Seller on agreed terms.
2. Leading time is usually 30-60 working days.
