SS304 Industrial snickers bar chocolate cereal bar production line

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Retail, Food Shop, Food & Beverage Shops, Advertising Company
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
380V/415V/Customized
Power(W):
24kw
Dimension(L*W*H):
18000*1500*1900
Weight:
4000kg
Certification:
CE ISO
Warranty:
1 Year
Application fields:
Flour mill, Dairy products factory, Snack food factory, Bakery
Machinery Function:
Produce chocolate cereal bar
Raw material:
Milk, Wheat, Nuts, Flour
Output product name:
Chocolate cereal bar
Condition:
New
Application:
Chocolate cereal bar
After-sales Service Provided:
Engineers available to service machinery overseas, Field installation, commissioning and training
Capacity:
200-400kg/h

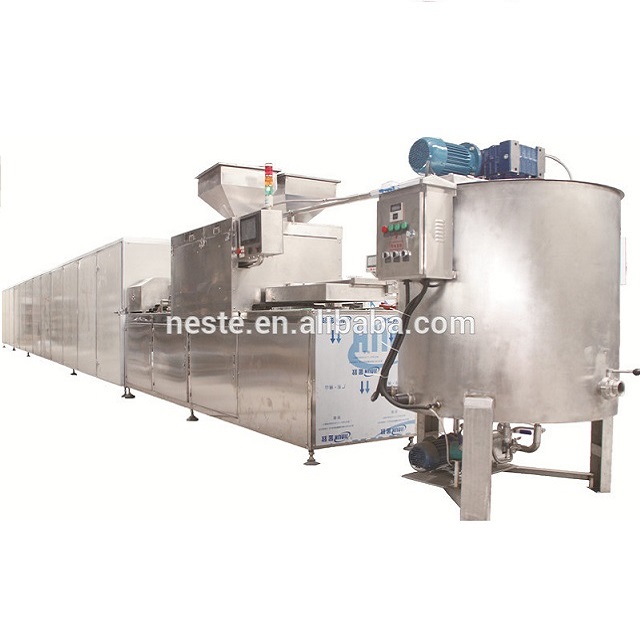

Industrial chocolate moulding line chocolate bar molding depositing machine

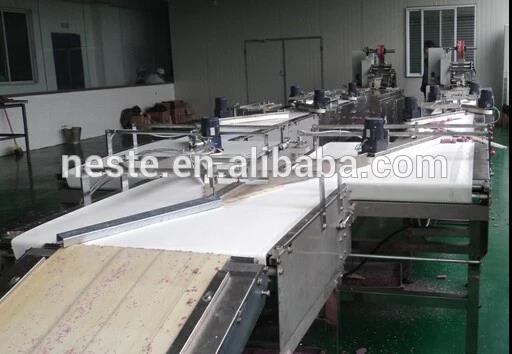

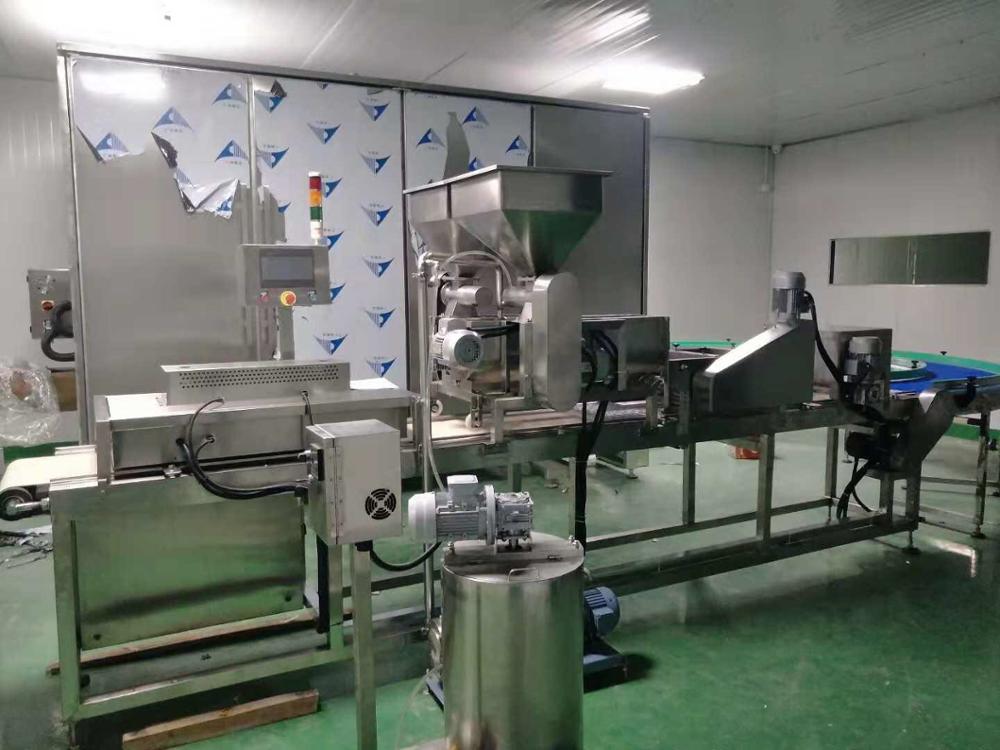

product display

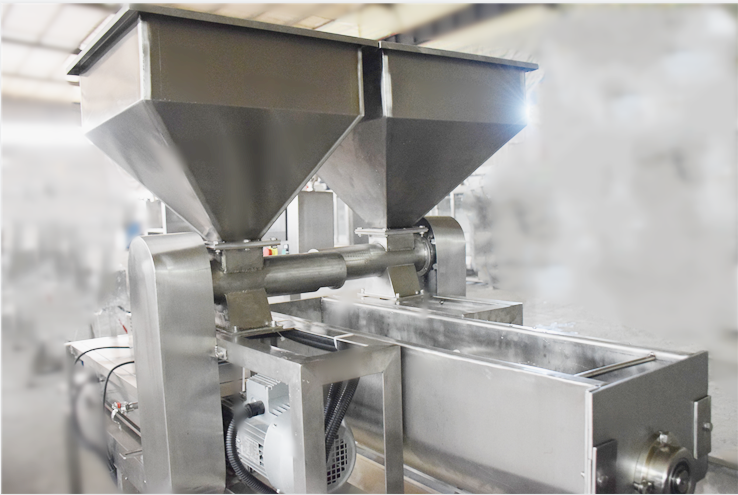

Product details

Specification

1.All the machines are made by stainless steel

 2. PLC Control. Man-Machine Touch Screen.

 3.easy operation, change the  Formula easily.

 4. Fit for  Crispy rice, peanut, Red beans truffles, green beans truffles  chocolate.

Technical parameters:

Production capacity: 2000-6000KG/shift(duty)

Total power:4.5KW

Air supply pressure:0.6Mpa

Overall dimension:4500×900×2500mm

Mould dimension:400×300×30mm(the moulds and the shapes of the products can be customized )

mMould output:10-13pieces/min

Full Automatics Working Steps

1)

 Feeding mould

2)

 Heating mould

3)

 Filling chocoate with oat materials

4)

 Roll Forming

5)

 Cooling

6)

 Demoulding

7)

 Packaging

Technical features:

1. PLC control, auto-frequency control

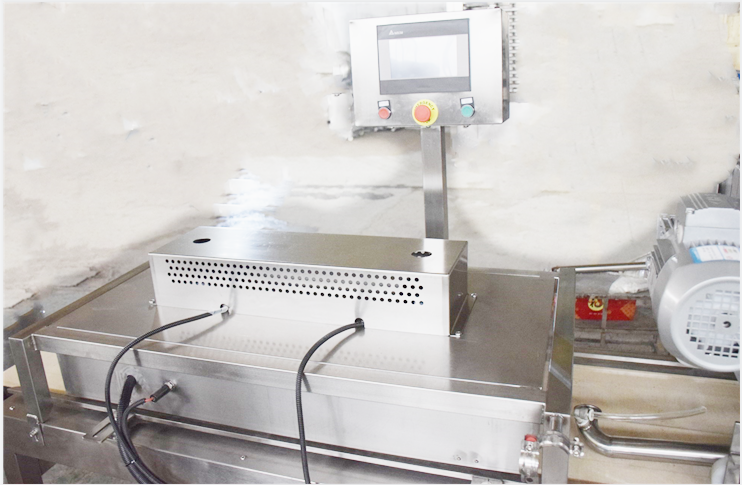

2. Man-machine touch interface to detect the levels of the liquid and solid material. Overload protection to alarm when there is something wrong, and to show it on the touch screen

3. Programming storage of the products to change the chocolate color and products every 15 minutes. More stable when running with the prescription

4. Separated heating and control system. The heating system keeps the chocolate in constant temperature when the control system is powered off, so the service life of the control system is longer.

5. It can mix chocolate, nut butter, fruit, or cereal with other particle food; the product loafs are varied and can be customized

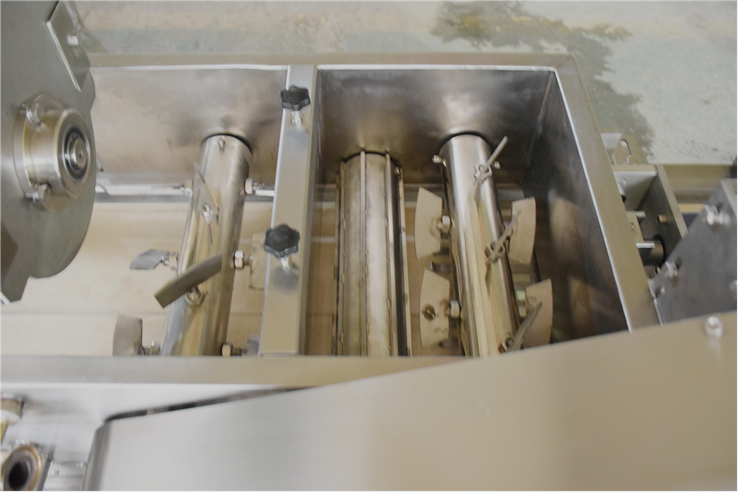

6. Equipped with 2 high precision cam rotor pumps to mix the material continuously. The batching system and the high precision cam rotor pumps can keep the stable proportion of the chocolate during producing

7. During the production, the mixing materials can be detected by the sensor, and supplemented by the transducer. The whole producing process is controlled by the sensor, and there is no need to stop.

8. Made of stainless steel ,and matched with special accessories like SMC non-inductive magnetic cylinder, which can meet the food sanitary requirement

9. Adopted with the imported technology, we improve our machines according to the after service and testing report. By customers’ requirement, we add another set of material conveying unit and chocolate conveying unit to diversify our products

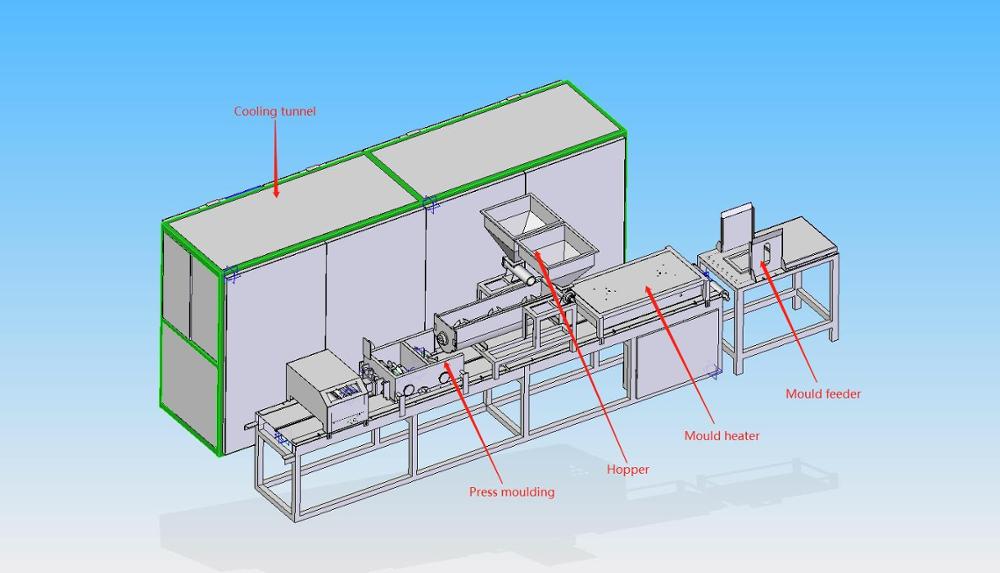

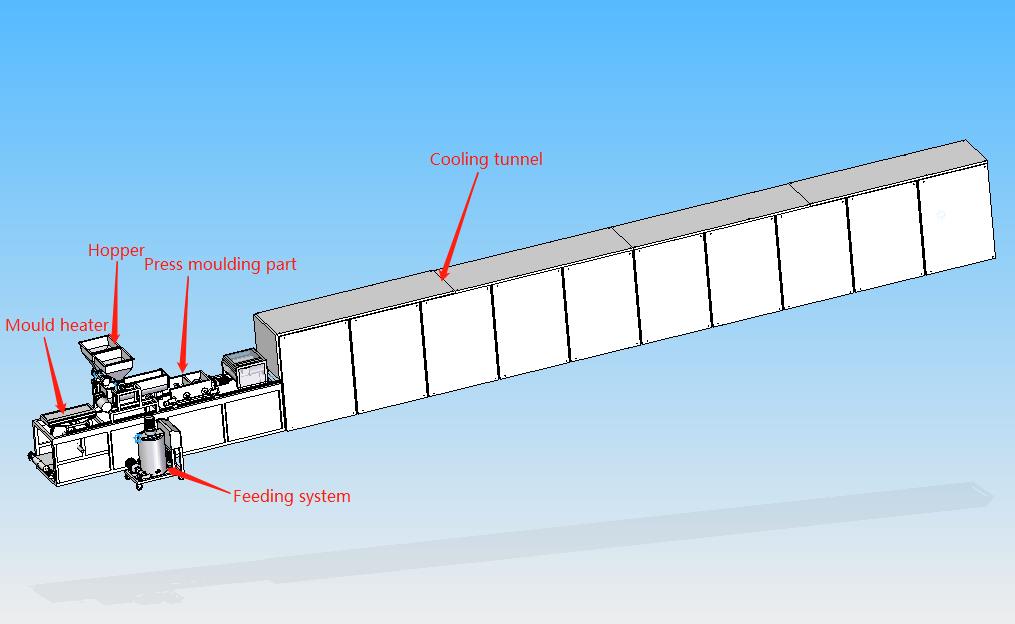

10. The whole production line includes: moulds, mixing and forming unit, cooling unit, packaging unit

11. The corn mould clamping device can be added according to the customers’ requirements

Application



Contact Supplier


HOT SALE



Main category


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.

Delivery Clause
1. The Equipment will be collected from the Seller’s factory by Buyer, or will be delivered by Seller on agreed terms.
2. Leading time is usually 30-60 working days.
