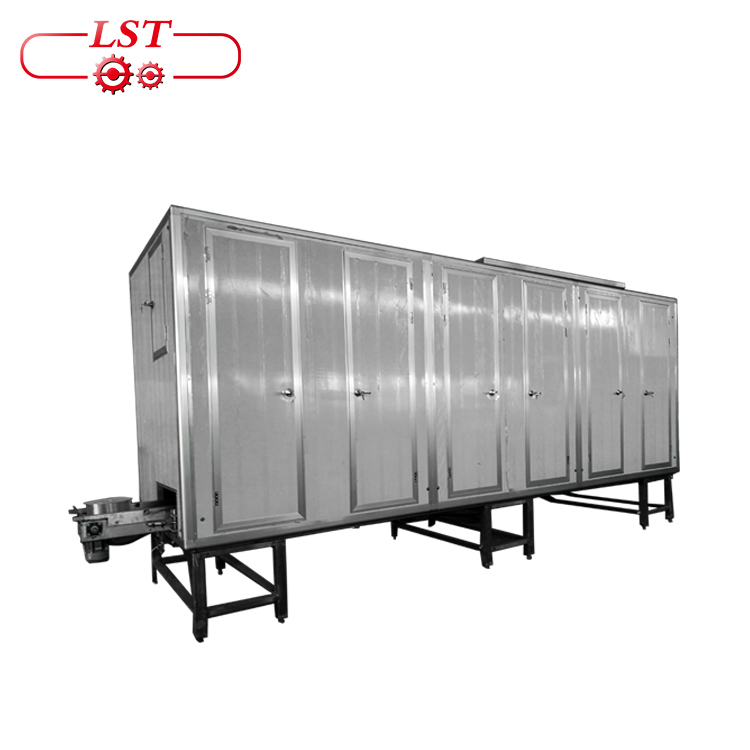

Vertical cooler

Short Description:

Vertical cooling tunnels are universally used for product cooling after molding. Such as filled candy, hard candy, taffy candy, chocolate and many other confectionery products. After conveying to cooling tunnel, products will be cooled by special cooling air.


Product Detail

Product Tags


●Specification:


Item No EM600
Machine Capacity 75-6000kg/batch
Certification CE
Customization Customize logo(min order 1 set)
Customize packaging(min order 1 set)
 EXW Price: EM600

●Main Introduction:


Vertical cooling tunnels are universally used for product cooling after molding. Such as filled candy, hard candy, taffy candy, chocolate and many other confectionery products. After conveying to cooling tunnel, products will be cooled by special cooling air. Cooling effect is stable and the whole process is clean. Import compressor from USA and frequency convertergreatly improves the stability and durability of this device.


●Main Feature:


1.Cooling tunnel are equipped with 2 sets of 15P refrigeration systems. Direct touch cooling on bottom side and indirect top cooling design.
2.All stainless steel and which in compliance with food hygiene and safety standard.
3.Two stages or even more stages of cooling. The multi-stage cooling design makes it energy saving, fast cooling, easy operation,etc.
4.Tunnel cover adopts the latest design concept, fully covered and sealed design greatly avoid energy loss.
5.The most obvious and also the most important advantage for vertical cooling tunnel is space saving.


●Touch screen:


*Brand:Delta
*Model:DOP-B07SS411


●PLC:


*Brand Delta
*Model DVP-16ES200R
*Temperature sensor DVP-04PT-E2
*Servo ASD-A2-4543-M
*Servo-Motor ECMA-L11845RS
*Frequency Converter VFD007EL43A

●OS:


*OS Windows7
*PLC Programming software WPLSoft 2.42
*Touch Screen programming software DOPSoft 2.00.06

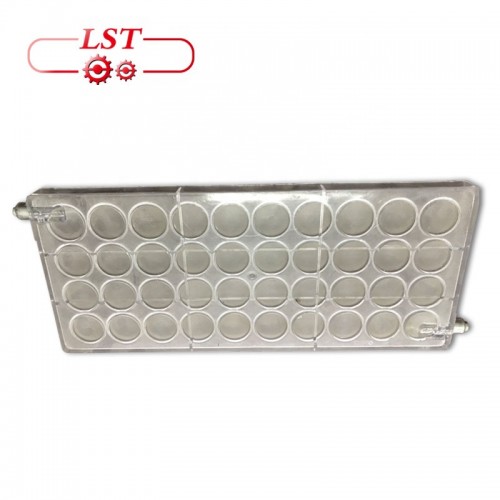

Capacity  Standar capacity is 280 moulds. and also we can customize for you if you have special requests.

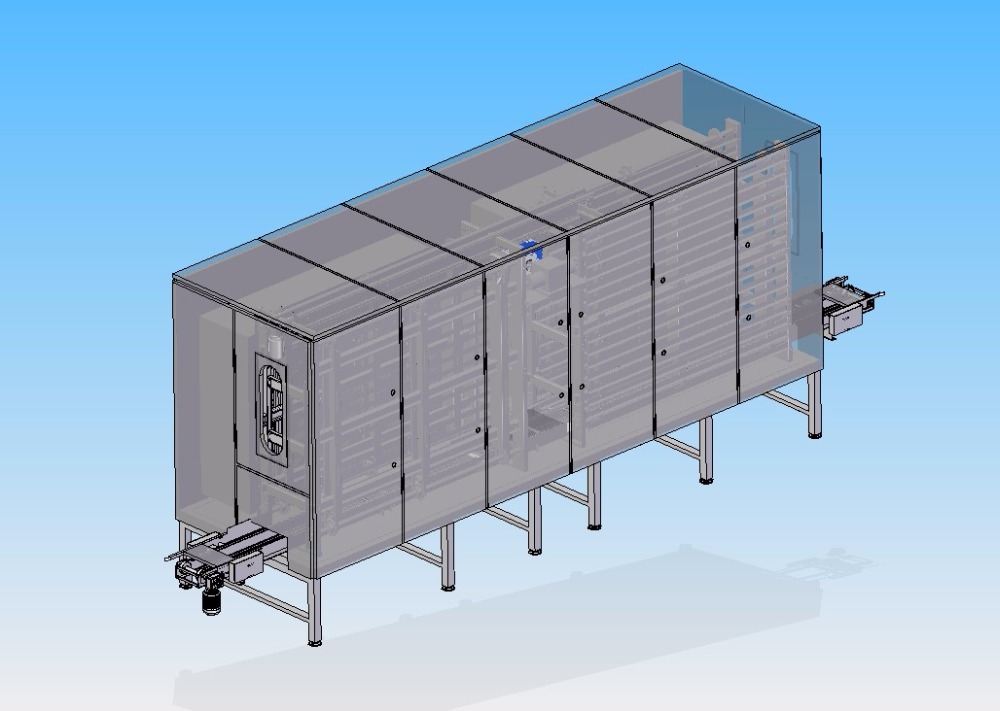

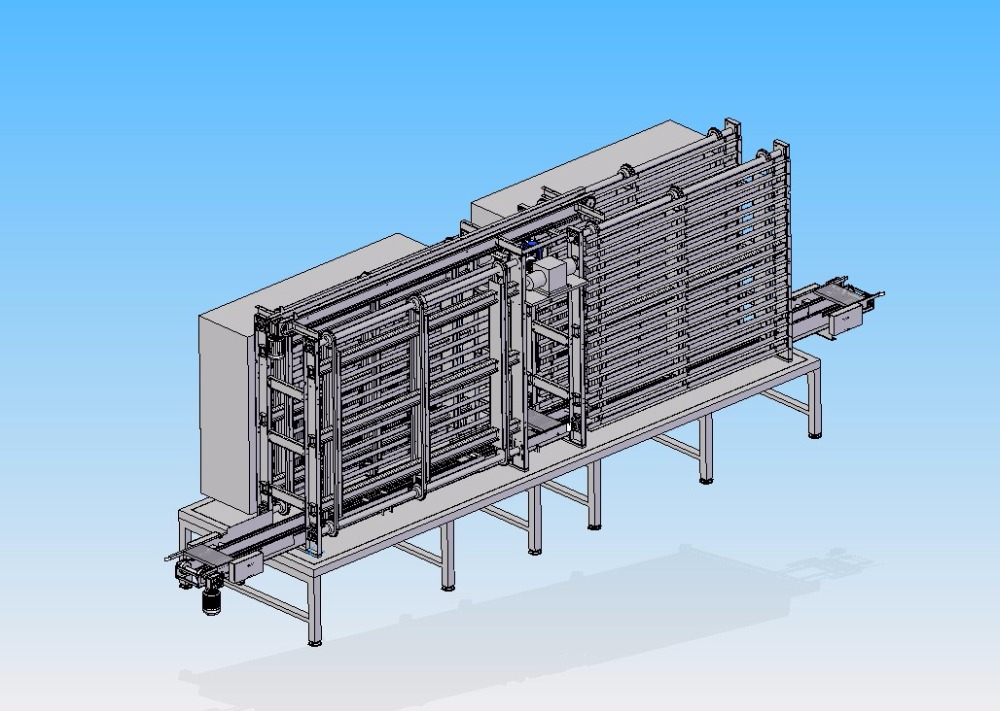

●Picture:



●Video:
