All automatic chocolate bar moulding machine center filled chocolate candy making equipment

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Applicable Industries:
Food & Beverage Factory
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
330/380V
Power(W):
27kw
Dimension(L*W*H):
18500*1210*2500mm
Weight:
6500kg
Certification:
CE ISO
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Application fields:
Snack food factory, Beverage Factory
Raw material:
Nuts, chocolate
Condition:
New
Application:
Chocolate

All automatic chocolate bar moulding machine center filled chocolate making equipment

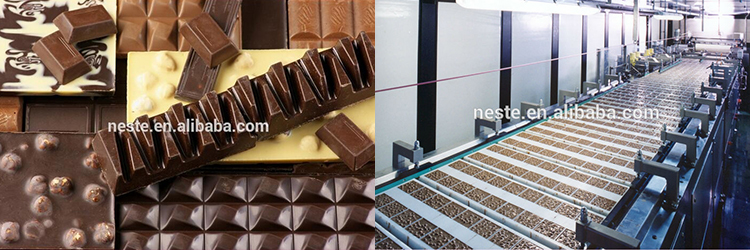

product display





Product parameters


Cocoa butter Melting Tank

 Use:

The cocoa butter melting tank is used for melting the cocoa butter. This tank could be heated by the electrical immersion heater. The tank wears hot-water jacket.

Capacity:

360kg

Motor power:

8kw

Shape:

Rectangle or cylinder

Material:

Inner: stainless steel, outer: mild steel

Outside dimension:

1900*970*1250mm





Sugar grinding machine:

 USE:

The sugar grinding machine is a kind of chocolate machine mainly used for secondary grinding of granulated sugar.

Production capacity:

250kg/h

Feeding granularity:

0.5~2mm

Average grain:

80-100 mesh

Main shaft power:

7.5kw

Feed motor power:

1.5kw

Main shaft Rotation speed:

3800r/min

Feed spindle rotation speed:

217r/min

Net weight:

500kg

Outside dimension

1240*960*1733mm



 Chocolate conche:

 USE:

1).The chocolate conche machine is one of the major chocolate machine in the chocolate production line which are used for the fine grinding of chocolate material.

2).The fine grinding time is about 14~20 hours, the average granularity can achieve 20μm.

3).This chocolate machine has many merits such as tight structure, easy operation, convenient maintenance, few one-off investment, and so on.

4).It is suitable especially for the technical request of medium chocolate and candy factory.

Maximum capacity(L):

1000L

Grinding Fineness(micron):

20~25

Main Axle Rotating Speed(rpm):

35

Grinding time(h):

16~22

Main motor power(kw):

18.5

Electrical heating power(kw):

2*2

Weight(kg):

3050

Outside dimensions(mm):

2627*1280*1520



 Chocolate  holding tank

 USE:

The chocolate holding tank is a necessary equipment in chocolate production line. It wears double warm-water jacket which used for temperature storage of fine ground chocolate paste.So that to meet the technical request of chocolate production and the request of continuous production.

This chocolate tank has functions of temperature decrease, rise and preservation.

Besides it has the functions of degasification, desmelling, dehydration and preventing the chocolate paste from the separation of oil and grease and so on.



Model:

JY1000

Maximum capacity

1000kg

Motor power:

2.2kw

Stirring Rotational Speed:

24 rpm

Whisk Rotational Direction:

Clockwise (Viewed from above)

Electric Heater Power:

4kw

Tank Interlayer Water Temperature:

55°C (Warm-up temperature of chocolate mass)

Net weight:

1000kg

Outside dimension:

(Diameter)1220*(Height)1850mm



Chocolate depositing machine:

 USE:

1).This chocolate depositing line can produce pure solid chocolate, center filling chocolate, two color chocolate, nuts mixed chocolate with nuts mixing machine. Chocolate can be compound chocolate and real chocolate.

2).Products can be manufactured with biscuits or wafers simply by installing the relevant biscuit feeding units.

3).Chocolate depositing line can complete automatic feeding mould, baking mould, depositing, vibrating mould, cooling, de-moulding, conveying empty moulds for cycle AUTOMATICALLY and dosage system is mechanical.

4).This depositing line has merits of high productivity, accurate dosing, smooth surface of chocolate etc.

Production capacity:

800 – 2500kg/shift

Depositing times:

20 – 25times/minute

Dosage system:

mechanical

Mechanical vibrating frequency:

200 – 1000times/minute.

Molds vibrating amplitude:

0 – 3mm, adjustable

Cooling time:

18 – 30min

Cooling temperature:

5 – 10°C

Cooling tunnel length:

8.2m * 8 Layers

Time of baking molds:

20 – 36 seconds

Temperature of baking molds:

35 – 40°C

Length of baking molds:

1.4m

Refrigeration capacity:

20000 – 25000kcal/h (10 HP COPERLAND)

Evaporator area:

80 square meters

Quantity of moulds:

300 pieces

Dimension of moulds:

standard 275×175×30mm

Total Power of machine:

17.4kw

Dimensions:

16000×1000×1800(L×W×H, mm)

Weight of the machine:

3500kg

Characteristics:

  1. PLC control, auto-frequency control
  2. man-machine touch interface to detect the levels of the liquid and solid material. Overload protection to alarm when there is something wrong, and to show it on the touch screen
  3. programming storage of the products to change the chocolate color and products every 15 minutes. More stable when running with the prescription
  4. separated heating and control system. The heating system keeps the chocolate in constant temperature when the control system is powered off, so the service life of the control system is longer.
  5. it can mix chocolate, nut butter, fruit, or cereal with other particle food; the product loafs are varied and can be customized
  6. equipped with 2 high precision cam rotor pumps to mix the material continuously. The batching system and the high precision cam rotor pumps can keep the stable proportion of the chocolate during producing
  7. during the production, the mixing materials can be detected by the sensor, and supplemented by the transducer. The whole producing process is controlled by the sensor, and there is no need to stop.
  8. made of stainless steel ,and matched with special accessories like magnetic rodless cylinder, which can meet the food sanitary requirement
  9. adopted with the imported technology, we improve our machines according to the after service and testing report. By customers’ requirement, we add another set of material conveying unit and chocolate conveying unite to diversify our products
  10. the whole production line includes: moulds, mixing and forming unit, cooling unit, packaging unit
  11. the corn mould clamping device can be added according to the customers’ requirements



 technical features:



production capacity: 2000-6000KG/shift

total power:27KW

air supply pressure:0.6Mpa

overall dimension:18500×1210×1800mm

mould dimension:400×300×30mm(the moulds and the shapes of the products can be customized )

mould output:10-16pieces/min


It is good to produce pure chocolate, center-filled ,double-colored chocolate and crispy rice chocolate, with accurate pouring amount and easy operation.
