Chocolate Filling Machine One Shot Chocolate Forming Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New, New
Applicable Industries:
Food & Beverage Factory, Food Shop, Food & Beverage Shops
After Warranty Service:
Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
380V
Power(W):
14kw
Dimension(L*W*H):
2700-1200-1650
Weight:
500kg
Certification:
CE ISO
Application fields:
Snack food factory, Beverage Factory
Raw material:
Nuts
Key Selling Points:
High Productivity
Application:
Chocolate
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
CHOCOLATE MACHINE
Warranty:
1 Year

Chocolate Filling Machine One Shot Chocolate Forming Machine


product display







Product parameters

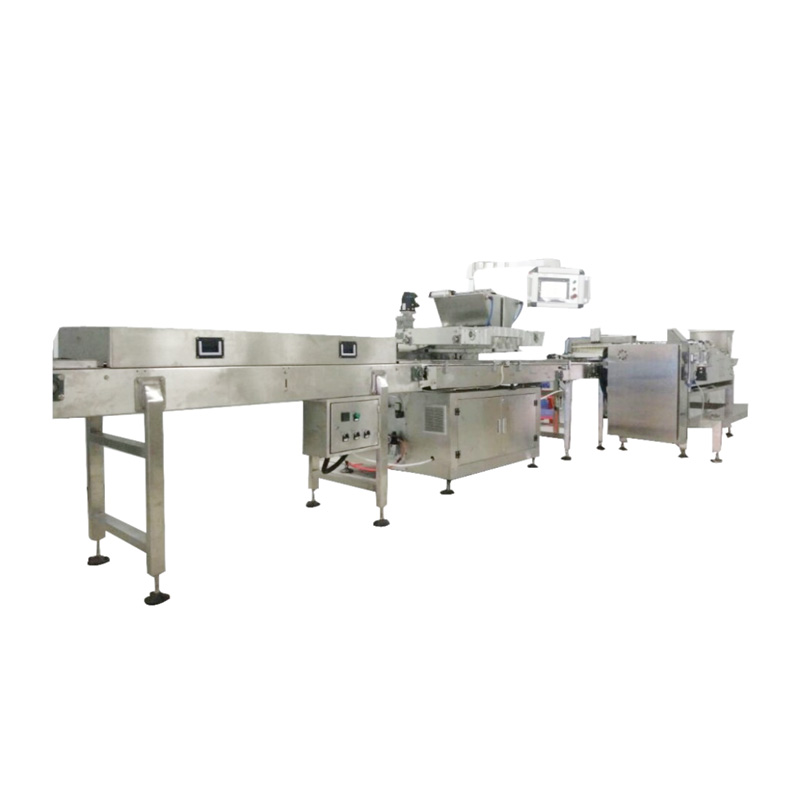

This Chocolate depositor is a high-tech automatic chocolate machine. The production process usually include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demoulding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate, etc.

The most special features of this line is the flexibilityas every parts of this line can be used as an independent machine and also they can be combined with other machines.

Features of new version:

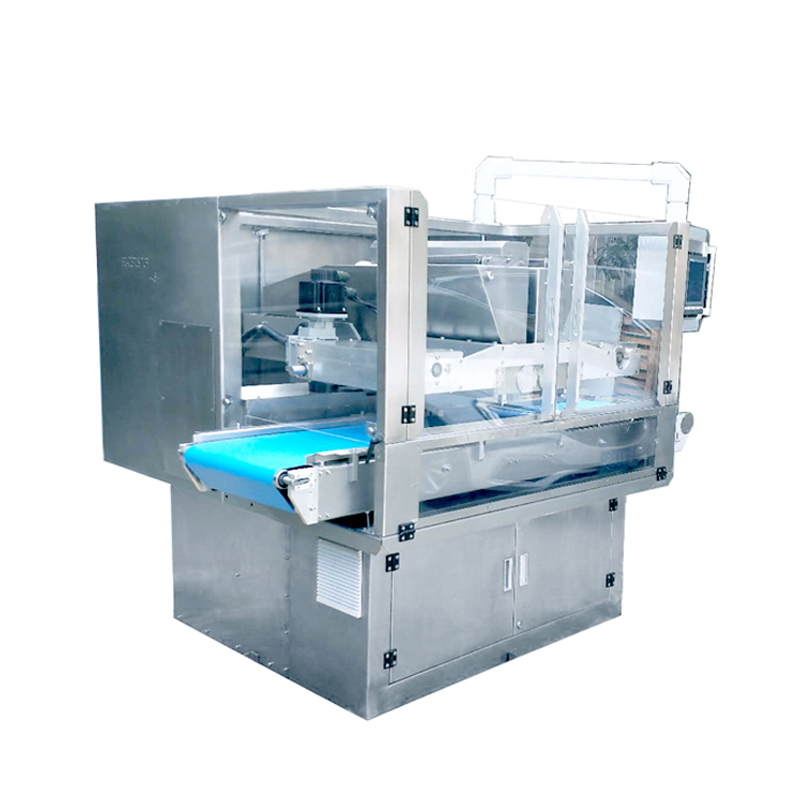

1.Depositor is with shell, these shell is not only for hygienic purpose, but also for safety protection.

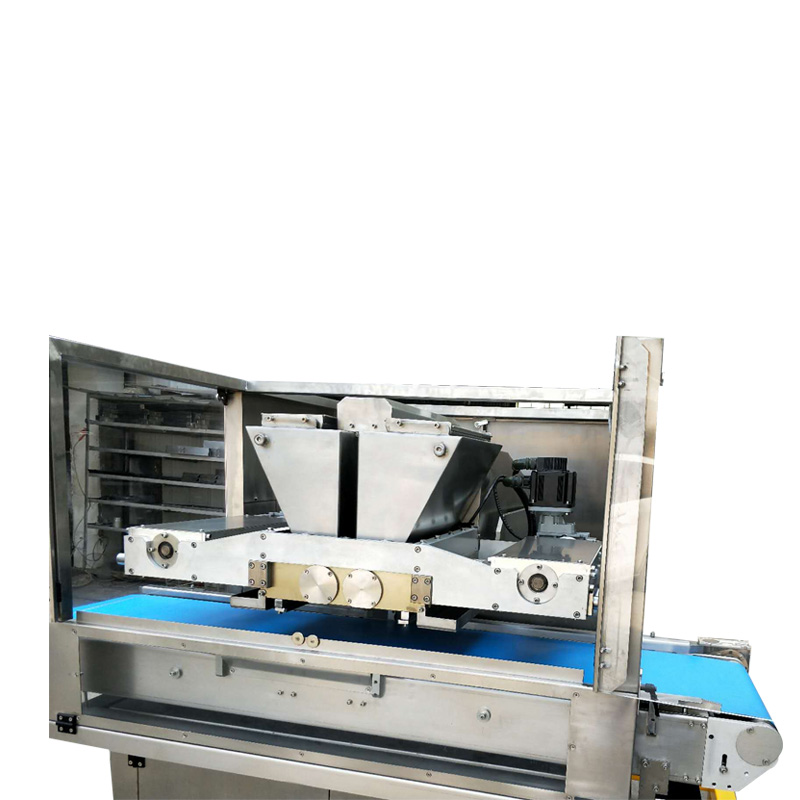

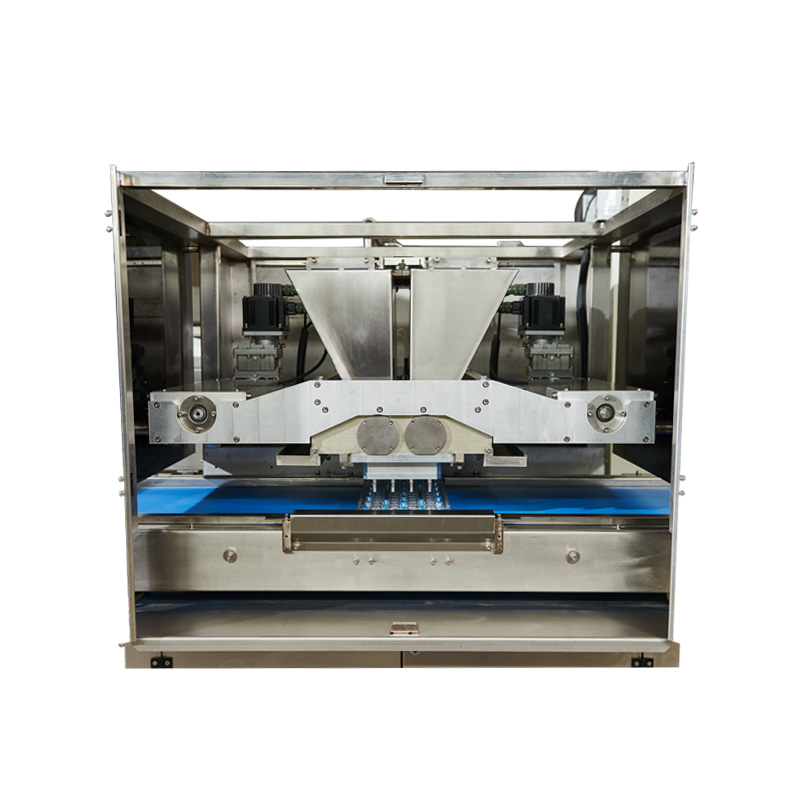

2.The depositing head is with completely new mechanism, which enables fast assemble and disassemble of the depositing head, depositing plate, etc. This design make it very fast and convenient for depositing plate change or depositor cleaning.

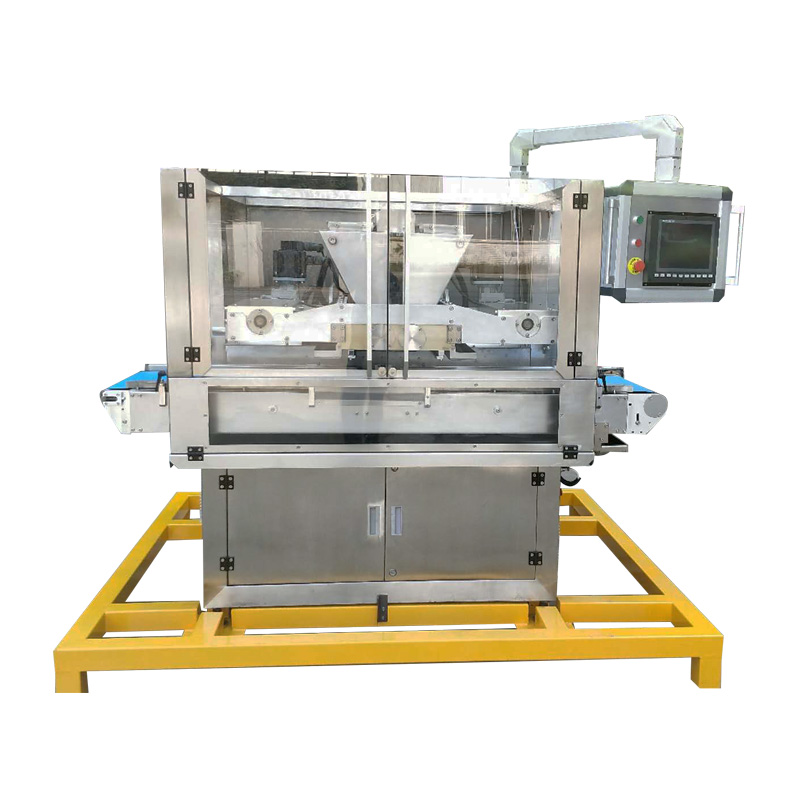

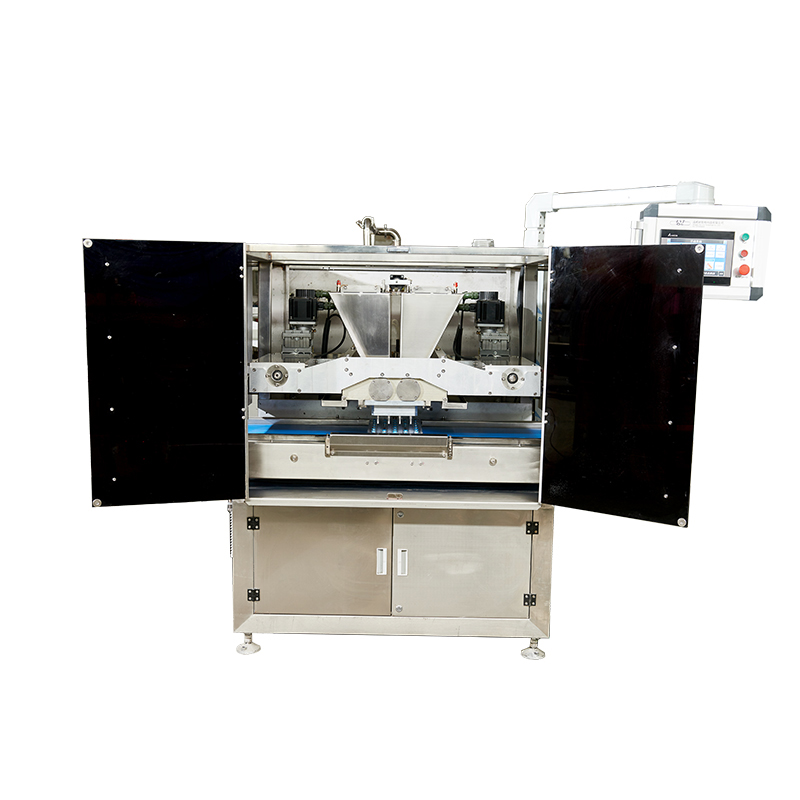

2D One-Shot Depositor: One-shot depositor, single color, two color, center filling, chocolate ball, center filled chocolate ball, etc.

3D Decoration Depositor: Has all the function of 2D one-shot depositor, specialized in decoration depositing function. Depositor is able to move to any direction necessary. It is even able to draw picture



Parameter/Model

2D One-Shot Depositor

3D Decoration depositor

PLC

DELTA

DELTA

Depositing Speed

6-12 mouds/min

4-12 mouds/min

Piston Numbers

48/72/96*2 pistons

48/72/96*2 pistons

Products Per Shot

Up to 192 pcs

Up to 192 pcs

Servo Motor

4sets

5sets

Movable Axis

Z+X or Z+Belt

X+Y+Z

Depositing Mode

A/B/A+B

A/B/A+B

Depositing Accuracy

≤±0.1g

≤±0.1g

Filling Rate

≤80%

≤80%

Power

12KW

13KW

Dimension

2000*1580*1600mm

2000*1580*1600mm

Mould size

450-300-30/450-230-30/275-175-30mm

450-300-30/450-230-30/275-175-30mm

 Technical Parameter:

Productivity

6-10 mouds/min

48*2 nozzles(72/96 nozzles available)

Voltage

380V/415V

Can be customized

Mould size

Standard 450-300-30mm.

Or customized




Main Features & Advantages:

1.Full automatic PLC controlled, Schneider electronic components, Omrons photodetection, AirTAC and SMC pneumatic elementmakes it highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.

2.The Beckhoff Remote Control System from Germany enables us to modify system parameters, diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.

3.There are many add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler, etc. Customers can choose these add-on devices accordingly and add or  change the add-on devices for new product whenever needed.

4.This line is combined with all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.

5.There are single depositor, double depositor or more to meet different product production need. The special mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.

6.To produce different kinds of chocolate products, you only need to change the pouring plate and moulds.






Hot Sale


Main category


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.

Delivery Clause
1. The Equipment will be collected from the Seller’s factory by Buyer, or will be delivered by Seller on agreed terms.
2. Leading time is usually 30-60 working days.

FAQ




1. Payment: T/T in advance. 40% down payment, 60% against acceptance from customers

2. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

3. Customization is available.

5. What’s the information should I let you know if I want to get a full quotation?

Bag type, size, weight of material, type of material, thickness, printing, colors, quantity

6. When we create our own artwork design, what kind of format is available for you?

The popular format: AI, JPEG, CDR,PSD, TIF

7. Wooden case packed with machine and English manule

8. Transformer is provided

9. Technical manual in English is provided

10. The machine is stainless steel
