Automatic chocolate machine industrial machine of making chocolate with low price

    product detail

    Overview
    Quick Details
    Applicable Industries:
    Food & Beverage Factory, Food Shop
    Brand Name:
    LST
    Place of Origin:
    Sichuan, China
    Voltage:
    330/380V
    Power(W):
    24
    Dimension(L*W*H):
    18000*1500*1900mm
    Weight:
    4000kg
    Certification:
    CE ISO
    Warranty:
    1 year
    After-sales Service Provided:
    Field installation, commissioning and training, Engineers available to service machinery overseas
    Application fields:
    Snack food factory
    Raw material:
    Nuts
    Condition:
    New
    Application:
    Biscuit
    Model Number:
    LSTJ2000
    Automatic chocolate  machine industrial machine of making chocolate with low price
    Automatic chocolate machine industrial machine of making chocolate with low price
    Product parameters
    Product parameters

    Model

    LST-1000

    Production capacity( kg/shift)

    200~700

    Speed of stroke( n/min)

    6~12

    Mould heating and fan power

    6kw

    Mould temperature

    24~45

    Vibrating motor power

    1.1kw

    Vibrating time

    30~60s

    Depositing motor power

    1.5kw

    Stirring motor power

    0.5kw

    Circulating hot-water power

    4.5kw

    Circulating pipe water pump power

    0.5kw

    Mould size and numbers needed

    510x225x30mm

    400pieces needed

    Compressed air consumption

    2.5m3/min

    Compressed air pressure

    0.4Mpa

    Gross weight (kg)

    6000kg

    Dimension

    1.Mould heating unit:

    L1700xW1045xH950mm

    2.Depositing unit:

    L1575xW1045xH1130mm

    3.Vibrating unit:

    L1500xW1045xH850mm

    Automatic chocolate machine industrial machine of making chocolate with low price

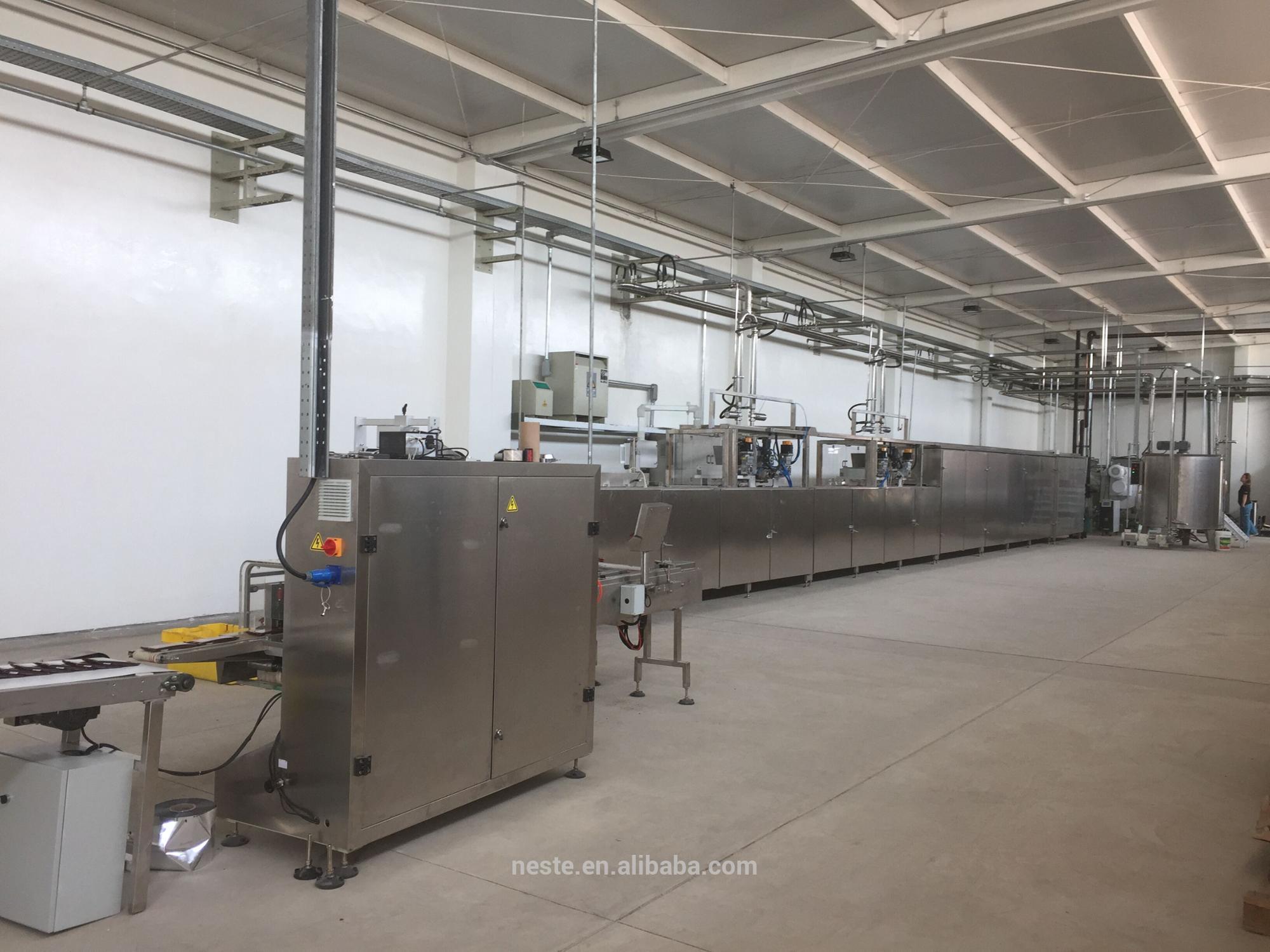

    This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.
    Automatic chocolate machine industrial machine of making chocolate with low price
    Main Features & Advantages
    1
    Full automatic PLC controlled,highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.
    2
    The Beckhoff Remote Control System from Germany enables us to modify system parameters,diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.
    3
    There are a lot of add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler,etc. Customers can choose these add-on devices accordingly and add or change the add-on devices for new product whenever needed.
    4
    The high configuration production line can be combined by all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.
    5
    There are single depositor,double depositor or more to meet different product production need. The special mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.
    6
    To produce different kinds of chocolate products, you only need to change a depositor or the chocolate syrup distribution plate that used with the depositor.
    7
    The mobile depositor enables the mobile mould-follow-depositing function, which greatly increase the output of the production line by 20%.
    8
    With plastic guide-rail protection, the chain will not contact with spilled chocolate,which meets the overall food hygiene requirements.
    Automatic chocolate machine industrial machine of making chocolate with low price
    There are many other add-on devices ,such as auto mould loader, sprinkler,biscuit feeder,Conche, tempering machine,decorating machine and many more. You can add whatever part you need to make it a full automatic production line and produce different kinds of products.
    Contact Supplier
    Contact Supplier
    Hot Sale
    Hot Sale
    Main category
    Main category
    Company INFO
    Company INFO

    Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.

    Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.

    We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.

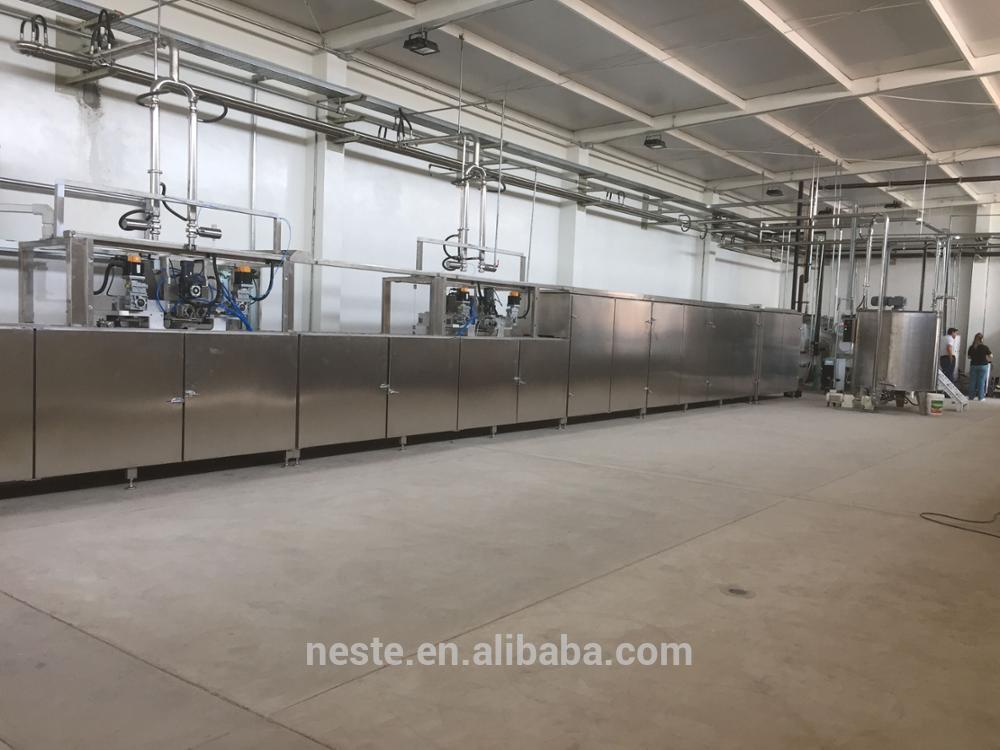

    Factory and equipment
    Our Services
    Pre-sale Services

    1. We’ll guide you to choose the most suitable machines for your project.

    2. When sign contract, we will notify the power supply voltage and frequency.

    3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

    After-sale Service

    1. Technical service provided.

    2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

    3. One year warranty for standard operation. Life-time technical support provided. Service charge applies for incorrect operation or artificial damage.

    Delivery Clause

    1. The Equipment will be collected from the Seller’s factory by Buyer, or will be delivered by Seller on agreed terms.

    2. Leading time is usually 30-60 working days.

    FAQ
    FAQ
    1. Payment Terms
    Payment: T/T in advance. 40% down payment, 60% against acceptance from customers
    2. Quality & Testing
    Strict with complete testing and well adjustment according to customers’ requirement before shipment.
    3. Customization
    Customization is available.
    5. What’s the information should I let you know if I want to get a full quotation?
    Bag type, size, weight of material, type of material, thickness, printing, colors, quantity
    6. When we create our own artwork design, what kind of format is available for you?
    The popular format: AI, JPEG, CDR,PSD, TIF
    7. Packaging
    Wooden case packed with machine and English manule
    8. Transformer
    Transformer is provided
    9. Technical Manual
    Technical manual in English is provided
    10. Material
    The machine is stainless steel
    11. Export Standard
    In the line of exporting packing material
