Automatic Twisting Packing Machine System Single/Double Twist Chocolate Candy Wrapping Machine

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Warranty:
1 year
Application:
Food, Medical
Packaging Material:
Plastic
Type:
Multi-Function Packaging Machine
Applicable Industries:
Food & Beverage Factory, Food Shop
Condition:
New
Function:
Wrapping
Packaging Type:
Foil
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380 V,50 Hz,3-Phase
Place of Origin:
Sichuan, China
Brand Name:
LST
Dimension(L*W*H):
6*2*1.8m
Certification:
CE
After-sales Service Provided:
Field installation, commissioning and training
Product name:
Single/Double Twisting Chocolate Packing Machine
Model Number:
DN/SN-TP300
Packing Speed:
200-360pics/min
Product Dimensions(L*W* H):
15-55 * 5-30 * 5-25mm /17-30mm*6-22mm
Air Supply:
0.6 MPa
MOQ:
1
Material:
SUS304
Product Description

Packing Machine Feature

1. Fully automatic program-controlled with servo motors, highly stable and reliable
2. Flexible in color sensor settings, paper feeding self-tracking and correction during packing, providing a consistent packing style and a good product appearance
3. Self-protection for abnormal product
4. Online product feeding status monitoring – Only feeding wrapping paper when product arrives desired position, which keeps paper consumption at an extremely low level
5. Online wrapping paper status monitoring – automatic pause when wrapping paper is running our or breaks


Product Descriptio

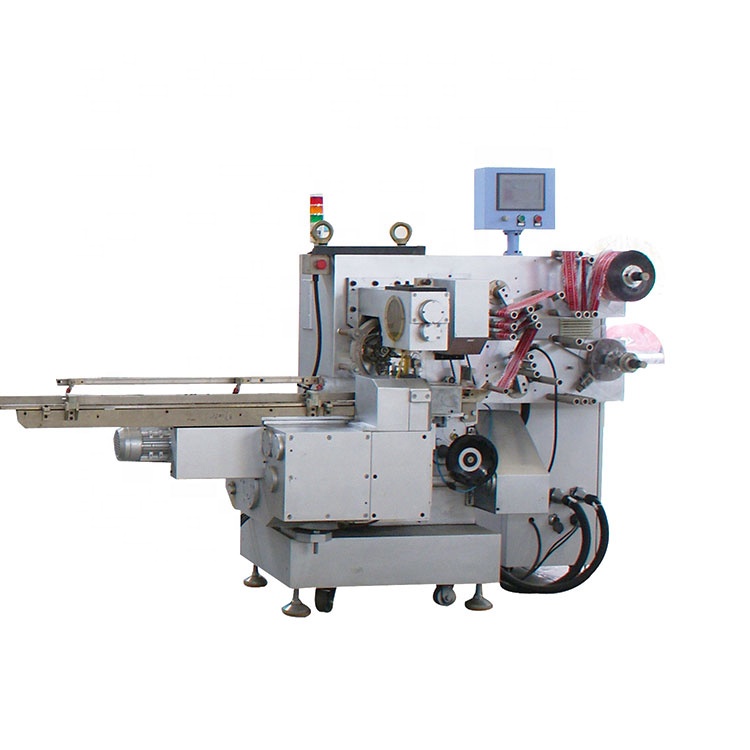

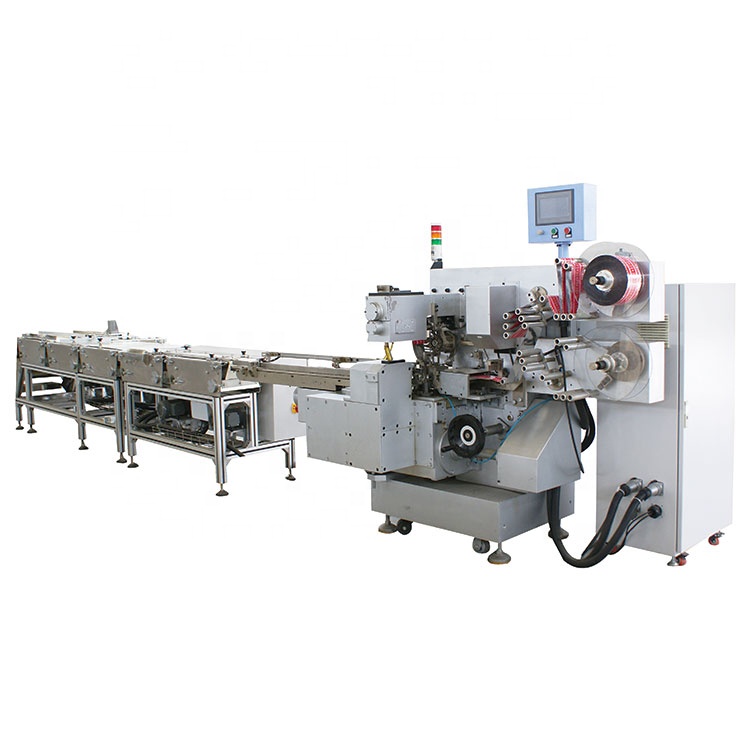

DN/SN-TP300 (single and double-twisting) series automatic packing machines are used for the twisting style packing of chocolate, praline, pressed candy, and etc. Both models use foil special for twisting packing and are suitable for various kinds of products in different shapes and sizes, providing excellent packing performance.This machine main consists of product feeding system,twisting system ,paper feeding system and product output system.

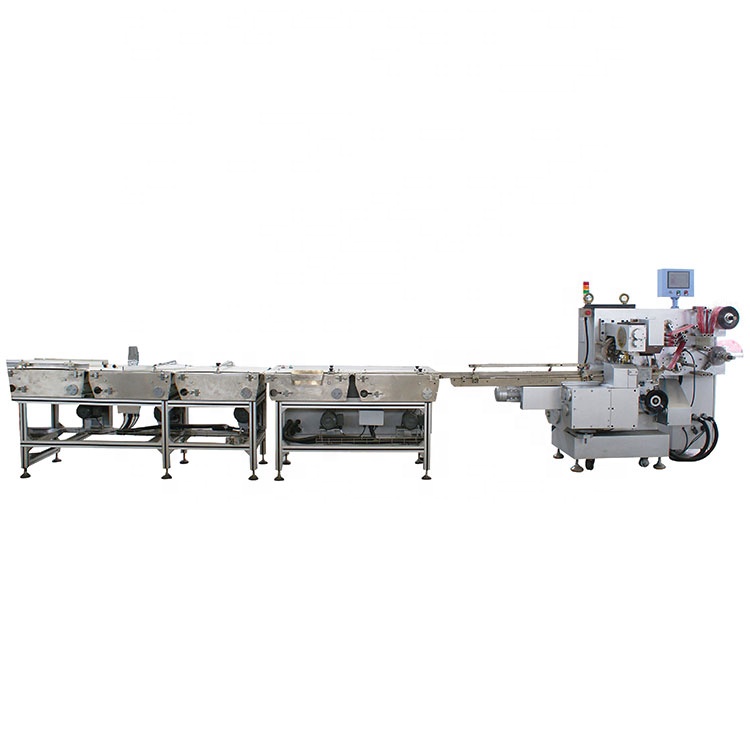

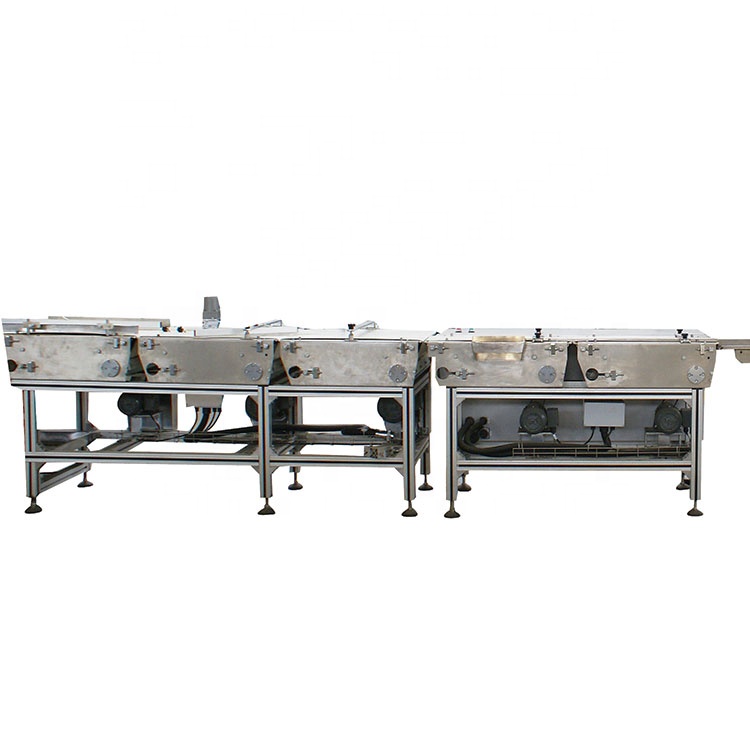

DN/SN-TP300series machines are used for arranging and disordered products so that they can be fed into the packing machine steadily and quickly. The machine includes several feeding system, transportation belt and different kinds of steel rails and is controlled by the connecting packing machine, which ensures the excellency and reliability of the packing performance.

Parameters Table
Product Name
Full Automatic Candy/Chocolate Single-twisting/Double-twisting Packing Machine
Model Number
DN/SN-TP300
Packing Speed
200-360pics/min
Product Dimensions(L*W* H)
10-80 *4- 45 *4-35 mm
Total Power
3KW
Power Supply
380 V, 50 Hz, 3-Phase
Air Supply
0.6 MPa
Installation Plan(mm)




Related Products








About Us

ChengDu LST Science & Technology Co., Ltd

Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.
Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel, Peru and many other countries in the world.
We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.

Our Service

Pre-Sales Service

1.We'll guide you to choose the most suitable machines for your project.
2.When sign contract, we will notify the power supply voltage and frequency.
3.Strict with complete testing and well adjustment according to customers' requirement before shipment.

After-Sales Service

1. Technical service provided.

2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians' installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer's account. A service charges of day per technician applies.

Certification








FAQ

1. Payment: T/T in advance. 40% down payment, 60% against acceptance from customers
2. Strict with complete testing and well adjustment according to customers' requirement before shipment.
3. Customization is available.
5. What's the information should I let you know if I want to get a full quotation?
Bag type, size, weight of material, type of material, thickness, printing, colors, quantity
6. When we create our own artwork design, what kind of format is available for you?
The popular format: AI, JPEG, CDR,PSD, TIF
7. Wooden case packed with machine and English manule
8. Transformer is provided
9. Technical manual in English is provided
10. The machine is stainless steel
