Factory Direct Sales High Quality Full Automatic Chocolate Coating Machine

    product detail

    Overview
    Brand Name:
    LST
    Place of Origin:
    Sichuan, China
    Voltage:
    380V/50HZ/Three Phase
    Power(W):
    24Kw
    Dimension(L*W*H):
    2550*1600 *2650mm
    Weight:
    800kg
    Certification:
    CE
    Warranty:
    1 year
    Product name:
    chocolate coating machine
    Matched machine:
    chocolate polishing machine
    Usage:
    dates nuts chocolate coating and polishing
    Raw material:
    peanuts, raisins , almonds M&M chocolate beans
    Capacity:
    200-400kg/h
    Refrigerant:
    matched cooling system
    Compressor:
    0.4Mpa
    Color:
    SS color
    Feature:
    easy Operate
    Service:
    good any supports
    Condition:
    New
    Application:
    Chocolate
    After-sales Service Provided:
    Engineers available to service machinery overseas
    Product Description
    Factory Direct Sales High Quality Full Automatic Chocolate Coating Machine

    Chocolate Coating&Molding machine and Chocolate Polishing machine are mainly used in stuffed products with peanuts,almonds,raisin,puffed rice balls,Jelly candies, hard candies ,QQ candies etc.

    Output 200-400kg/h  330L/batch
    Total Power 12KW
    Dimension 2450-1650-2250mm
    Net Weight 800kg
    Belt Speed 5-20m/min
    Belt Width 1650mm
    Compressed Air 0.4MPa
    Power Supply 380V 50HZ or customized
    Production process
    Chocolate coating -air dry and solidify-polishing
    For special product
    • 1.For fragile products and puffed product, Diameter ≥4mm, stuffed material ≤250 liters. The more fragile, the less material.
    • 2.For products with corner and edges,round shape and consistent thickness is not suggested.
    • 3.For adhesive product, put less adhesive material. In case materials stick together and effect the shaping.
    • 4.For chocolate paste, it is necessary to filter before add in to avoid block of spray nozzle.
    Products show

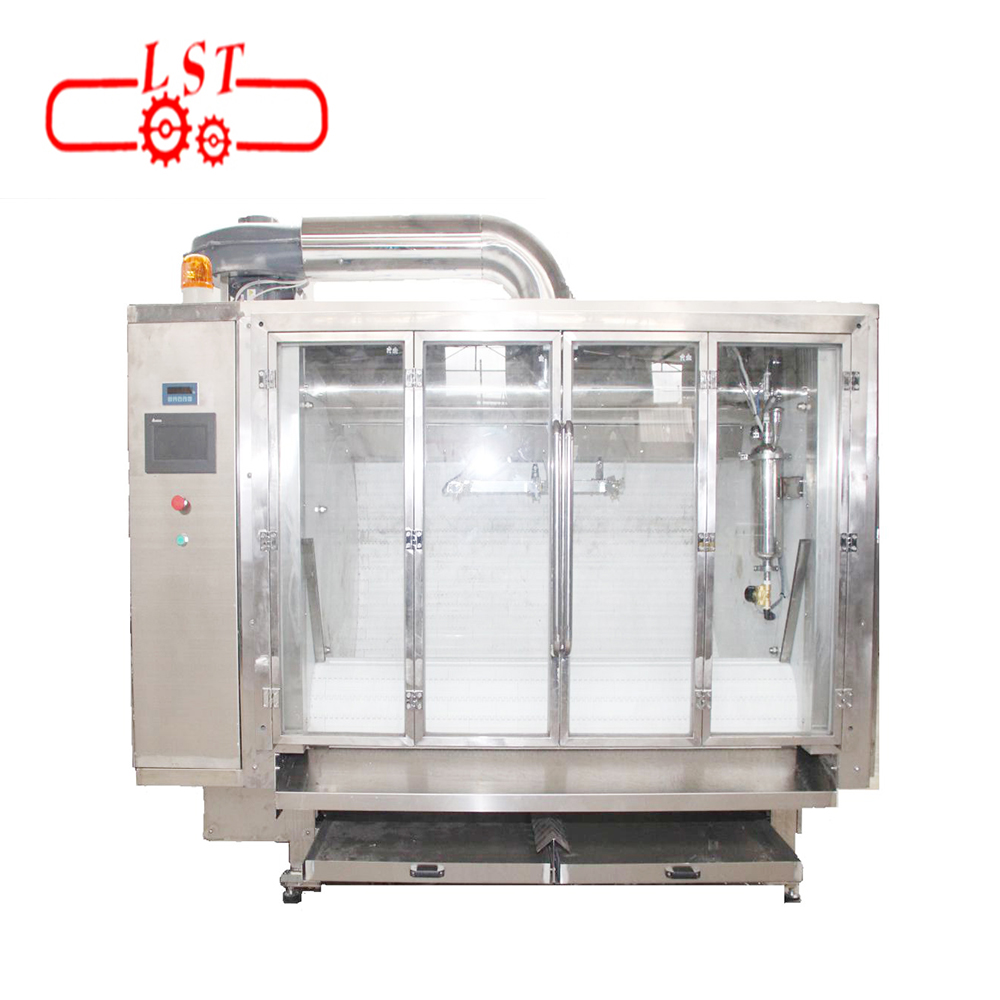

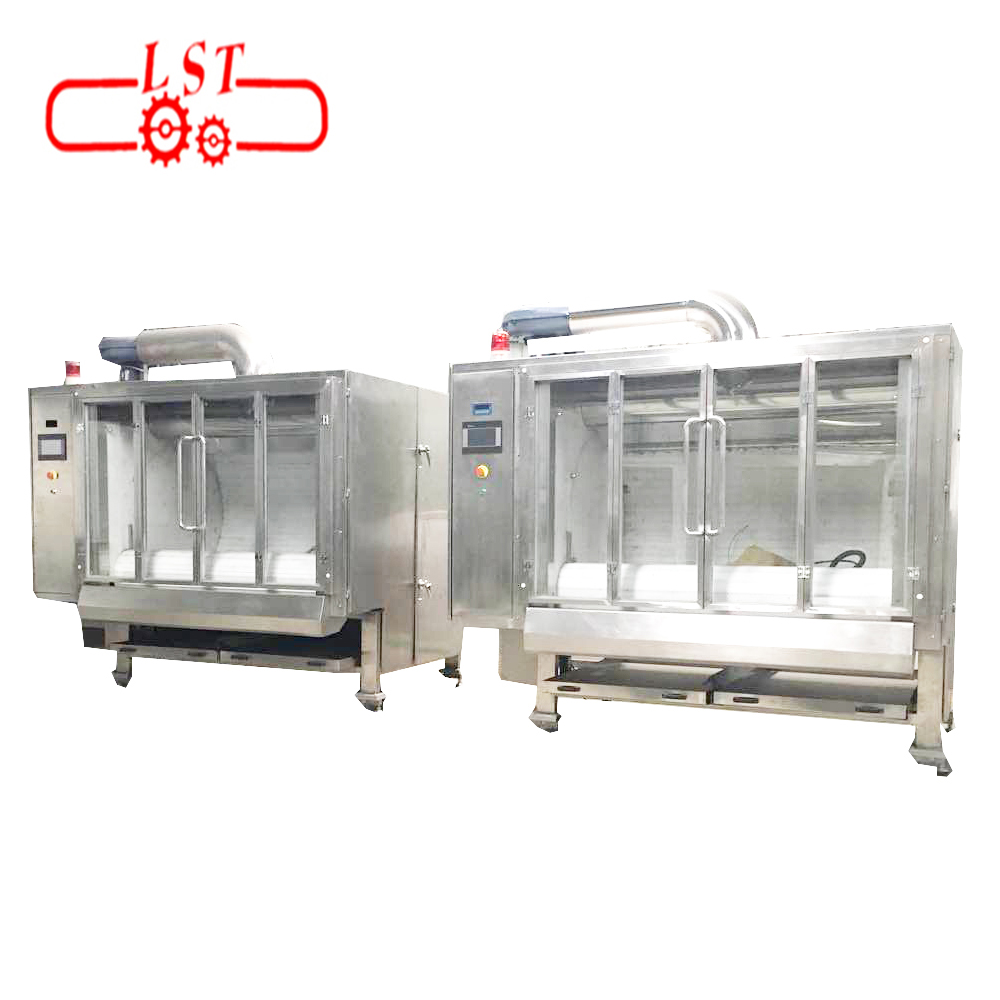

    Factory Direct Sales High Quality Full Automatic Chocolate Coating Machine

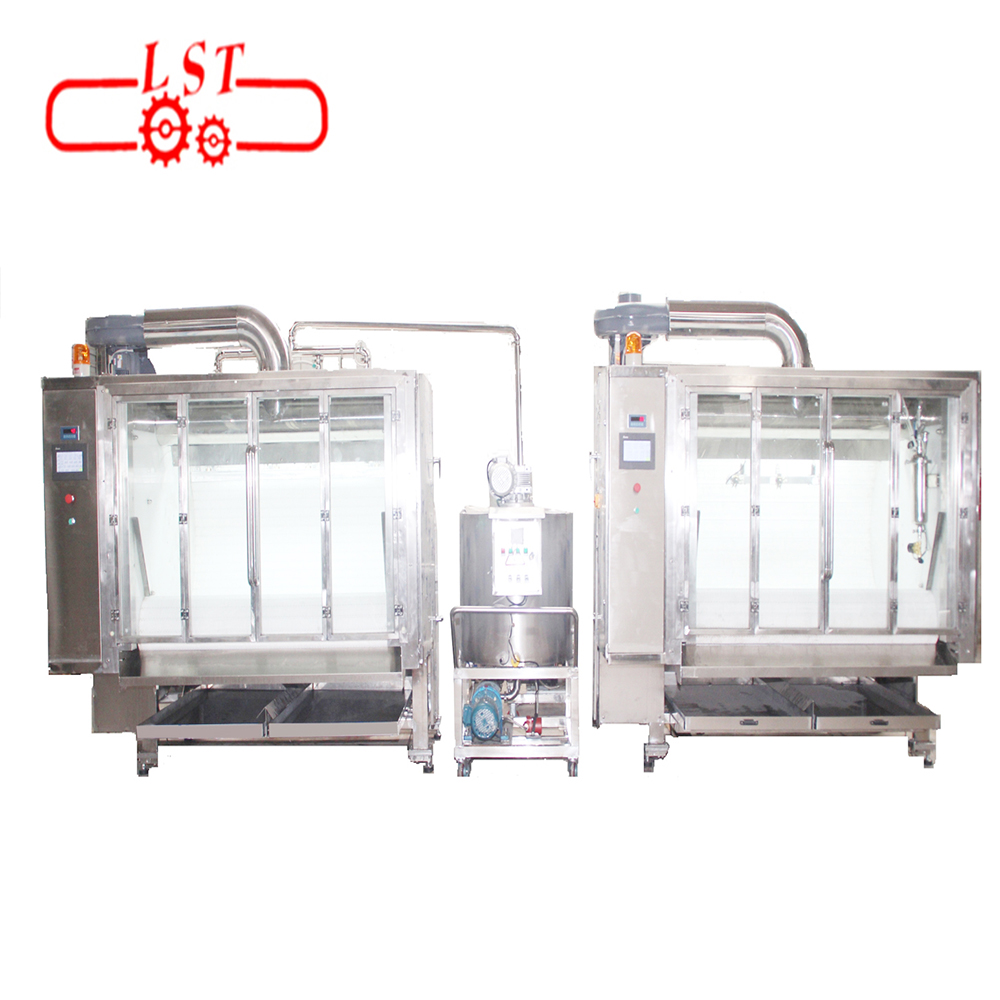

    Main consist of 4 machines
    • (1).chocolate coating machine
    • (2).chocolate material feeding system

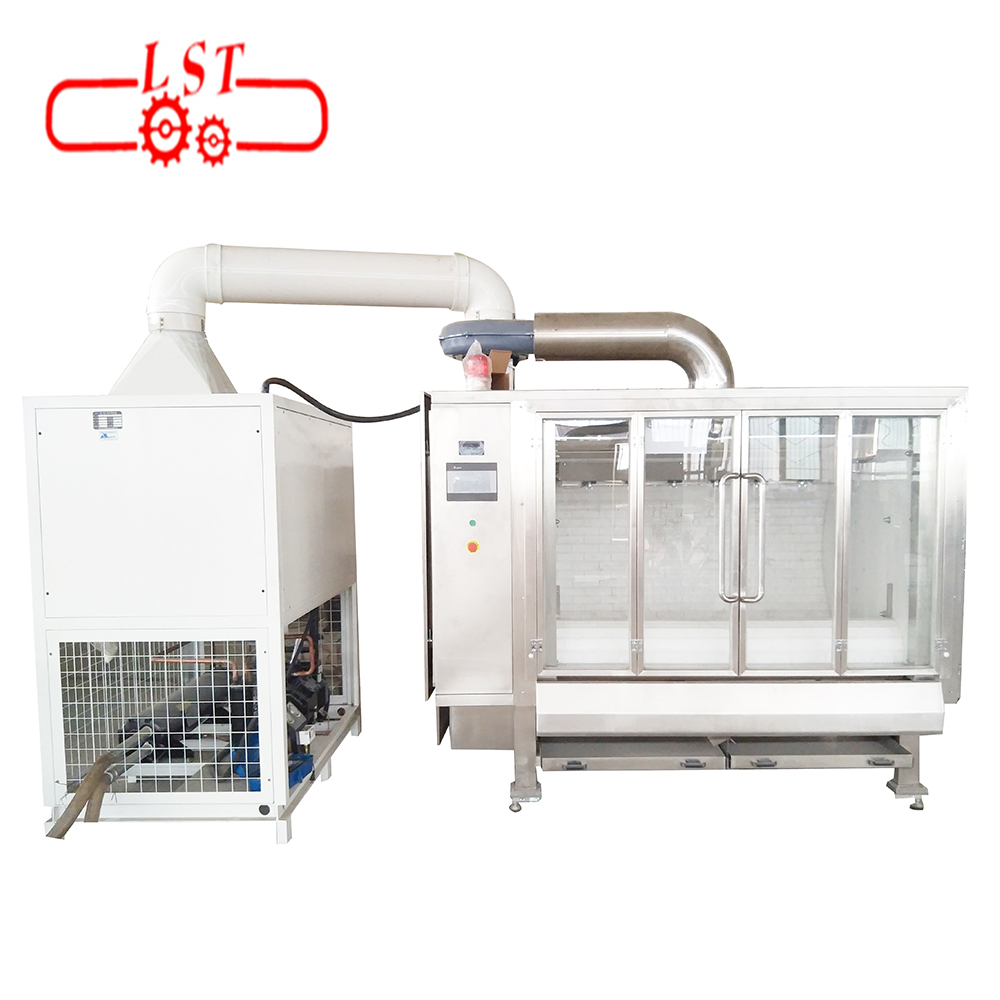

    • (3).8P industrial refrigeration units(water cooling and forced air cooling)
    • (4).chocolate polishing machine

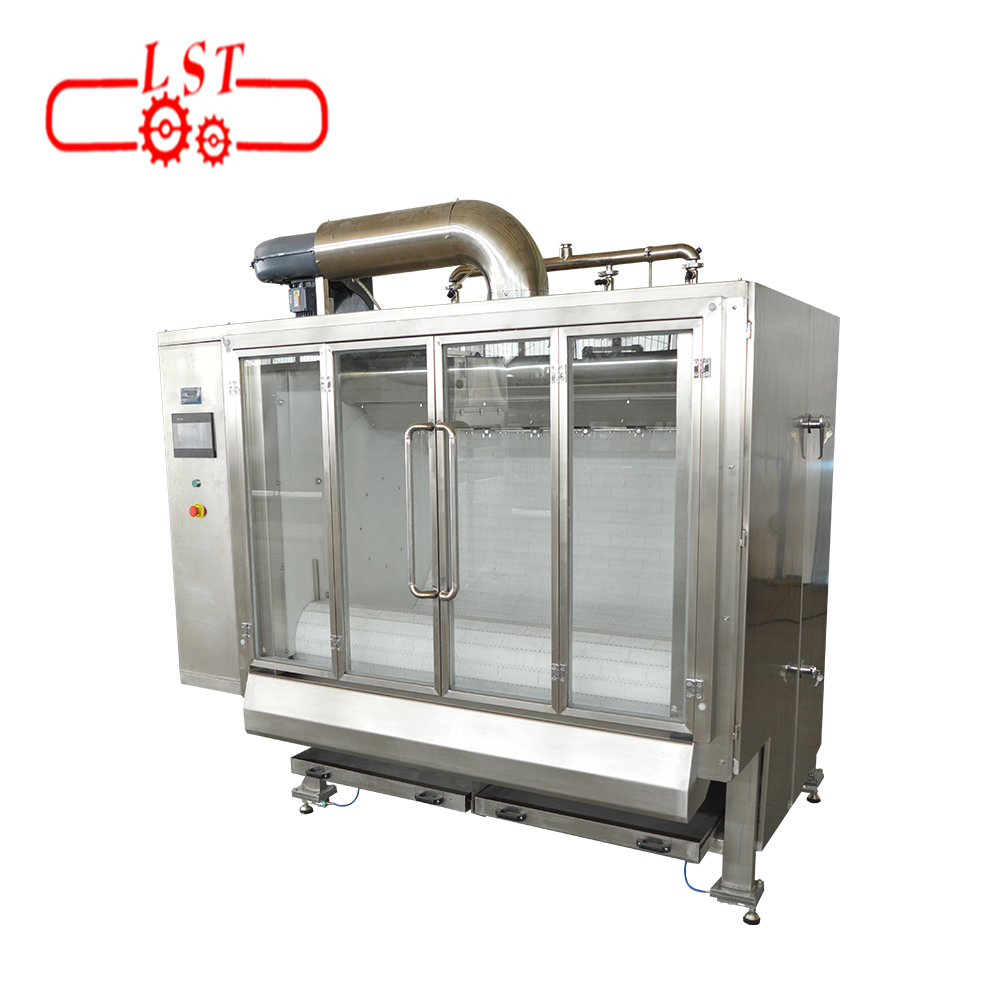

    Factory Direct Sales High Quality Full Automatic Chocolate Coating Machine
    Factory Direct Sales High Quality Full Automatic Chocolate Coating Machine
    Production condition
    • 1Single room for chocolate coating machine and chocolate coating machine .Must install air-condition and Dehumidity dryer to make room’s temperature ≤20℃ and humidity ≤50%.
    • 2Both machine can be installed on one room,room area is about 15square.
    • 3Chocolate after enrob,need air dry to determine on temperature10℃-15℃ and humidity ≤50%.
    • 44Mpa compressed air supply,must have air supply connect scochet.

    When sign contract ,buyer must explain power supply and frequency first.

    Production Condition and Requirements
    • 5Cooling units’s temperature range 5-10℃,room temperature range 14-20℃,humidity≤50%.
    • 6Cold storage temperature range 10-15℃,cold storage time range 8-10 hours ,to guarantee chocolate surface’s smooth and harden.
    • 7Debugger will debug machine and both parts will accept machine according above requirements.If buyer’s chocolate and production condition is not fit ,then make chocolate’s instability and disqualification ,seller won’t take any responsibility.
    Company INFO
    Factory Direct Sales High Quality Full Automatic Chocolate Coating Machine

    Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.

    Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.

    We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.

    Factory Direct Sales High Quality Full Automatic Chocolate Coating Machine
    Our Services
    Factory Direct Sales High Quality Full Automatic Chocolate Coating Machine
    Pre-sale Services
    • 1. We’ll guide you to choose the most suitable machines for your project.
    • 2. When sign contract, we will notify the power supply voltage and frequency.
    • 3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.
    After-sale Service
    • 1. Technical service provided.
    • 2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account.
    • 3. One year warranty for standard operation. Life-time technical support provided.
      Service charge applies for incorrect operation or artificial damage.
