Full automatic chocolate praline tablets making production line price

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Condition:: New

Applicable Industries:: Food & Beverage Factory

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: Egypt, Turkey, United Kingdom, United States, Germany, Saudi Arabia, Indonesia, Pakistan, India, Thailand, Malaysia, South Korea, Algeria, None

Showroom Location:: None

Brand Name:: LST

Place of Origin:: Sichuan, China

Voltage:: 380V/50HZ/Three Phase

Power(W):: 24Kw

Dimension(L*W*H):: 18000*1500*1900mm

Weight:: 4000kg

Certification:: CE

Application fields:: Snack food factory

Raw material:: chocolate, chocolate food

Output product name:: chocolate biscuit

Key Selling Points:: Multifunctional

Application:: Chocolate

Product name:: chocolate production line

Matched machine:: chocolate production machine

Usage:: chocolate/candy/food moulding/depositing

Capacity:: 12-24 moulds per min

Compressor:: 0.4Mpa

Feature:: 1D/2D/3D depositing

Type:: direct line type

Service:: good any supports

Warranty:: 1 year

Machinery Function:: depositing, moulding

Full automatic chocolate praline tablets making production line price

Product Description

Full automatic chocolate praline tablets making production line price

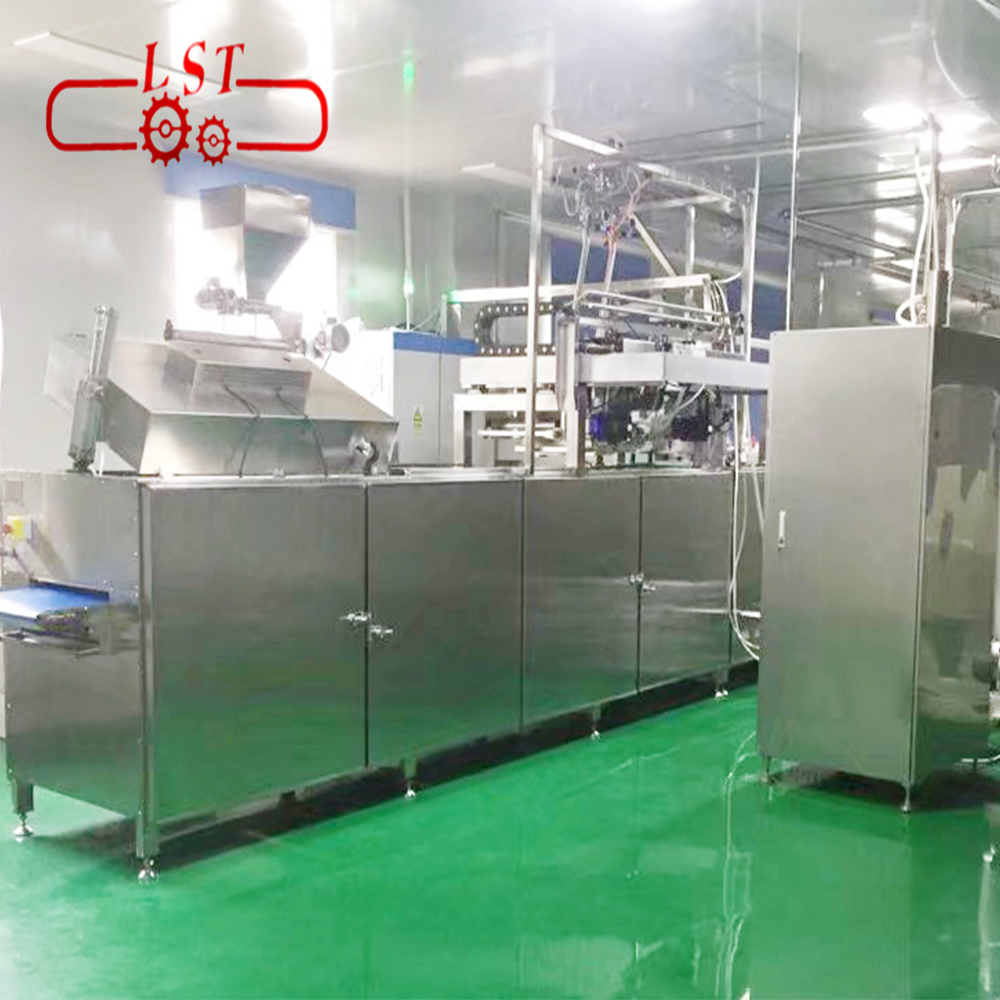

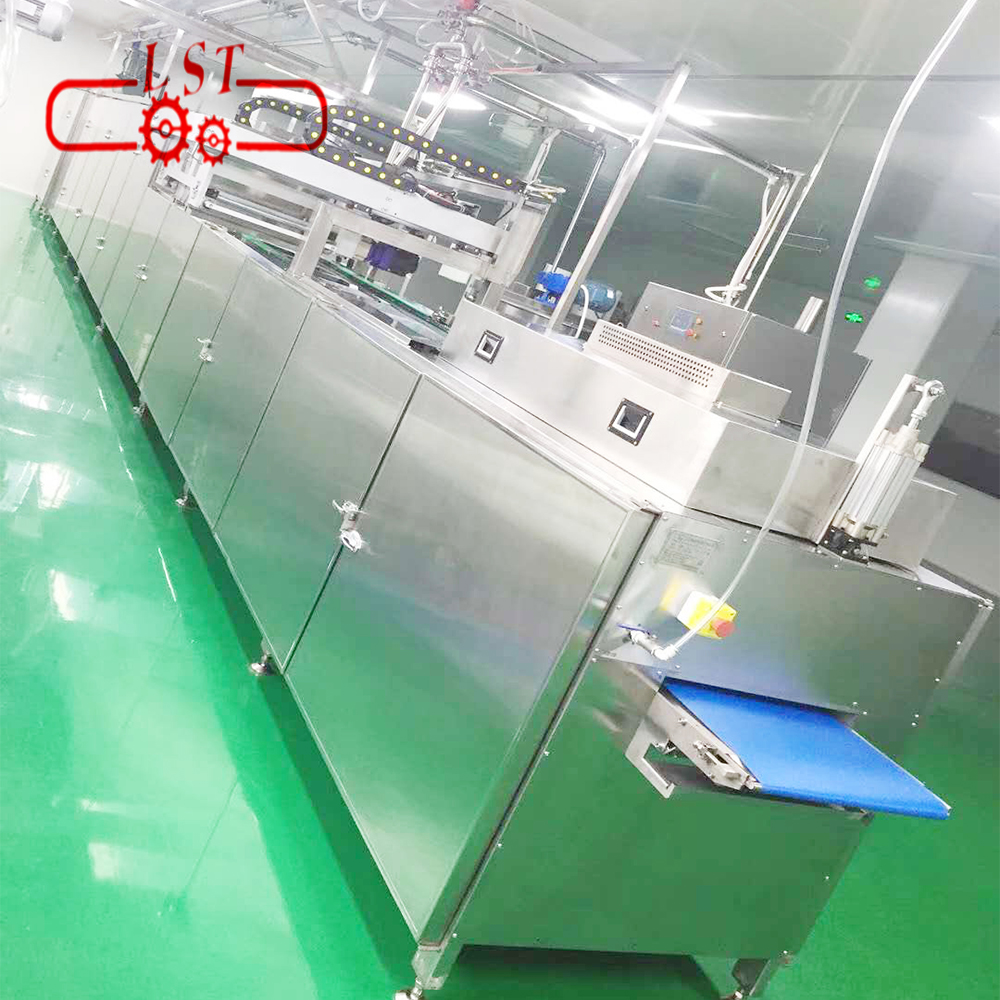

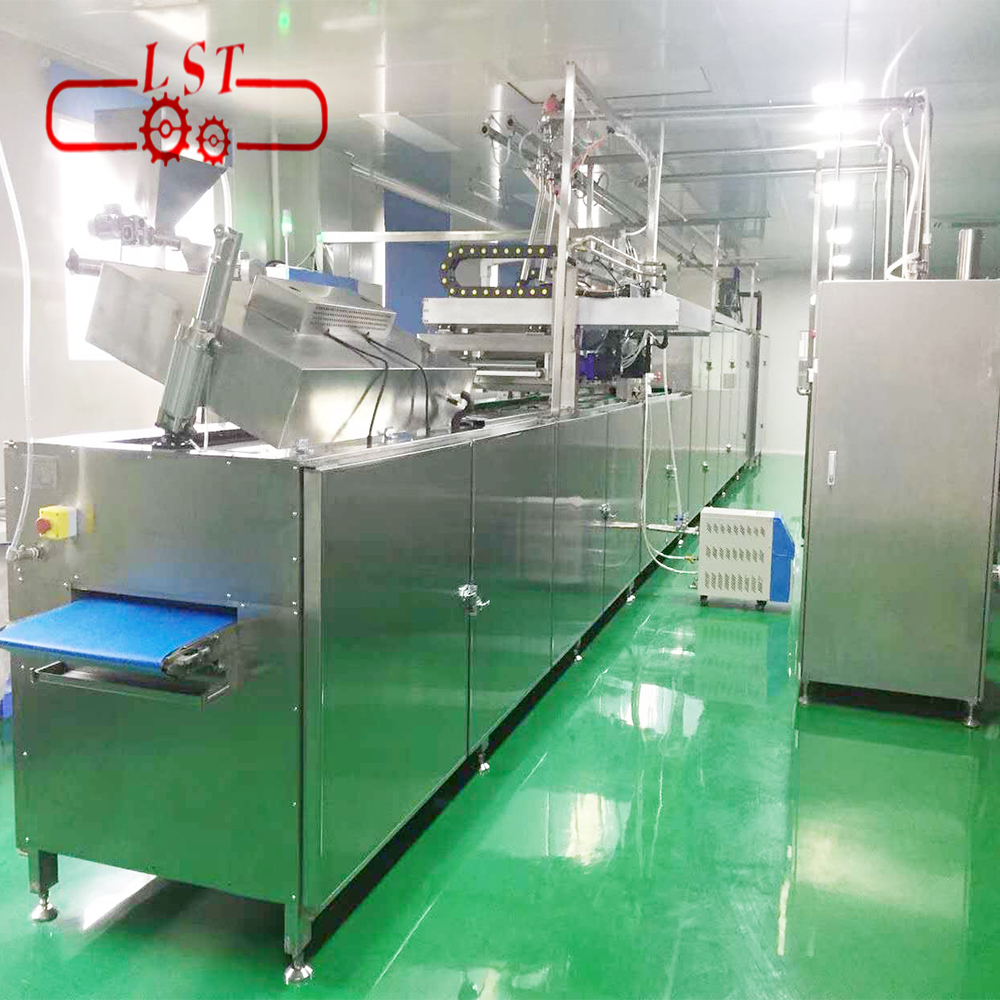

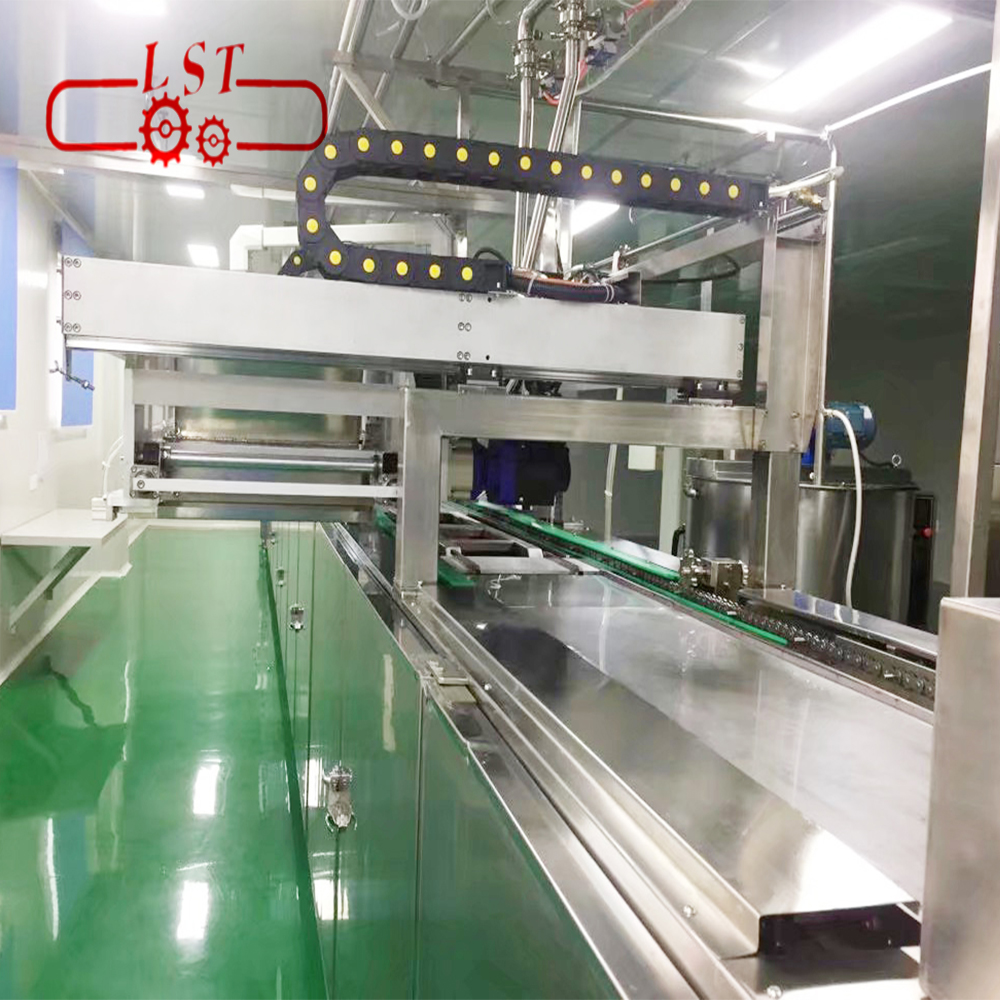

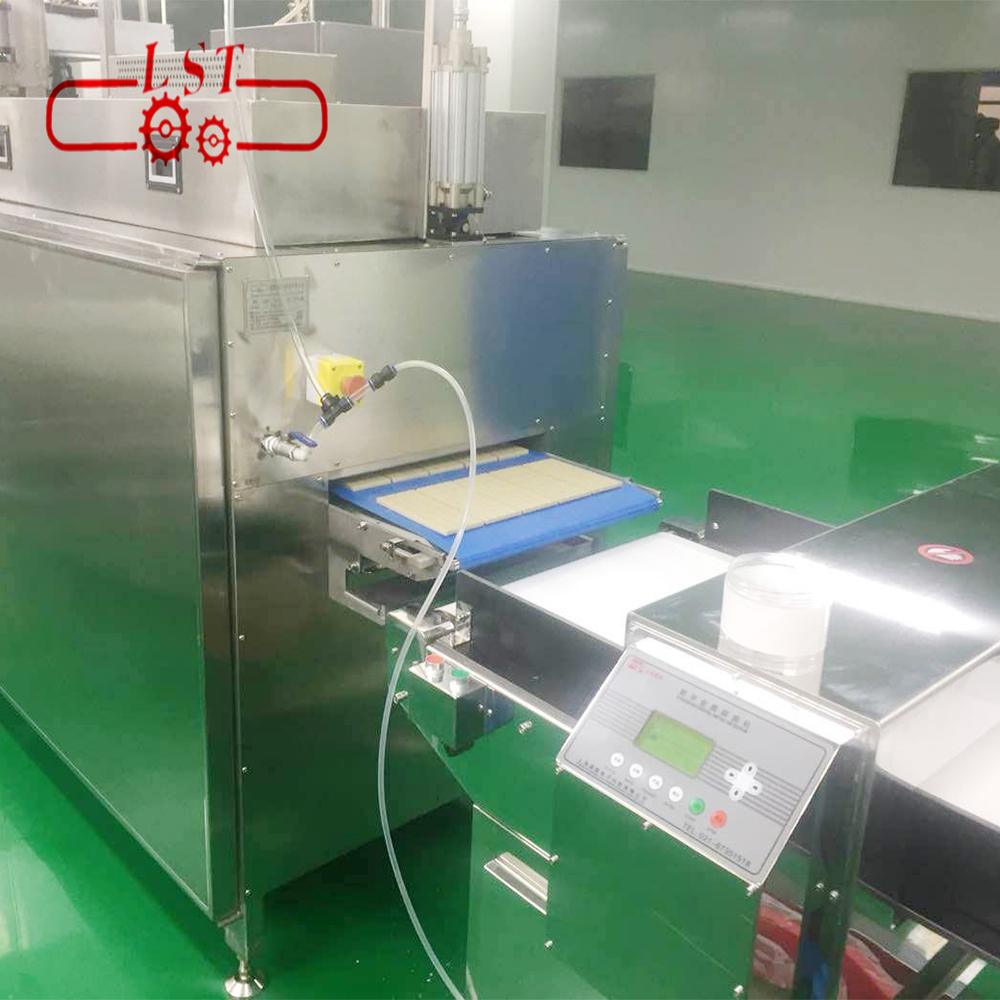

This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.

Model	LST-1000
Production capacity( kg/shift)	200~700
Speed of stroke( n/min)	6~12
Mould heating and fan power	6kw
Mould temperature	24~45
Vibrating motor power	1.1kw
Vibrating time	30~60s
Depositing motor power	1.5kw
Stirring motor power	0.5kw
Circulating hot-water power	4.5kw
Circulating pipe water pump power	0.5kw
Mould size and numbers needed	510x225x30mm
Mould size and numbers needed	400pieces needed
Compressed air consumption	2.5m3/min
Compressed air pressure	0.4Mpa
Gross weight (kg)	6000kg
Dimension	1.Mould heating unit:
	L1700xW1045xH950mm
	2.Depositing unit:
	L1575xW1045xH1130mm
	3.Vibrating unit:
	L1500xW1045xH850mm

Production process

Mould heating-chocolate depositing-mould vibrating-chocolate cooling-mould vibrating

Main fatures & advantages

1.Full automatic PLC controlled,highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.

2.The Beckhoff Remote Control System from Germany enables us to modify system parameters,diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.

3.There are a lot of add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler,etc. Customers can choose these add-on devices accordingly and add or change the add-on devices for new product whenever needed.

4.The high configuration production line can be combined by all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.

5.There are single depositor,double depositor or more to meet different product production need. The special mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.

6.To produce different kinds of chocolate products, you only need to change a depositor or the chocolate

syrup distribution plate that used with the depositor.

7.The mobile depositor enables the mobile mould-follow-depositing function, which greatly increase the output of the production line by 20%.

8.With plastic guide-rail protection, the chain will not contact with spilled chocolate,which meets the overall food hygiene requirements.

Products show

Hot Sale

Company INFO

Full automatic chocolate praline tablets making production line price

Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.

Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.

We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.
