Full automatic high quality production line of chocolate from China

    product detail

    Overview
    Quick Details
    Brand Name:
    LST
    Place of Origin:
    Sichuan, China
    Voltage:
    380V/50HZ/Three Phase
    Power(W):
    24Kw
    Dimension(L*W*H):
    18000*1500*1900mm
    Weight:
    4000kg
    Certification:
    CE
    Warranty:
    1 year
    Product name:
    chocolate production line
    Matched machine:
    chocolate moulding machinery
    Usage:
    chocolate/candy/food moulding/depositing
    Raw material:
    chocolate food
    Capacity:
    12-24 moulds per min
    Compressor:
    0.4Mpa
    Feature:
    1D/2D/3D depositing
    Type:
    direct line type
    Color:
    as your requirements
    Service:
    good any supports
    Condition:
    New
    Application:
    Chocolate
    After-sales Service Provided:
    Engineers available to service machinery overseas
    Full automatic high quality production line of chocolate from China
    Product Description
    Full automatic high quality production line of chocolate from China

    This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.

    Model LST-1000
    Production capacity( kg/shift) 200~700
    Speed of stroke( n/min) 6~12
    Mould heating and fan power 6kw
    Mould temperature 24~45
    Vibrating motor power 1.1kw
    Vibrating time 30~60s
    Depositing motor power 1.5kw
    Stirring motor power 0.5kw
    Circulating hot-water power 4.5kw
    Circulating pipe water pump power 0.5kw
    Mould size and numbers needed 510x225x30mm
    400pieces needed
    Compressed air consumption 2.5m3/min
    Compressed air pressure 0.4Mpa
    Gross weight (kg) 6000kg
    Dimension 1.Mould heating unit:
    L1700xW1045xH950mm
    2.Depositing unit:
    L1575xW1045xH1130mm
    3.Vibrating unit:
    L1500xW1045xH850mm
    Production process
    Mould heating-chocolate depositing-mould vibrating-chocolate cooling-mould vibrating
    Main features & advantages
    • 1 Full automatic PLC controlled,highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.
    • 2 The Beckhoff Remote Control System from Germany enables us to modify system parameters,diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.
    • 3 There are a lot of add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler,etc. Customers can choose these add-on devices accordingly and add or change the add-on devices for new product whenever needed.
    • 4 The high configuration production line can be combined by all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.
    • 5 There are single depositor,double depositor or more to meet different product production need. The special mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.
    • 6 To produce different kinds of chocolate products, you only need to change a depositor or the chocolate syrup distribution plate that used with the depositor.
    • 7 The mobile depositor enables the mobile mould-follow-depositing function, which greatly increase the output of the production line by 20%.
    • 8 With plastic guide-rail protection, the chain will not contact with spilled chocolate,which meets the overall food hygiene requirements.

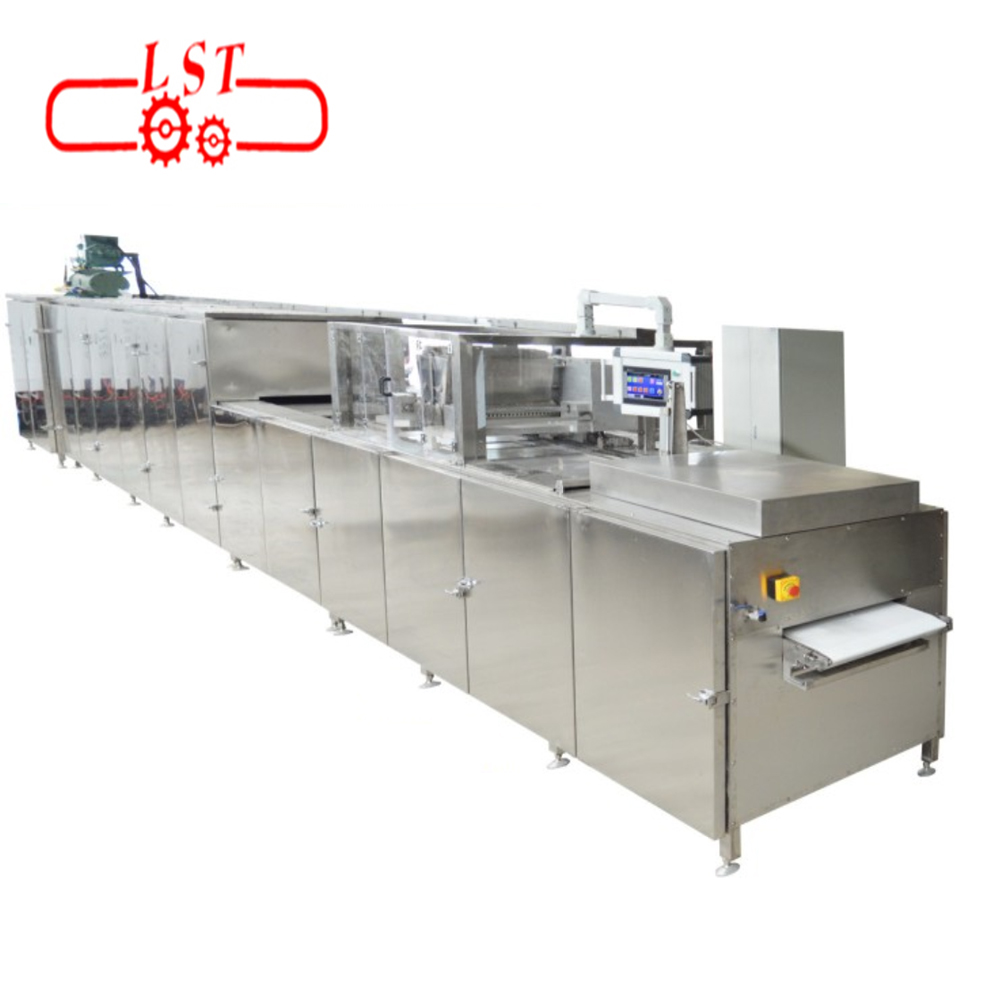

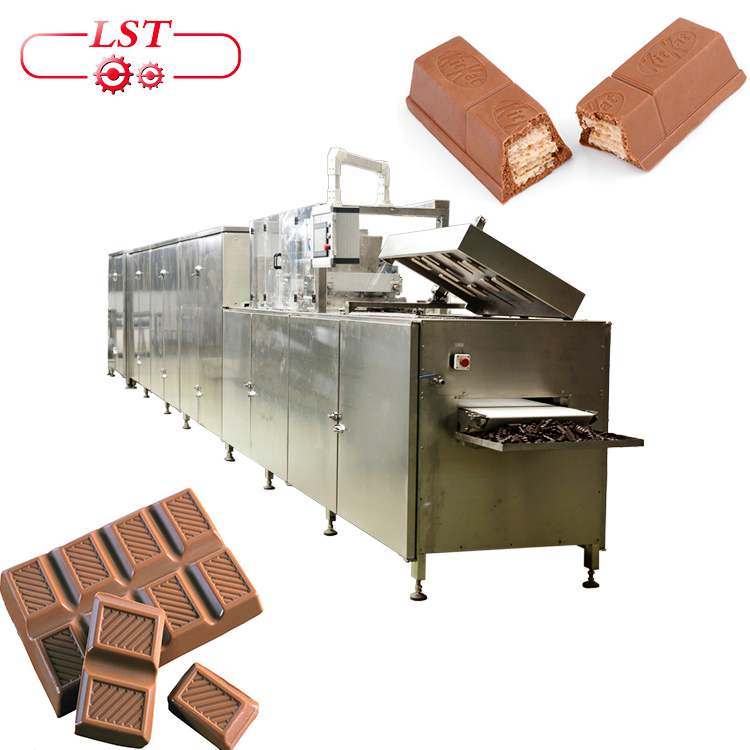

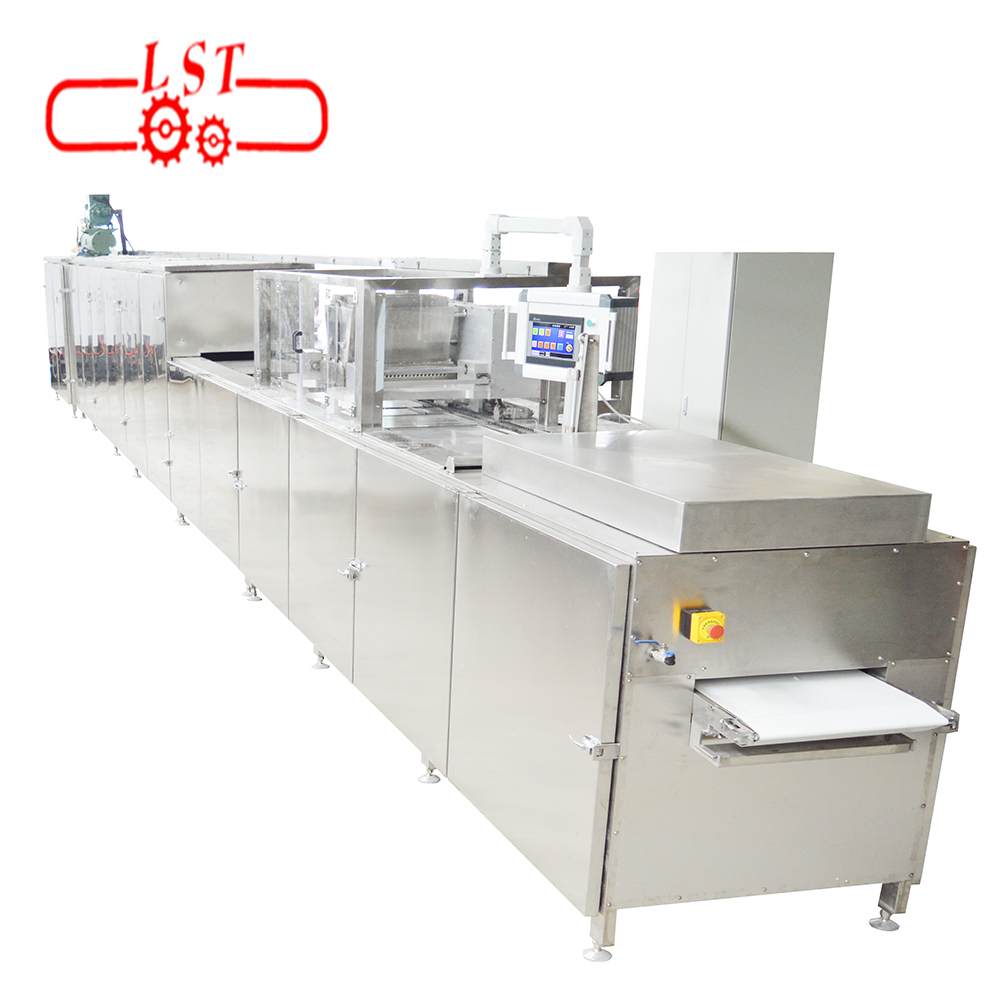

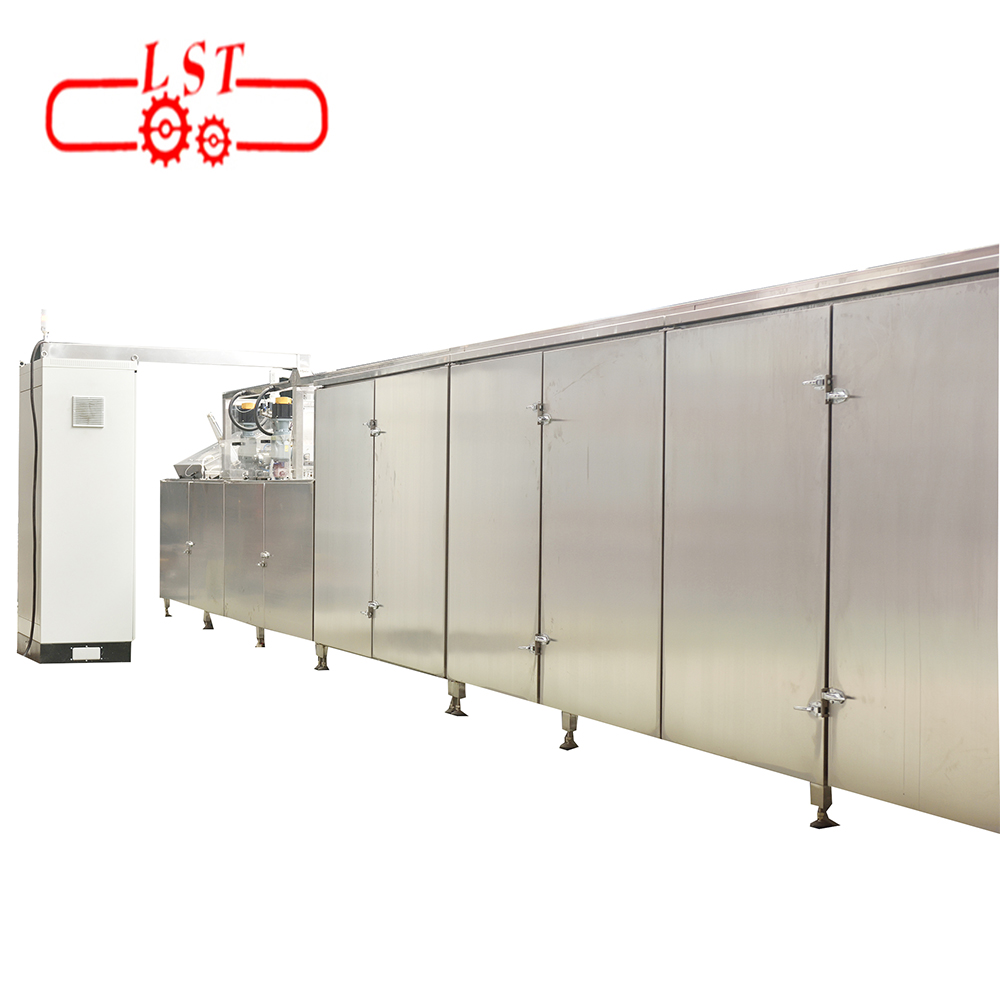

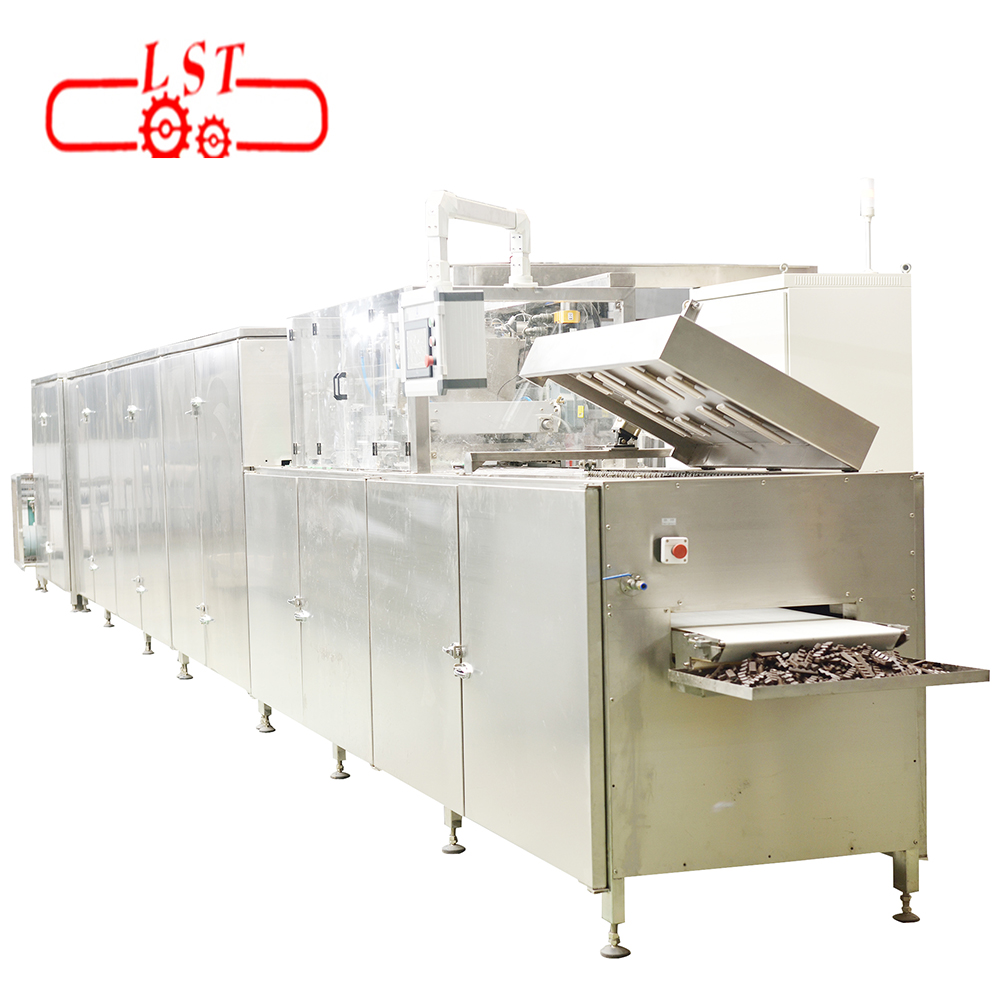

    Products show
    Full automatic high quality production line of chocolate from China
    Full automatic high quality production line of chocolate from China
    Company INFO
    Full automatic high quality production line of chocolate from China

    Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.

    Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.

    We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.

    Full automatic high quality production line of chocolate from China
    Our Services
    Full automatic high quality production line of chocolate from China

    Pre-sale Services

    1. We’ll guide you to choose the most suitable machines for your project.

    2. When sign contract, we will notify the power supply voltage and frequency.

    3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

    After-sale Service

    1. Technical service provided.

    2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account.

    3. One year warranty for standard operation. Life-time technical support provided. Service charge applies for incorrect operation or artificial damage.
