Fully Automatic Hard Candy Packing Machine Small Sugar Chocolate Ball Packing Machine

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Warranty:: 1 year

Application:: Food, Medical

Packaging Material:: Plastic

Type:: Multi-Function Packaging Machine

Applicable Industries:: Food & Beverage Factory, Food Shop

Condition:: New

Function:: Wrapping

Packaging Type:: Foil

Automatic Grade:: Automatic

Driven Type:: Electric

Voltage:: 380 V,50 Hz,3-Phase

Place of Origin:: Sichuan, China

Brand Name:: LST

Dimension(L*W*H):: 6*2*1.8m

Certification:: CE

After-sales Service Provided:: Field installation, commissioning and training

Key Selling Points:: High Productivity

Product name:: Chocolate Folding Packaging Machine

Model Number:: QB-SP100

Packing Speed:: 300-500 pics/min/120-300pics/min

Product Dimensions(L*W* H):: 5-32 mm/5-60mm

Air Supply:: 0.6 MPa

MOQ:: 1

Material:: SUS304

Product Description

Packing Machine Feature

1. Fully automatic program-controlled with servo motors, highly stable and reliable
2. Flexible in color sensor settings, paper feeding self-tracking and correction during packing, providing a consistent packing style and a good product appearance
3. Self-protection for abnormal product
4. Online product feeding status monitoring – Only feeding wrapping paper when product arrives desired position, which keeps paper consumption at an extremely low level
5. Online wrapping paper status monitoring – automatic pause when wrapping paper is running our or breaks

Product Descriptio

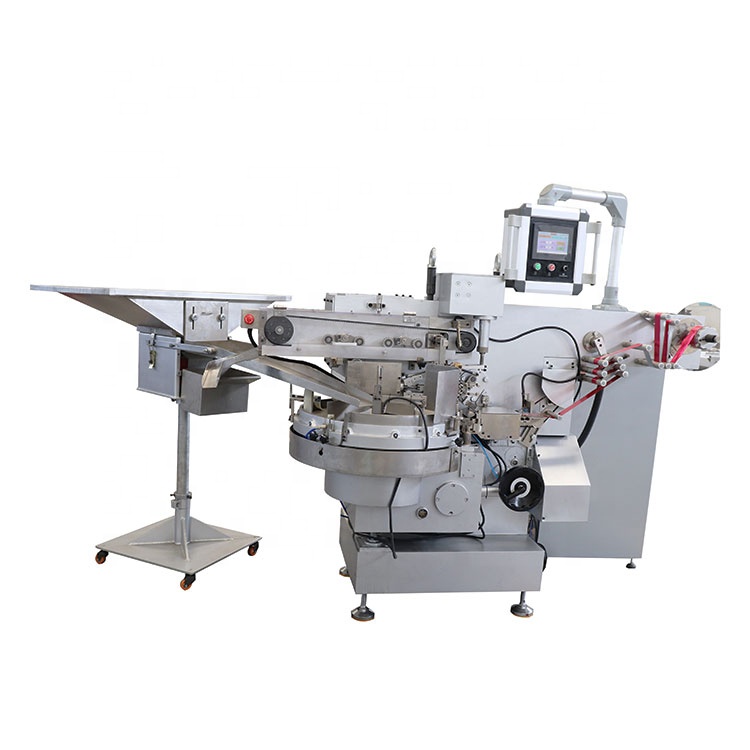

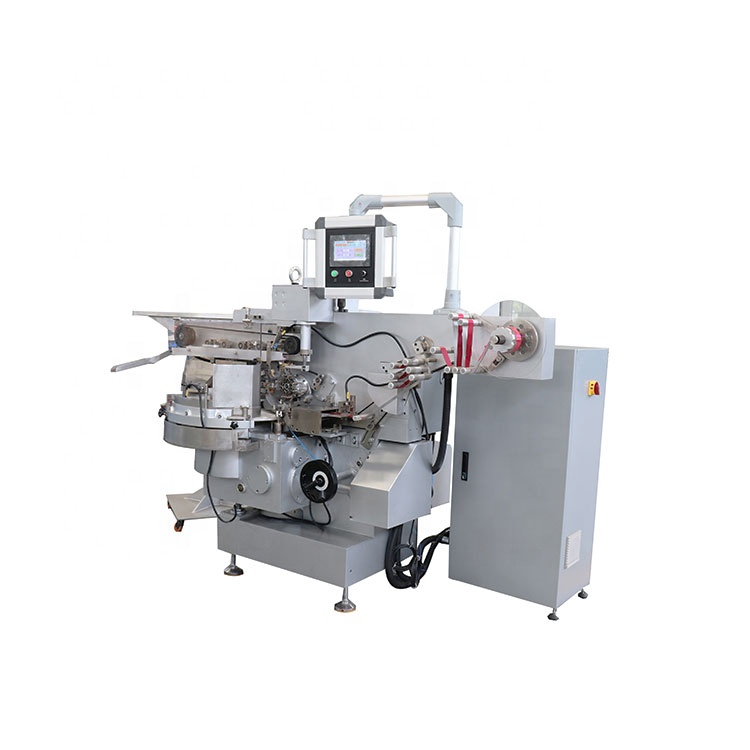

LST QB-SP100 series machines are mainly used for the automatic packing spherical and ellipsoid chocolate. The model uses single layer aluminum foil as packaging material. The unique design ensures aluminum foil closely attached to the surface of product, providing an excellent packing performance.

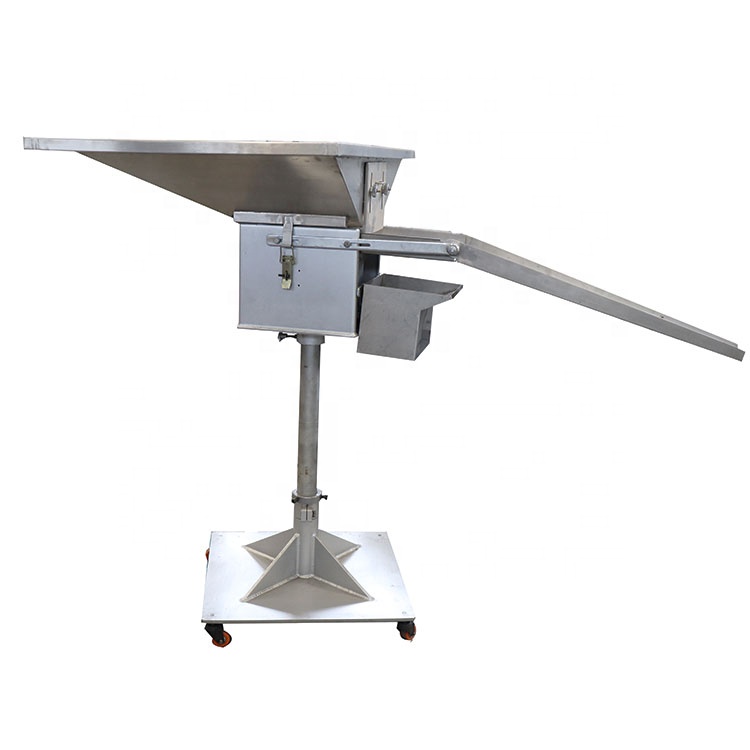

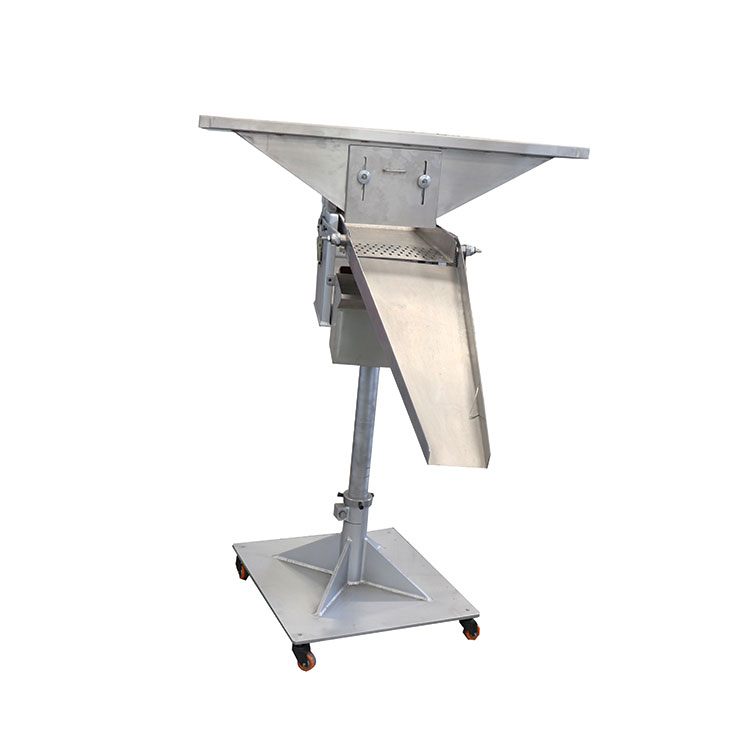

Shake hopper matched with ball/egg chocolate/candy/other material packing machine,high speed and easily operate.

_{Parameters Table}
Product Name	Full Automatic Spherical Candy/Chocolate Foil Packing Machine
Model Number	QB-SP100
Packing Speed	300-500 pics/min/120-300pics/min
Product Dimensions(LW H)	5-32 mm/5-60mm
Total Power	3kw
Power Supply	380 V, 50 Hz, 3-Phase
Air Supply	0.6 MPa
Installation Plan(mm)

ChengDu LST Science & Technology Co., Ltd

Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.
Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel, Peru and many other countries in the world.
We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.

Our Service

Pre-Sales Service

1.We'll guide you to choose the most suitable machines for your project.
2.When sign contract, we will notify the power supply voltage and frequency.
3.Strict with complete testing and well adjustment according to customers' requirement before shipment.

After-Sales Service

1. Technical service provided.

2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians' installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer's account. A service charges of day per technician applies.

Certification

FAQ

1. Payment: T/T in advance. 40% down payment, 60% against acceptance from customers
2. Strict with complete testing and well adjustment according to customers' requirement before shipment.
3. Customization is available.
5. What's the information should I let you know if I want to get a full quotation?
Bag type, size, weight of material, type of material, thickness, printing, colors, quantity
6. When we create our own artwork design, what kind of format is available for you?
The popular format: AI, JPEG, CDR,PSD, TIF
7. Wooden case packed with machine and English manule
8. Transformer is provided
9. Technical manual in English is provided
10. The machine is stainless steel
11. In the line of exporting packing material
