chocolate factory machines chocolate molding line

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Applicable Industries:
Food & Beverage Factory
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
330/380V
Power(W):
24
Dimension(L*W*H):
18000*1500*1900mm
Weight:
4000kg
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Application fields:
Snack food factory
Raw material:
Nuts, CHOCOLATE
Condition:
New
Application:
Biscuit

chocolate factory machines chocolate molding line

Product parameters






Line Type

Single Depositor

Double Depositors

Triple Depositors

Speed

12-25 moulds/m

12-25 moulds/m

12-25 moulds/m

Depositor

Fixed or

mobile One-Shot depositor

Fixed or

mobile One-Shot depositor

Fixed or

Mobile One-Shot depositor

Filling Rate

≤70%

≤70%

≤70%

Mould-Lifting

Support,Optional

Support,Optional

Support,Optional

Remote Debugging

Support,Optional

Support,Optional

Support,Optional

Pull-Out Depositor

Support,Optional

Support,Optional

Support,Optional

Mould Amount

340pcs

355pcs

375pcs

Mould Size

510-225-30/300-225-30mm

510-225-30/300-225-30mm

510-225-30/300-225-30mm

Cooling Tunnel

0-15℃,20HP,17KW

0-15℃,20HP,17KW

0-15℃,20HP,17KW

Total Power

42kw

52kw

60kw

Weight

3300kg

3900kg

4500kg

Dimensions

13700× 1200 × 1800

16000× 1200 × 1800

18360× 1200 × 1800

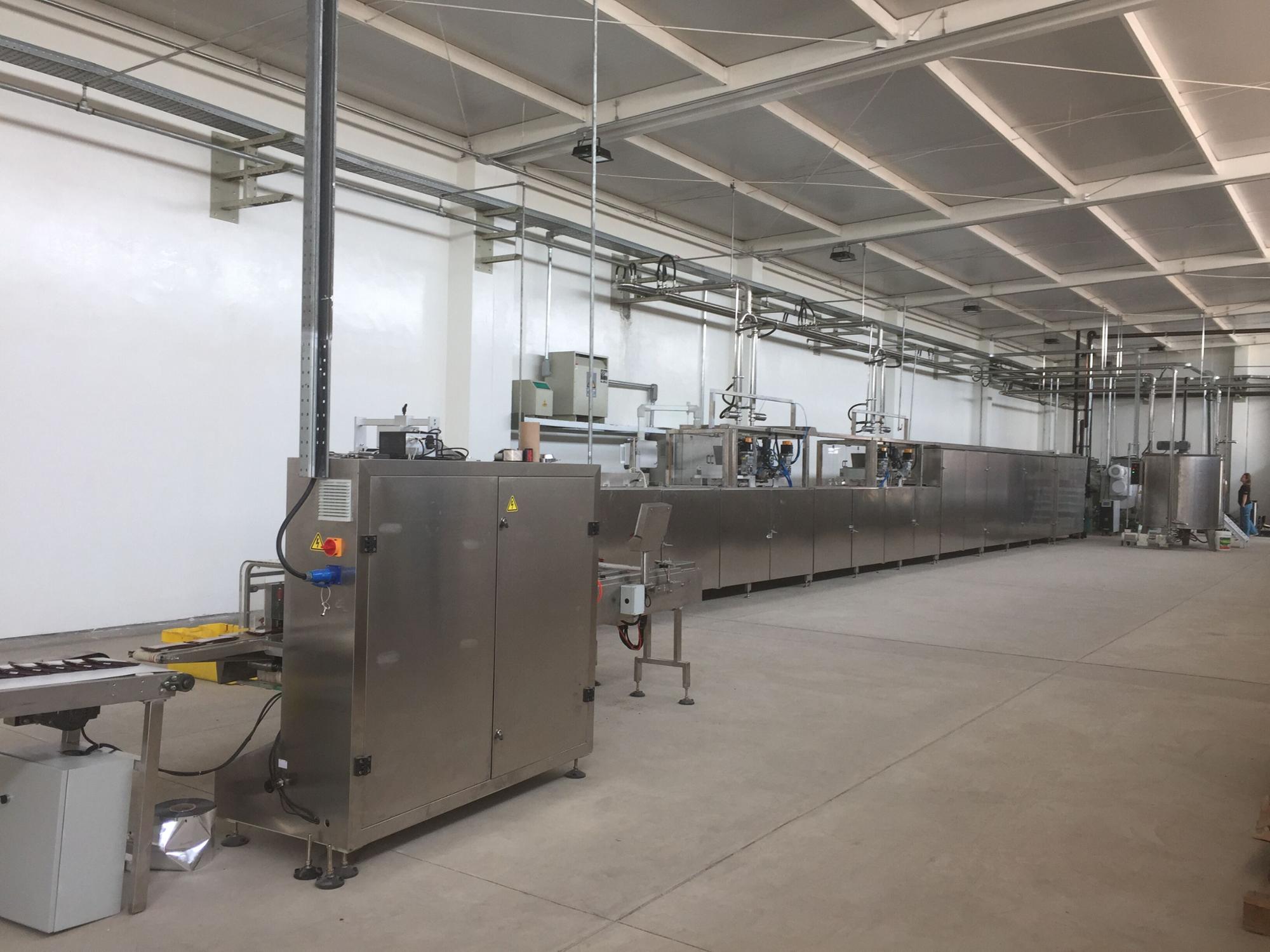

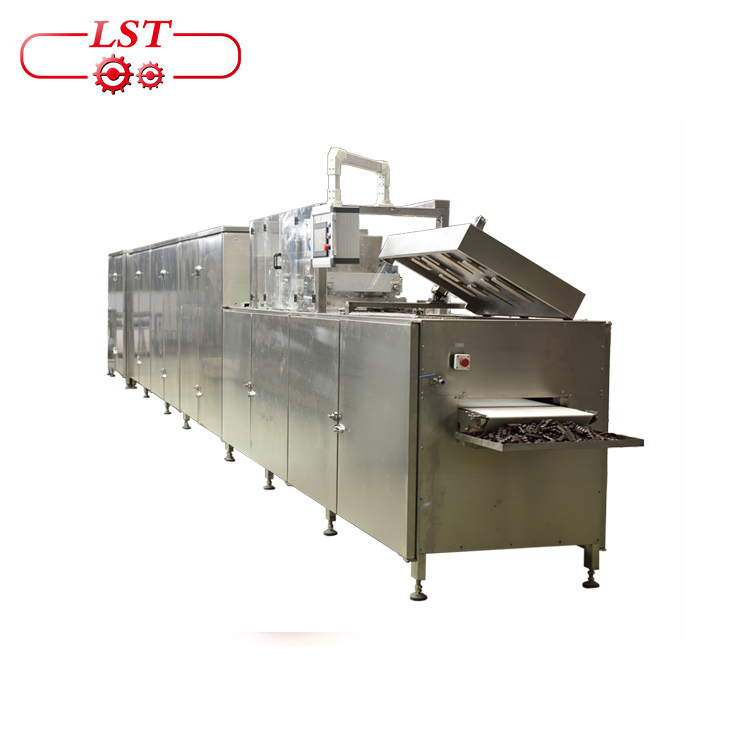

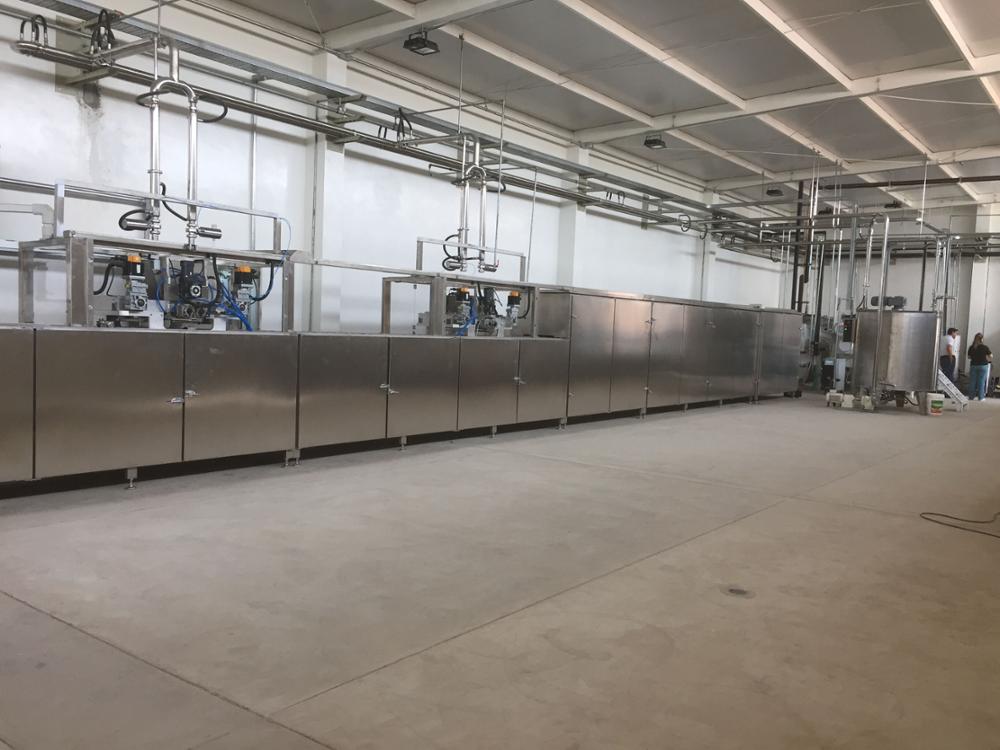

This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.


Main Features & Advantages

1.Full automatic PLC controlled,highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.

2.The Beckhoff Remote Control System from Germany enables us to modify system parameters,diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.

3.There are a lot of add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler,etc. Customers can choose these add-on devices accordingly and add or  change the add-on devices for new product whenever needed.

4.The high configuration production line can be combined by all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.

5.There are single depositor,double depositor or more to meet different product production need. The special mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.

6.To produce different kinds of chocolate products, you only need to change a depositor or the chocolate

syrup distribution plate that used with the depositor.

7.The mobile depositor enables the mobile mould-follow-depositing function, which greatly increase the output of the production line by 20%.

8.With plastic guide-rail protection, the chain will not contact with spilled chocolate,which meets the overall food hygiene requirements.


There are many other add-on devices,such as auto mould loader,sprinkler,biscuit feeder,Conche, tempering machine,decorating machine and many more. You can add whatever part you need to make it a full automatic production line and produce different kinds of products.
