Full automatic chocolate making machine wafer biscuit production line for food factory

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New, New
Applicable Industries:
Food & Beverage Factory
After Warranty Service:
Online support
Local Service Location:
Russia, Malaysia, South Korea
Showroom Location:
None
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
380V/50HZ/Three Phase
Power(W):
24Kw
Dimension(L*W*H):
18000*1500*1900mm
Weight:
4000kg
Certification:
CE
Application fields:
Snack food factory
Machinery Function:
depositing
Output product name:
chocolate
Key Selling Points:
Automatic
Application:
Chocolate
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
chocolate making machine
Matched machine:
chocolate moulding machinery
Usage:
chocolate/candy/food moulding/depositing
Capacity:
12-24 moulds per min
Compressor:
0.4Mpa
Color:
as your requirements
Service:
good any supports
Warranty:
1 year

Full automatic chocolate making machine wafer biscuit production line for food factory


Product Description

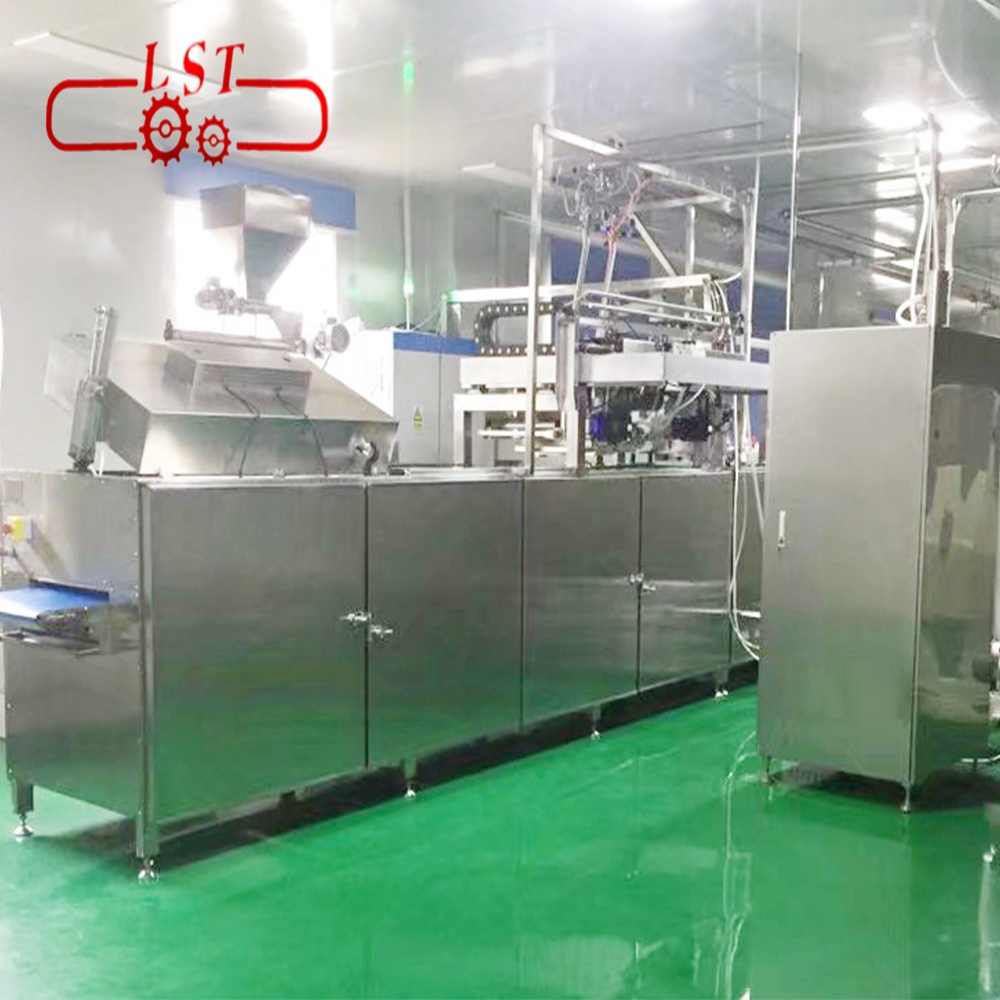

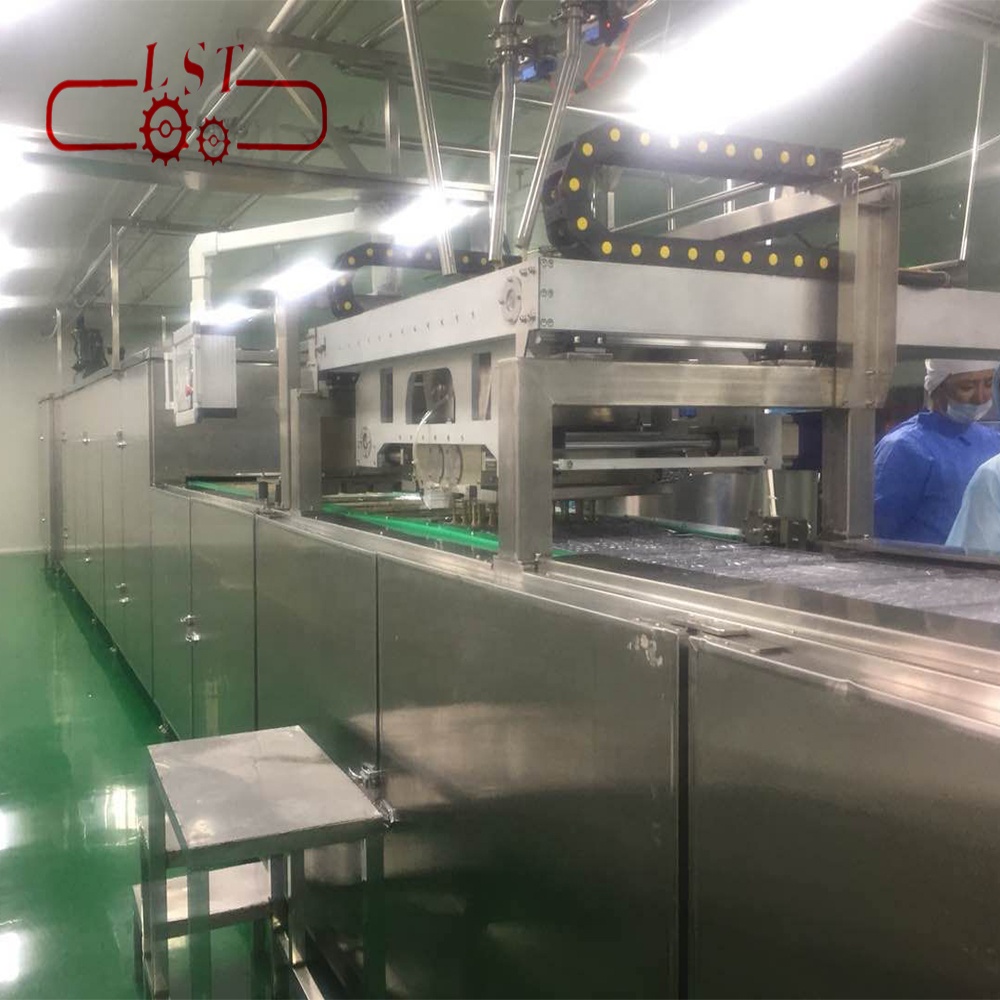

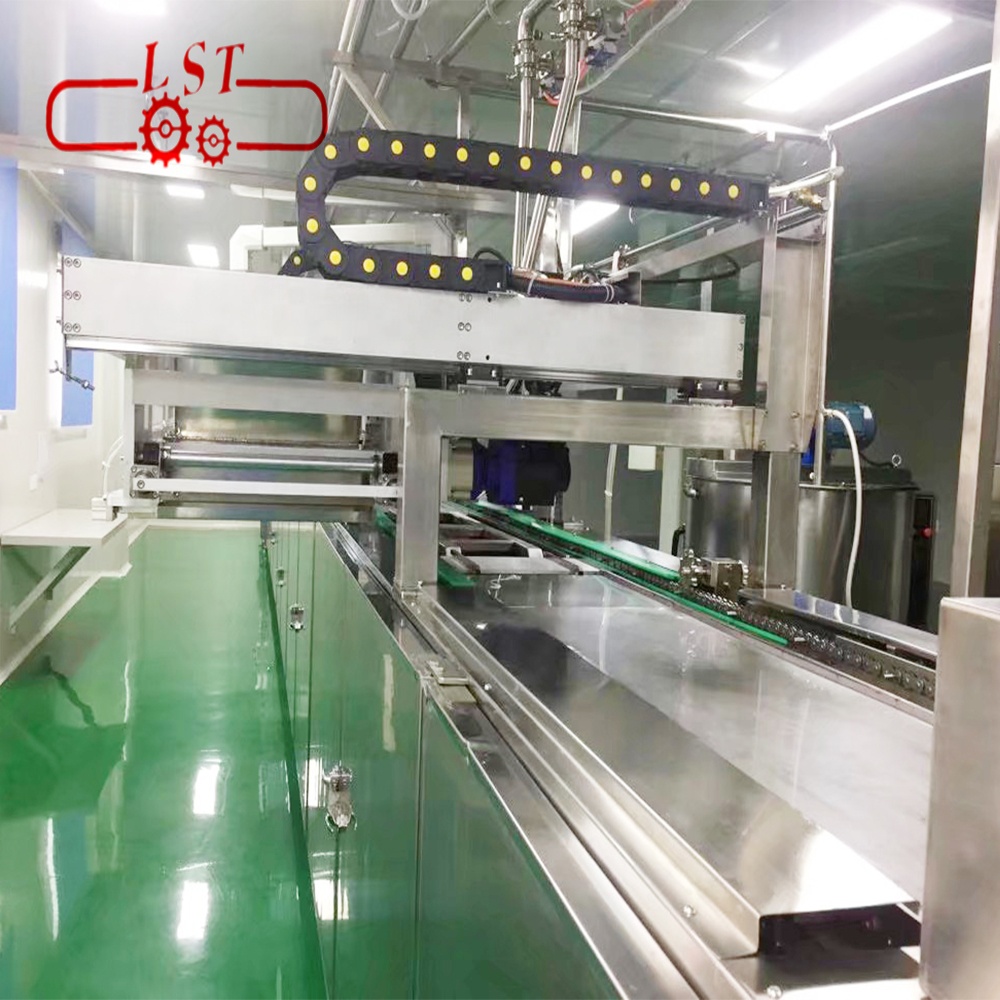

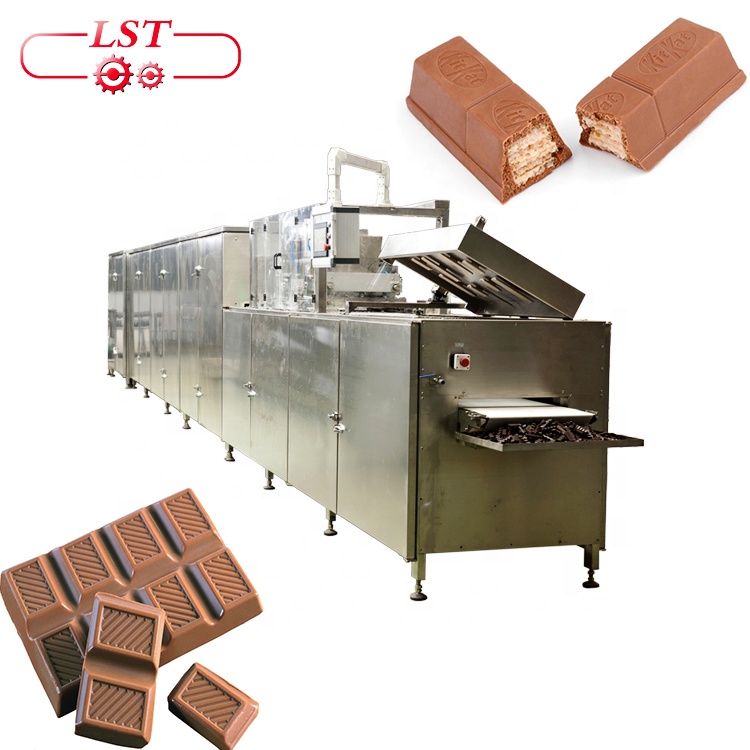

Full automatic cooling tunnel with chocolate making machine

This Chocolate depositing line is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.

Model

LST-1000

Production capacity( kg/shift)

200~700

Speed of stroke( n/min)

6~12

Mould heating and fan power

6kw

Mould temperature

24~45

Vibrating motor power

1.1kw

Vibrating time

30~60s

Depositing motor power

1.5kw

Stirring motor power

0.5kw

Circulating hot-water power

4.5kw

Circulating pipe water pump power

0.5kw

Mould size and numbers needed

510x225x30mm

400pieces needed

Compressed air consumption

2.5m3/min

Compressed air pressure

0.4Mpa

Gross weight (kg)

6000kg

Dimension

1.Mould heating unit:

L1700xW1045xH950mm

2.Depositing unit:

L1575xW1045xH1130mm

3.Vibrating unit:

L1500xW1045xH850mm

Production process

Mould heating-chocolate depositing-mould vibrating-chocolate cooling-mould vibrating

Main fatures & advantages

1.Full automatic PLC controlled,highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.

2.The Beckhoff Remote Control System from Germany enables us to modify system parameters,diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.

3.There are a lot of add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler,etc. Customers can choose these add-on devices accordingly and add or  change the add-on devices for new product whenever needed.

4.The high configuration production line can be combined by all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.

5.There are single depositor,double depositor or more to meet different product production need. The special mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.

6.To produce different kinds of chocolate products, you only need to change a depositor or the chocolate

syrup distribution plate that used with the depositor.

7.The mobile depositor enables the mobile mould-follow-depositing function, which greatly increase the output of the production line by 20%.

8.With plastic guide-rail protection, the chain will not contact with spilled chocolate,which meets the overall food hygiene requirements.
