High Quality Fully Automatic Chocolate Drops Depositor

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Applicable Industries:
Food & Beverage Factory
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
380V/400V
Power(W):
12kw
Dimension(L*W*H):
10000*850*1500
Weight:
1800kg
Certification:
CE ISO
Warranty:
1 Year
Application fields:
Snack food factory, Beverage Factory, Chocolate candy factory
Machinery Function:
chocolate drop depositor
Raw material:
Fruit, Nuts
Output product name:
chocolate
Application:
Chocolate
After-sales Service Provided:
Engineers available to service machinery overseas, Field installation, commissioning and training
Name:
Chocolate Coating machine
Customiz:
Support
Production Capacity:
500kg/h
Type:
COATING
Product name:
Chocolate bean machine

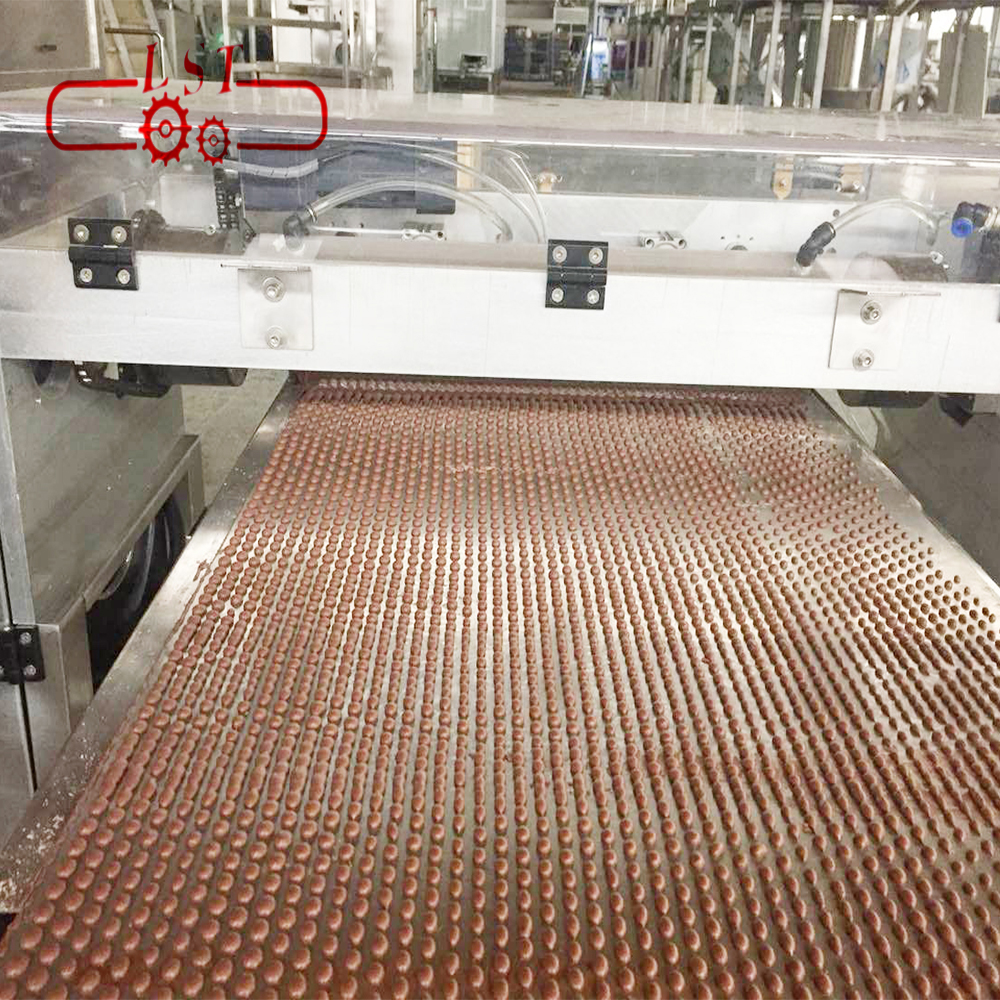

High Quality Fully Automatic Chocolate Drops Depositor

product display




Model

LST-DJ400

LST-DJ600

LST-DJ900

LST-DJ1000

LST-DJ1200

PLC

DELTA

DELTA

DELTA

DELTA

DELTA

Motor

DELTA SERVO-0.4kw

DELTA SERVO-0.4kw

DELTA SERVO-0.75kw

DELTA SERVO-0.75kw

DELTA SERVO-0.75kw

Belt Width

400mm

600mm

900mm

1000mm

1200mm

Drop Size

3-25mm

3-25mm

3-25mm

3-25mm

3-25mm

Drop Weight

0.5-3g

0.5-3g

0.5-3g

0.5-3g

0.5-3g

Pump

Durex 1.1kw

Durex 1.1kw

Durex1.5kw

Durex1.5kw

Durex 2.2kw

Tank

500L

500L

1000L

1000L

1000L

Pipe Filter

Φ63

Φ63

Φ63

Φ63

Φ63



1.Apply open-close type quick depositing. Productivity is high.

2.Depositing speed can be very high, cooling time is short. It is the ideal way of chocolate depositing for certain type of chocolate product.

3.Delta PLC, speed and product weight is controllable.

4.Delta Servo Motor.

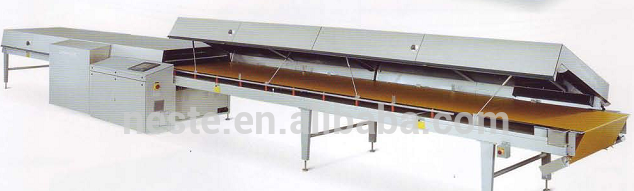

Cooling Tunnel:

Air cooling tunnels are universally used for product cooling after molding. Such as filled candy, hard candy, taffy candy, chocolate and many other confectionery products. After conveying to cooling tunnel, products will be cooled by special cooling air. Cooling effect is stable and the whole process is clean. Import compressor from USA and frequency converter greatly improves the stability and durability of this device.



Features and Advantages:

1.Cooling tunnel are equipped with 2 sets of 5P refrigeration systems. Direct touch cooling on bottom side and indirect top cooling design.

2.All stainless steel and food grade conveyor belt which in compliance with food hygiene and safety standard.

3.Two stages or even more stages of cooling, such as fresh air cooling and refrigeration cooling, etc. The multi-stage cooling design makes it energy saving, fast cooling, easy operation, etc.

4.Tunnel cover adopts the latest design concept, fully covered and sealed design greatly avoid energy loss.

5.The tunnel cover can be opened or removed easily, no tools needed, easy for cleaning.







Model

LST400C

LST600C

LST900C

Can be customized

Conveyor Width

400mm

600mm

900mm

Conveyor Speed

0-8 m/min

0-8 m/min

0-8m/min

Total Power

12kw 380V/400V

12kw 380V/400V

15kw 380V/400V

Net Weight

1800kg

2100kg

2400kg

Material

201

201

201

Cooling Unit

2*3P

2*5P

2*5P

Main Motor

1.5KW

2.2KW

3KW

Belt type

1.5MM thickness White PU belt

1.5MM thickness White PU belt

1.5MM thickness White PU belt

Cooling Temperature

5℃-10℃

5℃-10℃

5℃-10℃

Temperature decrease

20℃-40℃

20℃-40℃

20℃-40℃

Cooling speed

50-150kg/h

100-250kg/h

200-300kg/h

Dimension

10000*850*1500

10000*900*1500

15000*1300*1500



200/500L/1000L/2000L/3000L Feeding System:



Chocolate Holding Tank            Chocolate Pump



Model

GLC150L

GLC500L

GLC1000L

Capacity

150 L

500L

1000L

Chocolate Pump

0-0.5T/H

0-0.5T/H

0-0.5T/H

Total Power

7.5kw

7.5kw

7.5kw

Dimension

850*850*800

1500mm*1500*1700

1750mm*1750*1800

Weight

250kg

550kg

750KG



Note: It is necessary to add magnetic filter between depositor and pump.


Contact Supplier


Hot Sale


Main category


Company INFO


Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.



Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.



We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account. A service charges of USD 60.00/day per technician applies.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.
