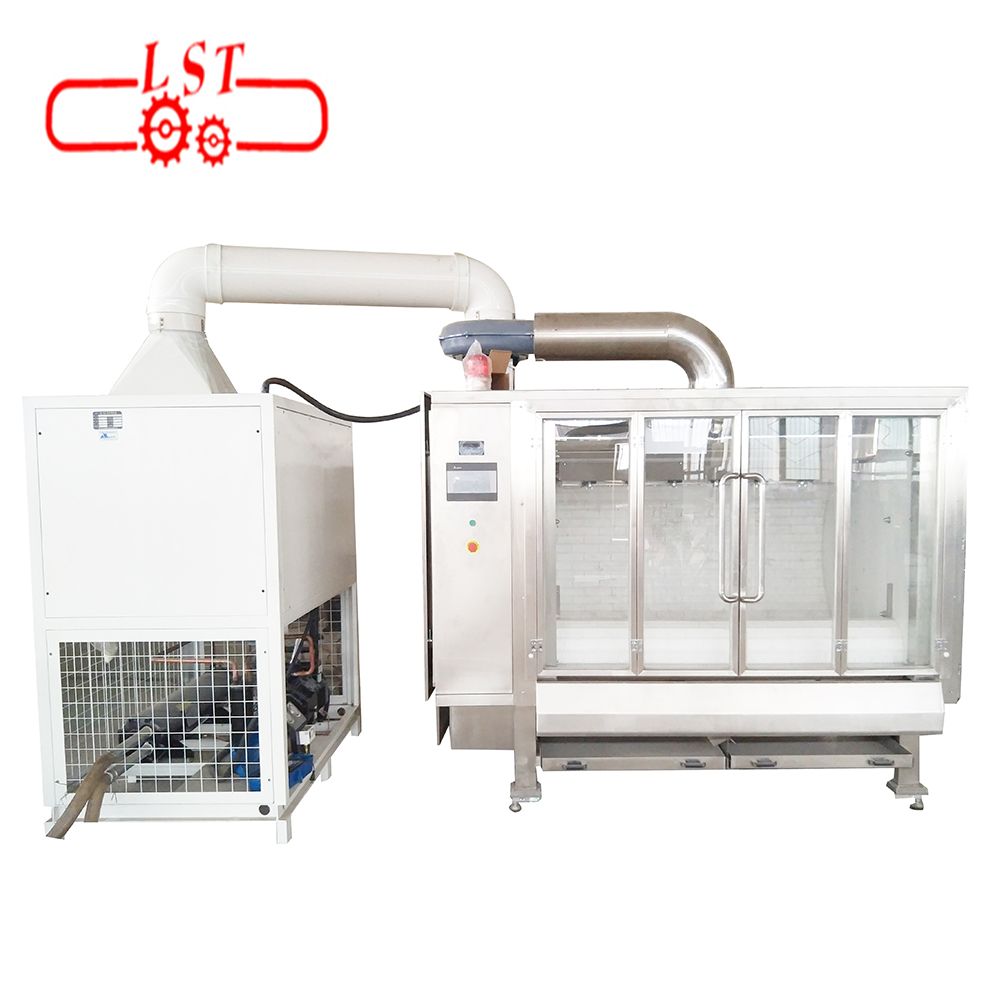

New Belt Type Auto Chocolate Machine for Chocolate Coating

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
380V/50HZ/Three Phase
Power(W):
24Kw
Dimension(L*W*H):
2550*1600 *2650mm
Weight:
800kg
Certification:
CE
Warranty:
1 year
Product name:
chocolate coating machine
Matched machine:
chocolate polishing machine
Usage:
chocolate/candy/food coating and polishing
Raw material:
peanuts, raisins , almonds M&M chocolate beans
Capacity:
200-400kg/h
Refrigerant:
matched cooling system
Compressor:
0.4Mpa
Color:
SS color
Feature:
easy Operate
Service:
good any supports
Condition:
New
Application:
Chocolate
After-sales Service Provided:
Engineers available to service machinery overseas
Product Description

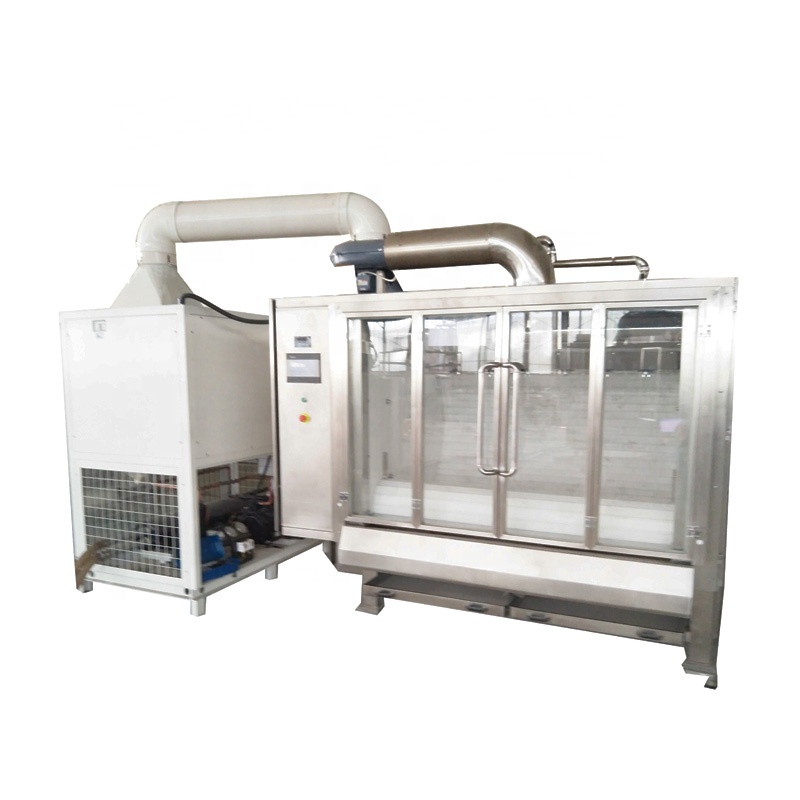

New Belt Type Auto Chocolate Machine for Chocolate Coating

Chocolate Coating&Molding machine and Chocolate Polishing machine are mainly used in stuffed products with peanuts,almonds,raisin,puffed rice balls,Jelly candies, hard candies ,QQ candies etc.



Output

200-400kg/h  330L/batch

Total Power

12KW

Dimension

2450-1650-2250mm

Net Weight

800kg

Belt Speed

5-20m/min

Belt Width

1650mm

Compressed Air

0.4MPa

Power Supply

380V 50HZ or customized

Production process

Chocolate coating -air dry and solidify-polishing

For special product

1.For fragile products and puffed product, Diameter ≥4mm, stuffed material ≤250 liters. The more fragile, the less material.

2.For products with corner and edges,round shape and consistent thickness is not suggested.

3.For adhesive product, put less adhesive material. In case materials stick together and effect the shaping.

4.For chocolate paste, it is necessary to filter before add in to avoid block of spray nozzle.

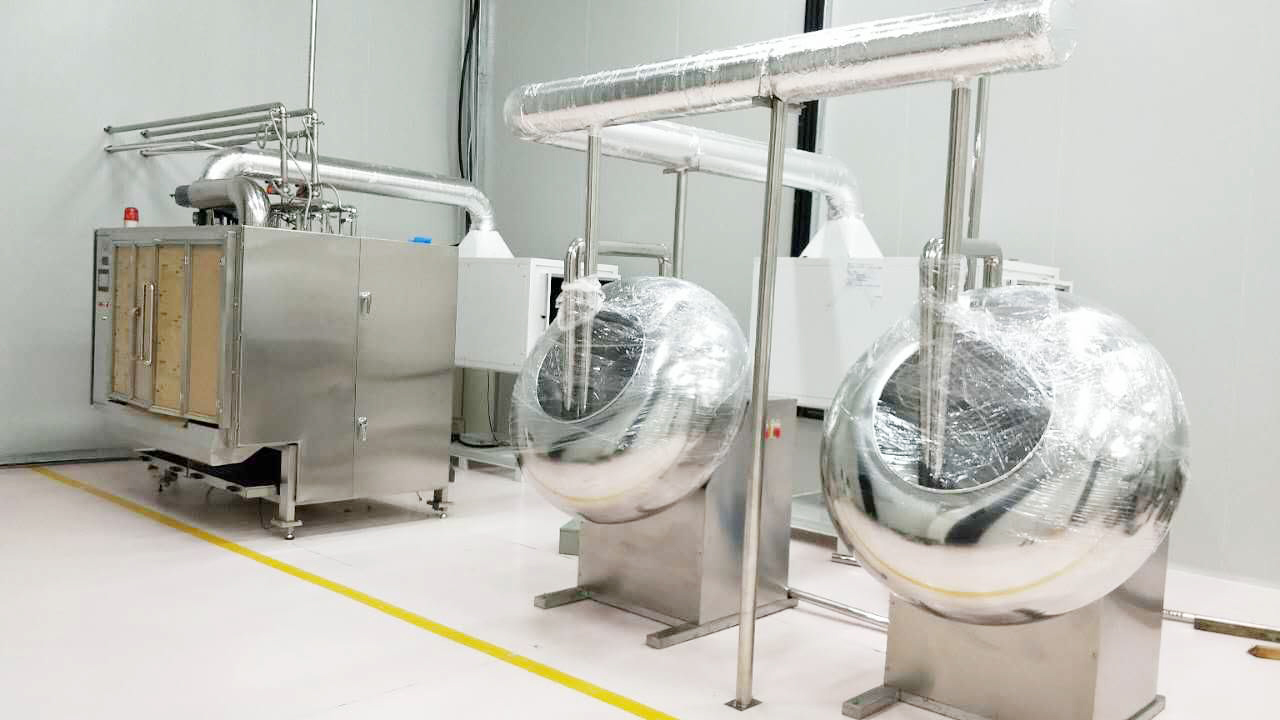

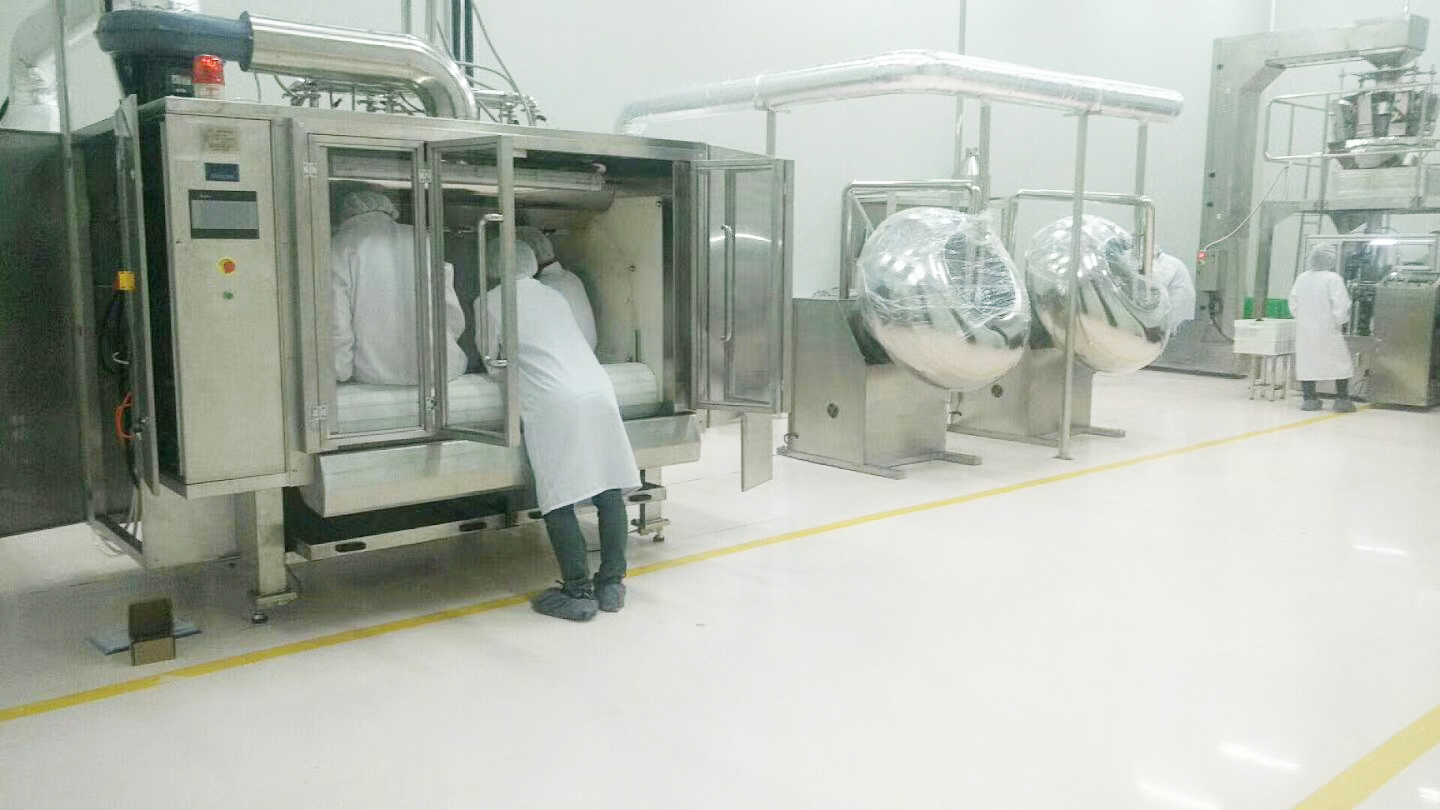

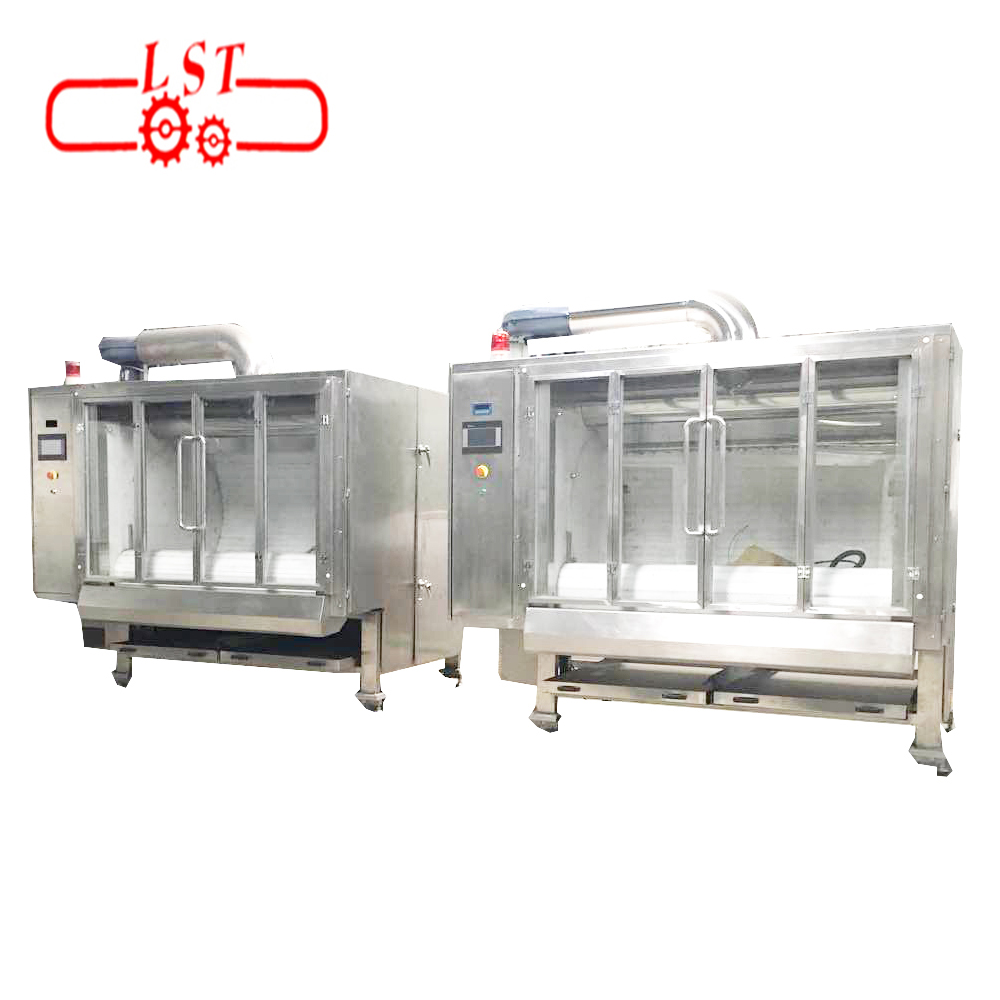

Products show

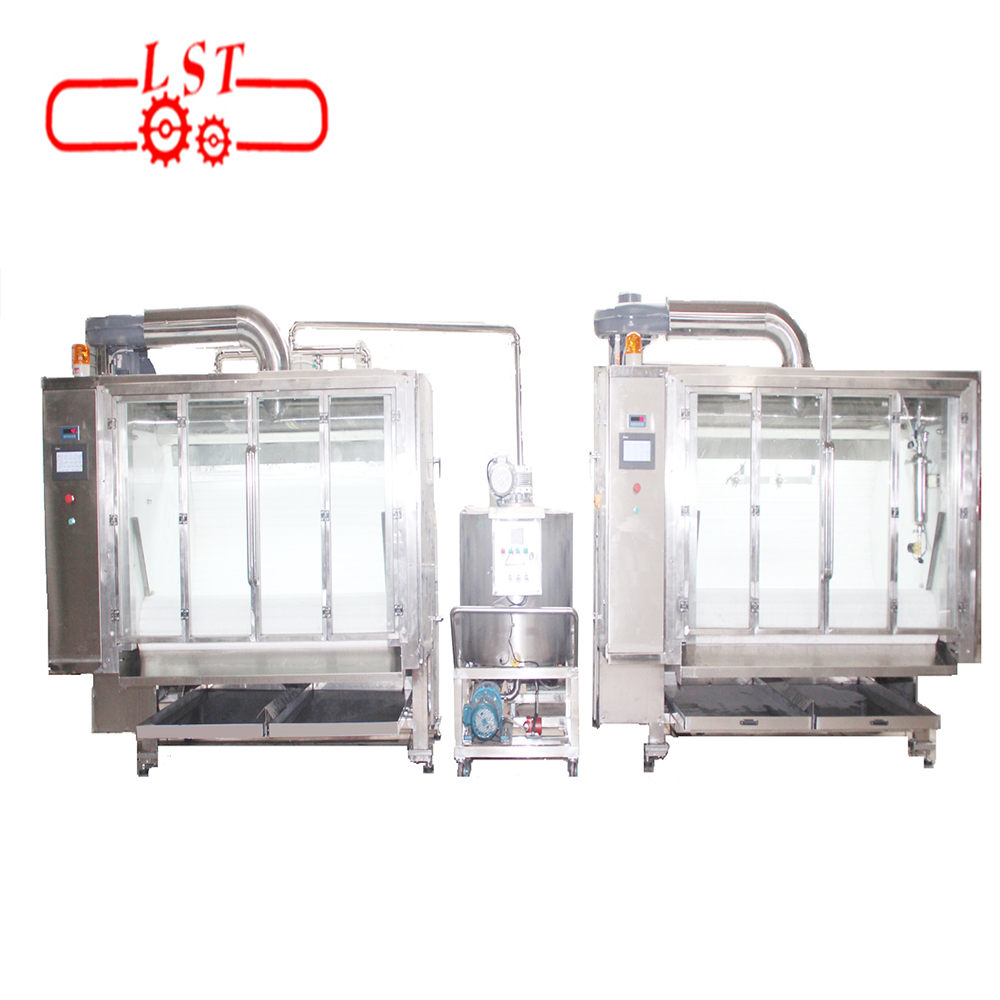

Main consist of 4 machines

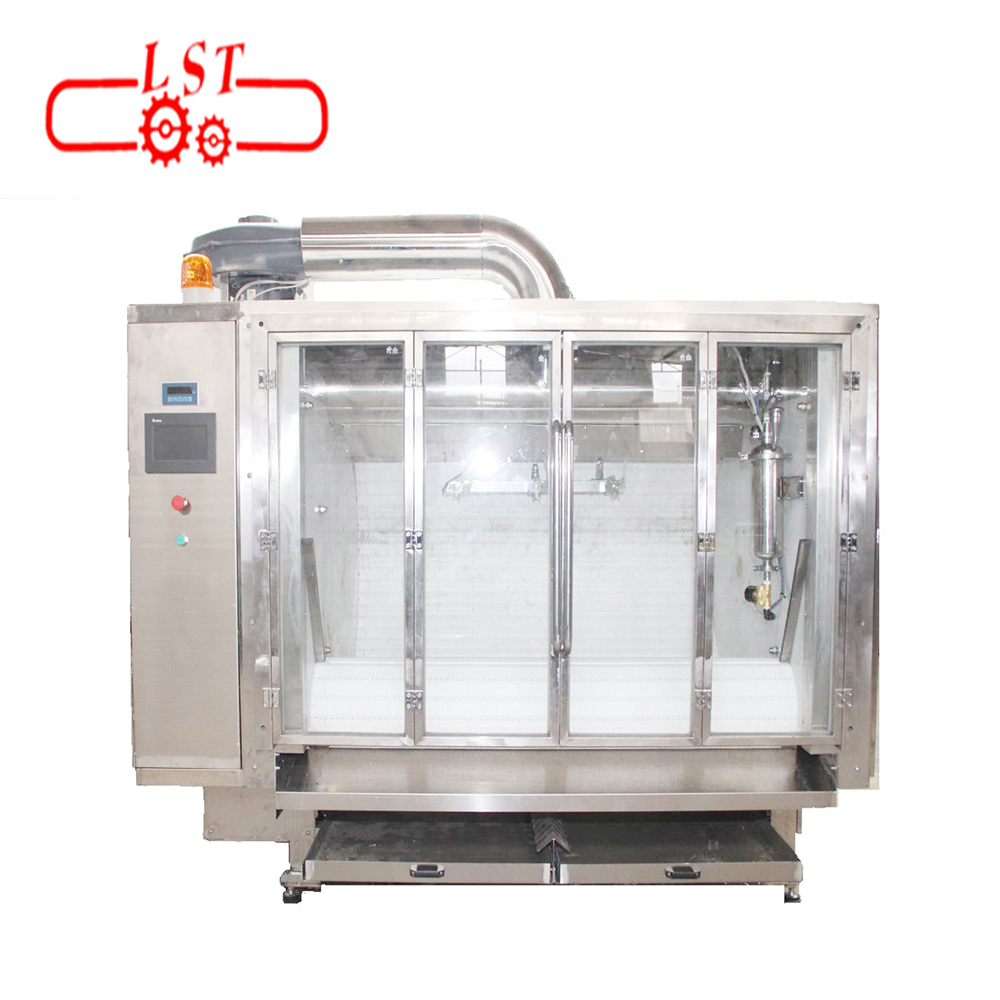

(1).chocolate coating machine

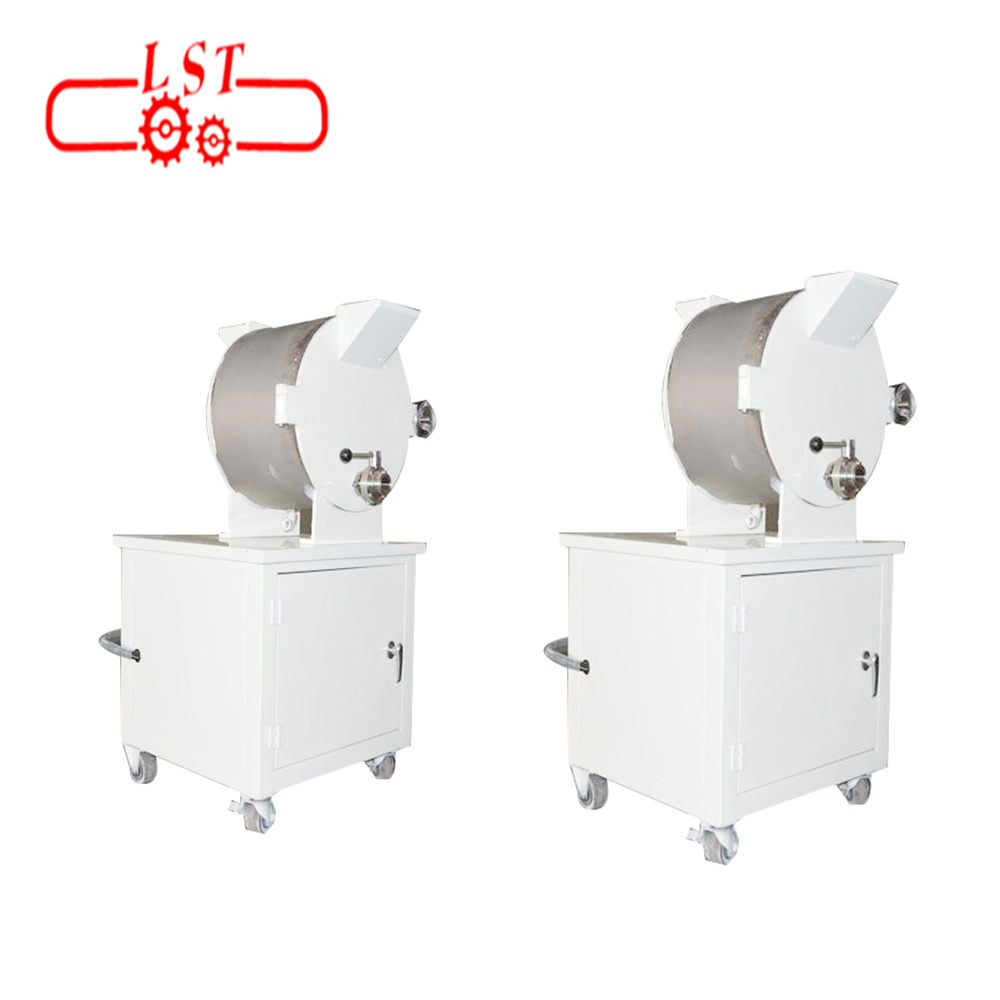

(2).chocolate material feeding system

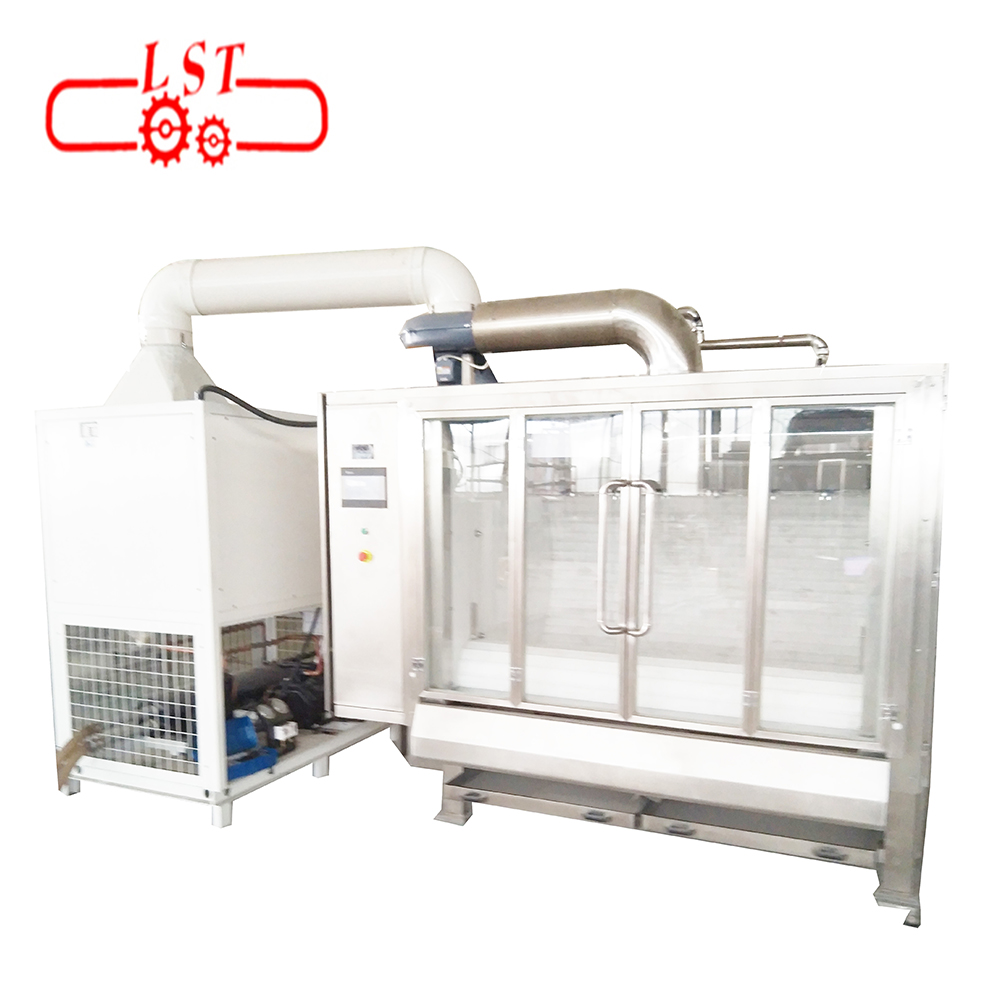

(3).8P industrial refrigeration units(water cooling and forced air cooling)

(4).chocolate polishing machine



Production condition

1.Single room for chocolate coating machine and chocolate coating machine .Must install air-condition and Dehumidity dryer to make room’s temperature ≤20℃ and humidity ≤50%.

2.Both machine can be installed on one room,room area is about 15square.

3.Chocolate after enrob,need air dry to determine on temperature10℃-15℃ and humidity ≤50%.

4.4Mpa compressed air supply,must have air supply connect scochet.

When sign contract ,buyer must explain power supply and frequency first.

Production Condition and Requirements

5.Cooling units’s temperature range 5-10℃,room temperature range  14-20℃,humidity≤50%.

6.Cold storage temperature range  10-15℃,cold storage time range 8-10 hours ,to guarantee chocolate surface’s smooth and harden.

7.Debugger will debug machine and both parts will accept machine according above requirements.If buyer’s chocolate and production condition is not fit ,then make chocolate’s instability and  disqualification ,seller won’t take any responsibility.

Company INFO

New Belt Type Auto Chocolate Machine for Chocolate Coating

Founded in 2009, Chengdu LST has professional R&D team and specialized equipment, specializes in manufacturing middle-high class of chocolate equipment, such as chocolate molding Machines, chocolate coating machines, chocolate enrobing machines, chocolate & grain mixture moulding machine, ball mill, etc.

Our chocolate equipment have been popular in the food industry. At the same time, the products produced by our equipment are also in the forefront of the candy industry as well. Besides the domestic market, our equipment have been widely sold to Germany, India,Vietnam, South Korea, Canada, Australia, Russia, Ecuador, Malaysia, Romania Israel,Peru and many other countries in the world.

We provide OEM service. At the same time, life-time after-sales service for our equipment are provided to world wide customer and we are looking forward to your visit.


Our Services

New Belt Type Auto Chocolate Machine for Chocolate Coating

Pre-sale Services
1. We’ll guide you to choose the most suitable machines for your project.
2. When sign contract, we will notify the power supply voltage and frequency.
3. Strict with complete testing and well adjustment according to customers’ requirement before shipment.

After-sale Service
1. Technical service provided.
2. Installation and On-site training service provided. Debugger only debug and train 2 kinds of products. Extra charge apply for extra products.Technicians’ installation and commissioning charges include round-way tickets, inland traffic, lodging and boarding fee are on the Buyer’s account.

3. One year warranty for standard operation. Life-time technical support provided.
Service charge applies for incorrect operation or artificial damage.
