Automatic one shot chocolate making machine chocolate depositor depositing making machine

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Condition:: New, New

Applicable Industries:: Food & Beverage Factory

Brand Name:: LST

Place of Origin:: China

Voltage:: 220V/110V

Power(W):: 3kw

Dimension(L*W*H):: 1140*640*1440mm

Weight:: 340kg

Certification:: CE ISO

Warranty:: 1 Year

Application fields:: Snack food factory, Beverage Factory

Machinery Function:: Chocolate moulding

Raw material:: Nuts, chocolate

Output product name:: CHOCOLATE

Application:: Chocolate

After-sales Service Provided:: Engineers available to service machinery overseas, Field installation, commissioning and training

Name:: Mini chocolate making machine

Material:: SUS304

Drive:: 4 sets of servo motor drive

Automatic chocolate making machine chocolate depositor depositing making machine

Product Description

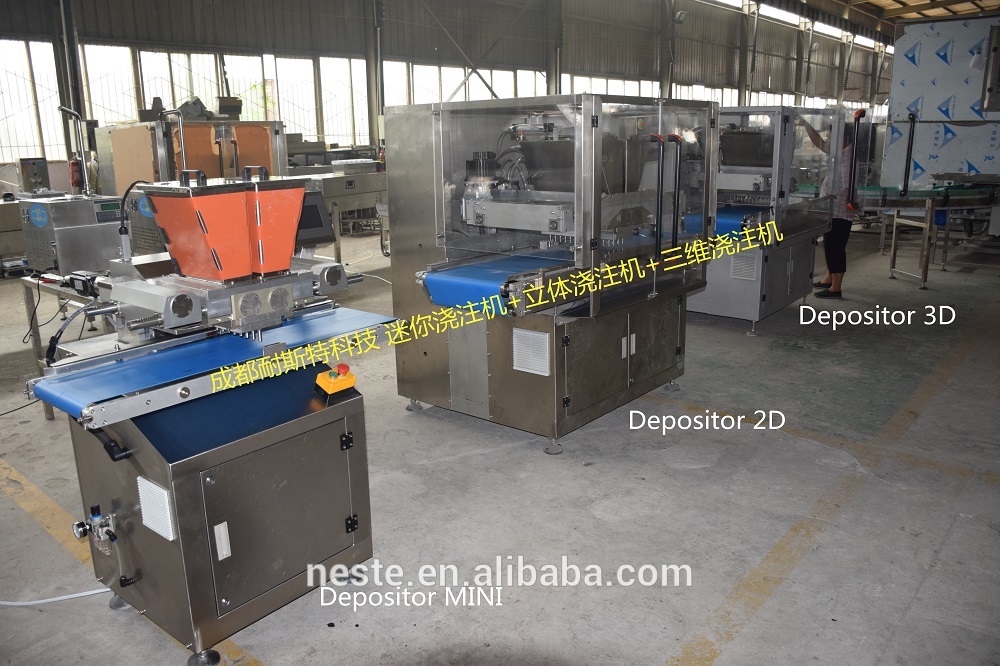

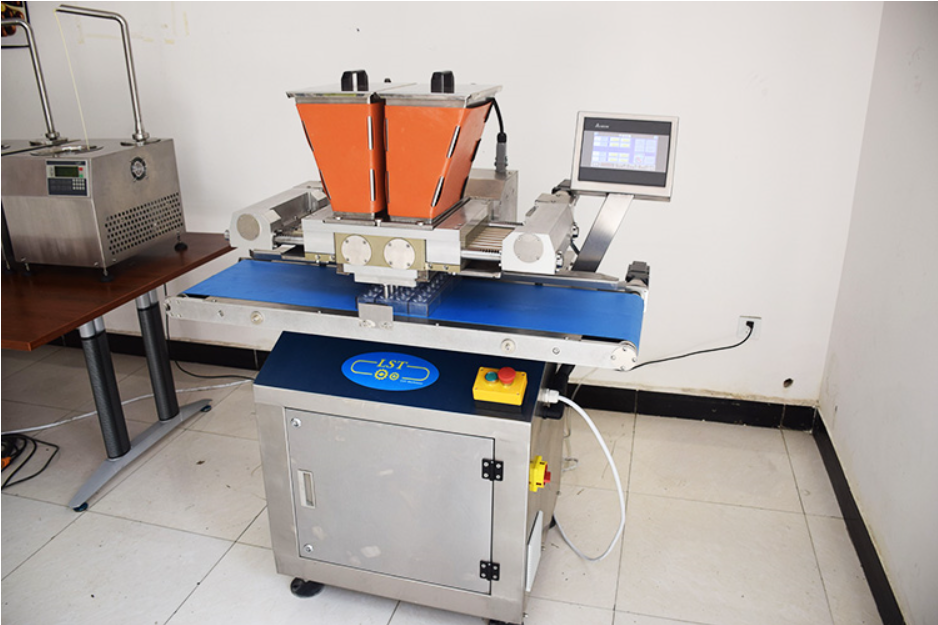

M2D8O2 mini one-shot depositor is able to produce many different kinds of high quality chocolate candies, such as chocolate blocks, chocolate and nuts mix, center filling, etc. The compact structure and advanced technologies makes it popular at home and abroad.

Main parameters

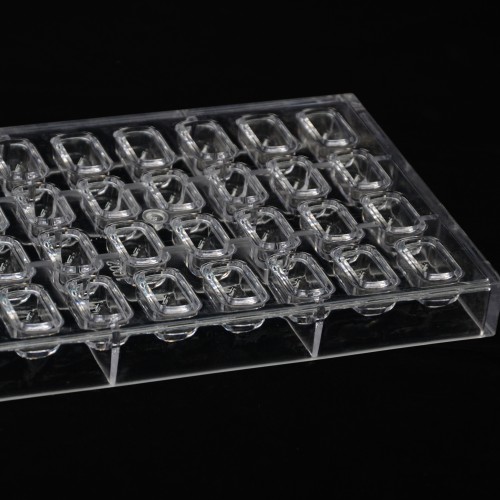

Moulds	275175mm,275135mm

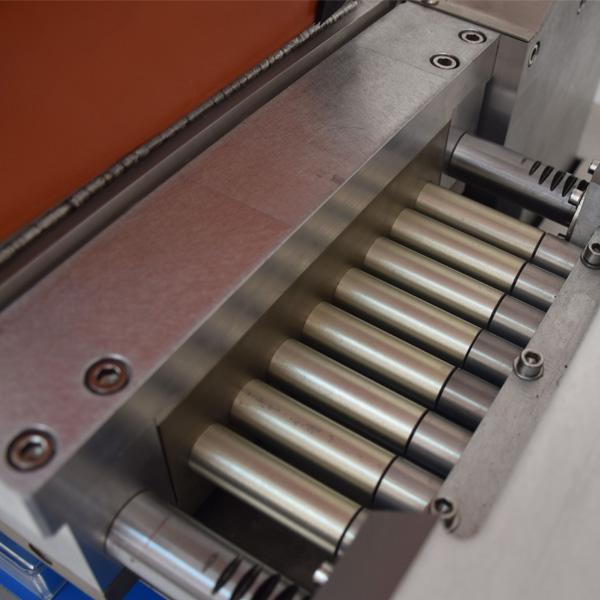

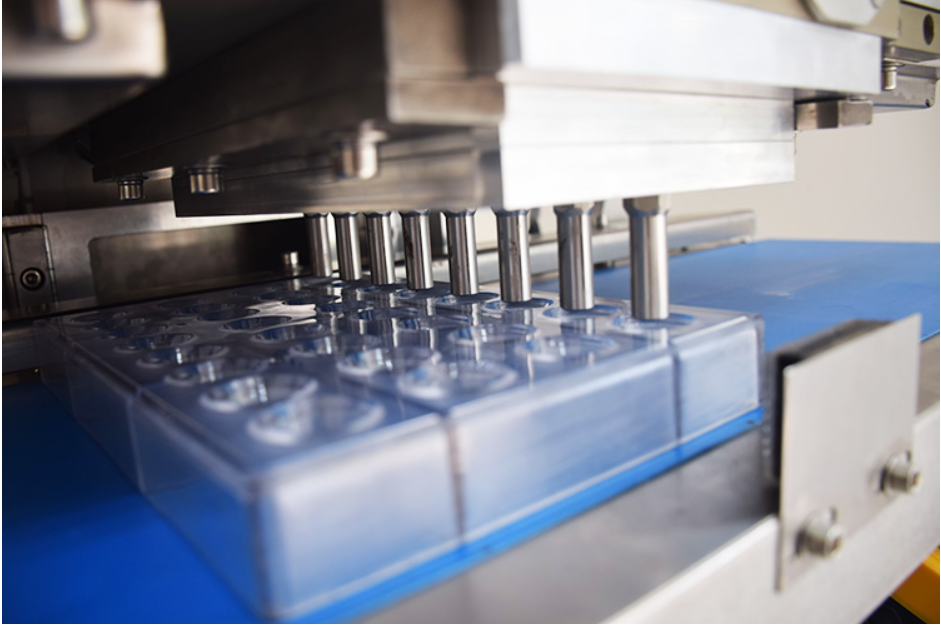

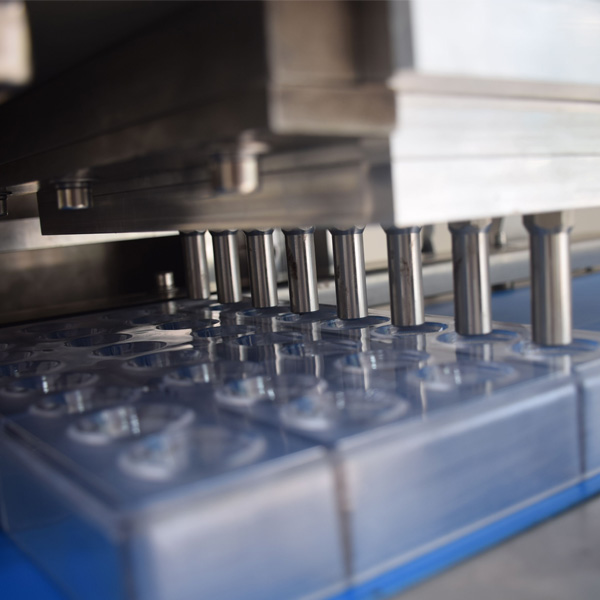

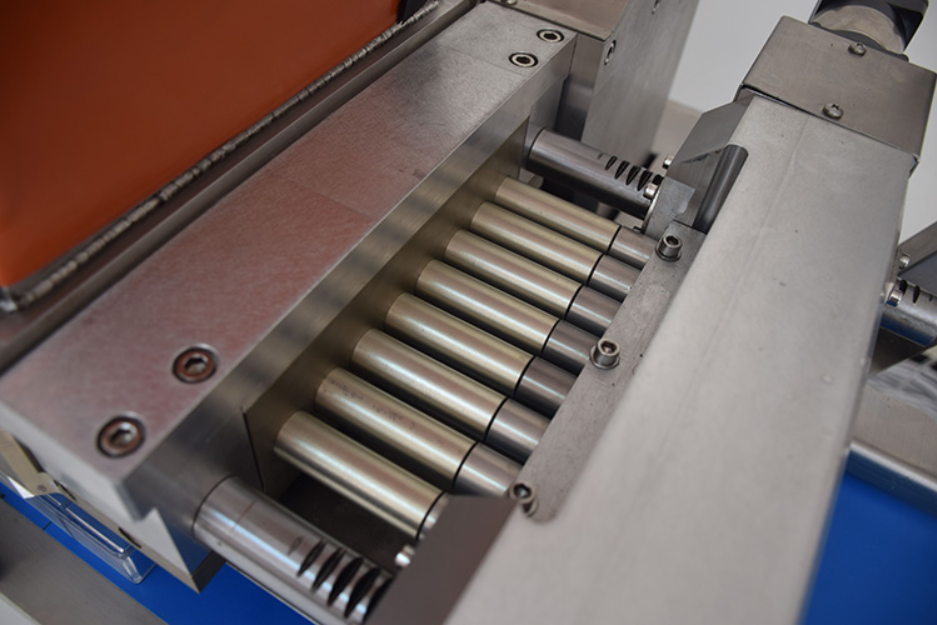

Pistons	Standard 2*8 Φ 20mm Pistons

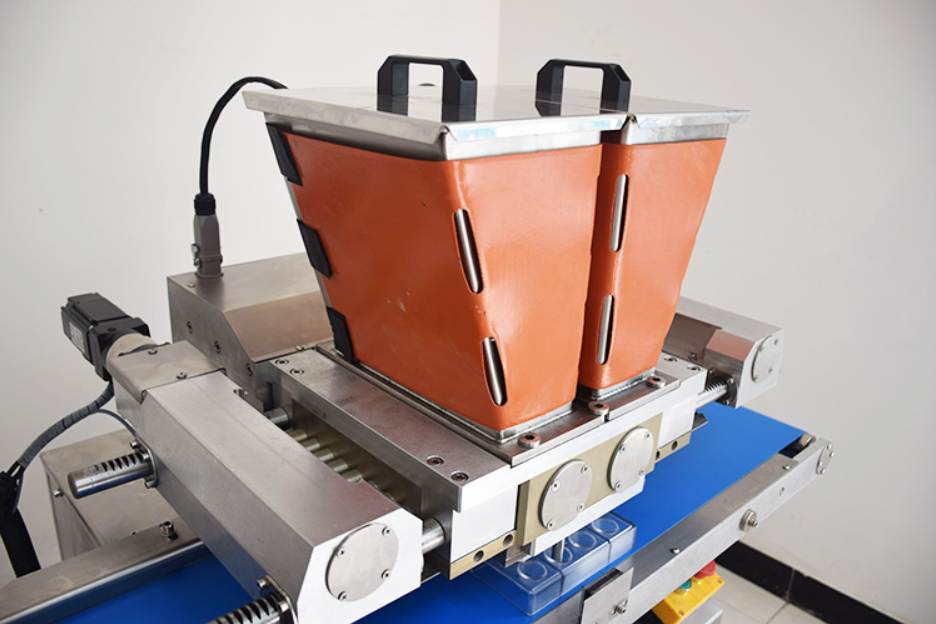

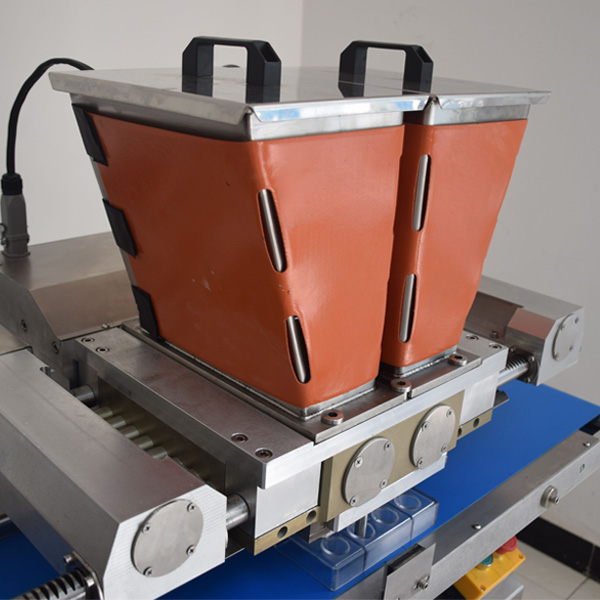

Heating	Separated heating for hoppers and valves
Conveyor Belt	Removable conveyor belt
Cleaning	Automatic hopper cleaning
Drive Motor	All movements are activated by 4 sets of 0.4kw servo motors
PLC	Standard DELTA PLC, Siemens PLC available
Productivity	Up to 150kg
Power	110/220V-single phase 50/60HZ, or customized
