Fully automatic 200-400kg/h polishing machine chocolate coating machine for sale

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Applicable Industries:
Food & Beverage Factory
After Warranty Service:
Video technical support, Online support
Local Service Location:
Canada, Pakistan, India, Russia, Morocco, Uzbekistan
Showroom Location:
None
Brand Name:
LST
Place of Origin:
Sichuan, China
Voltage:
380V/50HZ/Three Phase
Power(W):
24Kw
Dimension(L*W*H):
2550*1600 *2650mm
Weight:
800kg
Certification:
CE
Application fields:
Snack food factory, Bakery
Machinery Function:
coating
Raw material:
Milk, Corn, Fruit, Wheat, Nuts, Soybean, Flour, Vegetables, Water, peanuts, raisins , almonds M&M chocolate beans
Output product name:
chocolate
Key Selling Points:
Multifunctional
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
belt type chocolate coating machine
Matched machine:
chocolate polishing machine
Usage:
chocolate/candy/food coating and polishing
Capacity:
200-400kg/h
Refrigerant:
matched cooling system
Compressor:
0.4Mpa
Color:
SS color
Feature:
easy Operate
Warranty:
1 year

Fully automatic 200-400kg/h polishing machine chocolate coating machine for sale

Product Description




Chocolate Coating&Molding machine and Chocolate Polishing machine are mainly used in stuffed products with peanuts,almonds,raisin,puffed rice balls,Jelly candies, hard candies ,QQ candies etc.



Output

200-400kg/h  330L/batch

Total Power

12KW

Dimension

2450-1650-2250mm

Net Weight

800kg

Belt Speed

5-20m/min

Belt Width

1650mm

Compressed Air

0.4MPa

Power Supply

380V 50HZ or customized

Production process

Chocolate coating -air dry and solidify-polishing

For special product

1.For fragile products and puffed product, Diameter ≥4mm, stuffed material ≤250 liters. The more fragile, the less material.

2.For products with corner and edges,round shape and consistent thickness is not suggested.

3.For adhesive product, put less adhesive material. In case materials stick together and effect the shaping.

4.For chocolate paste, it is necessary to filter before add in to avoid block of spray nozzle.

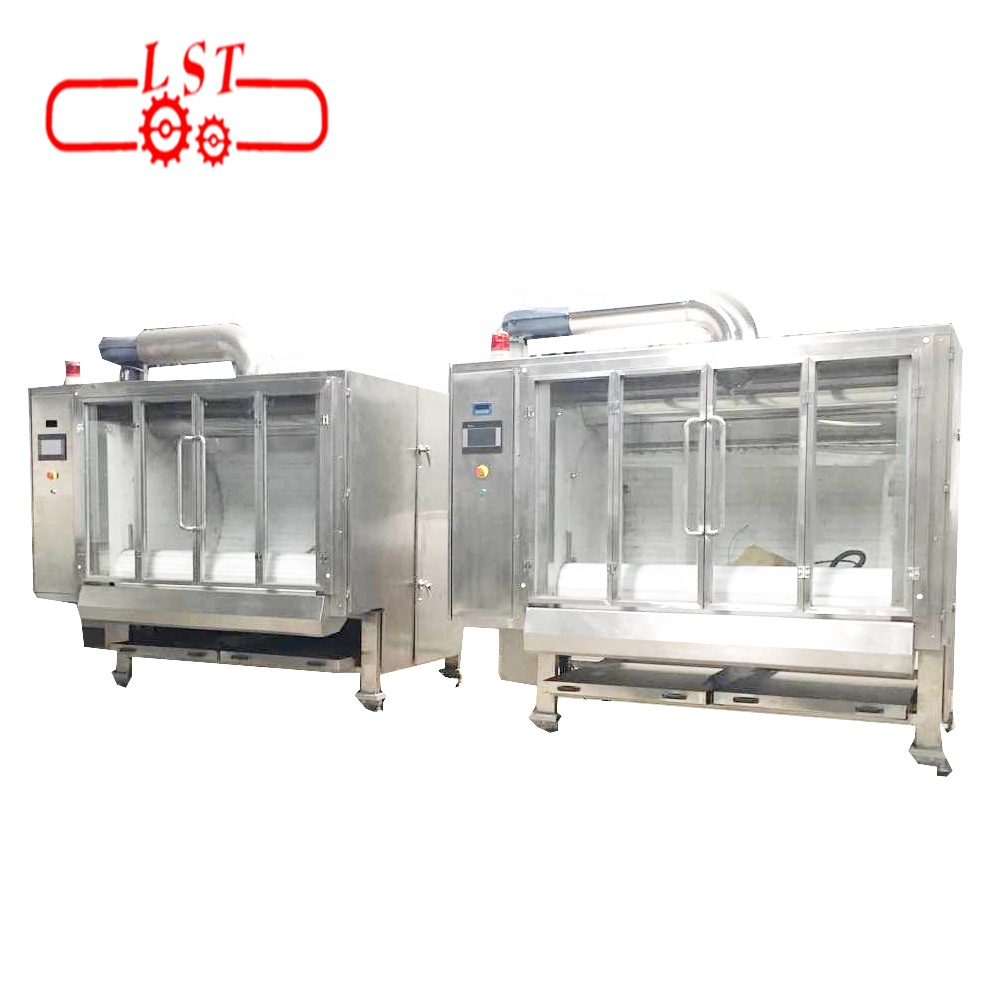

Products show

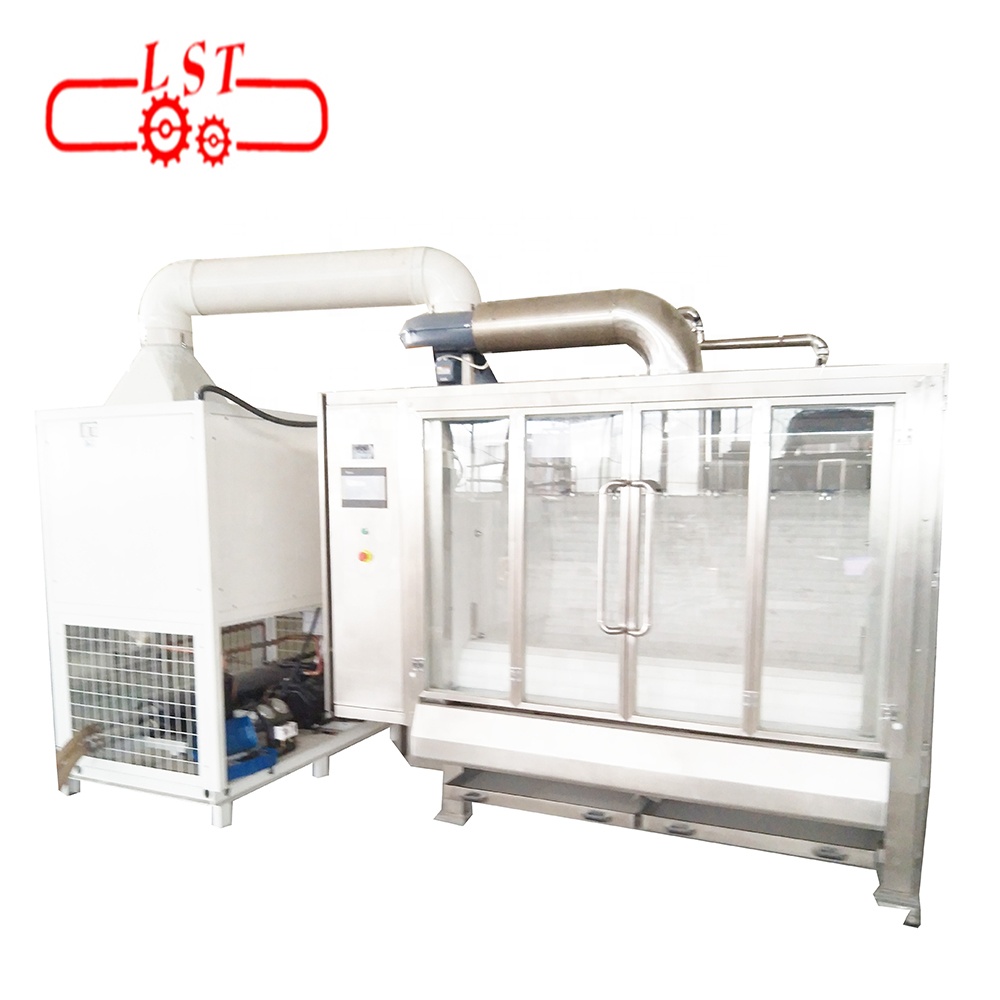

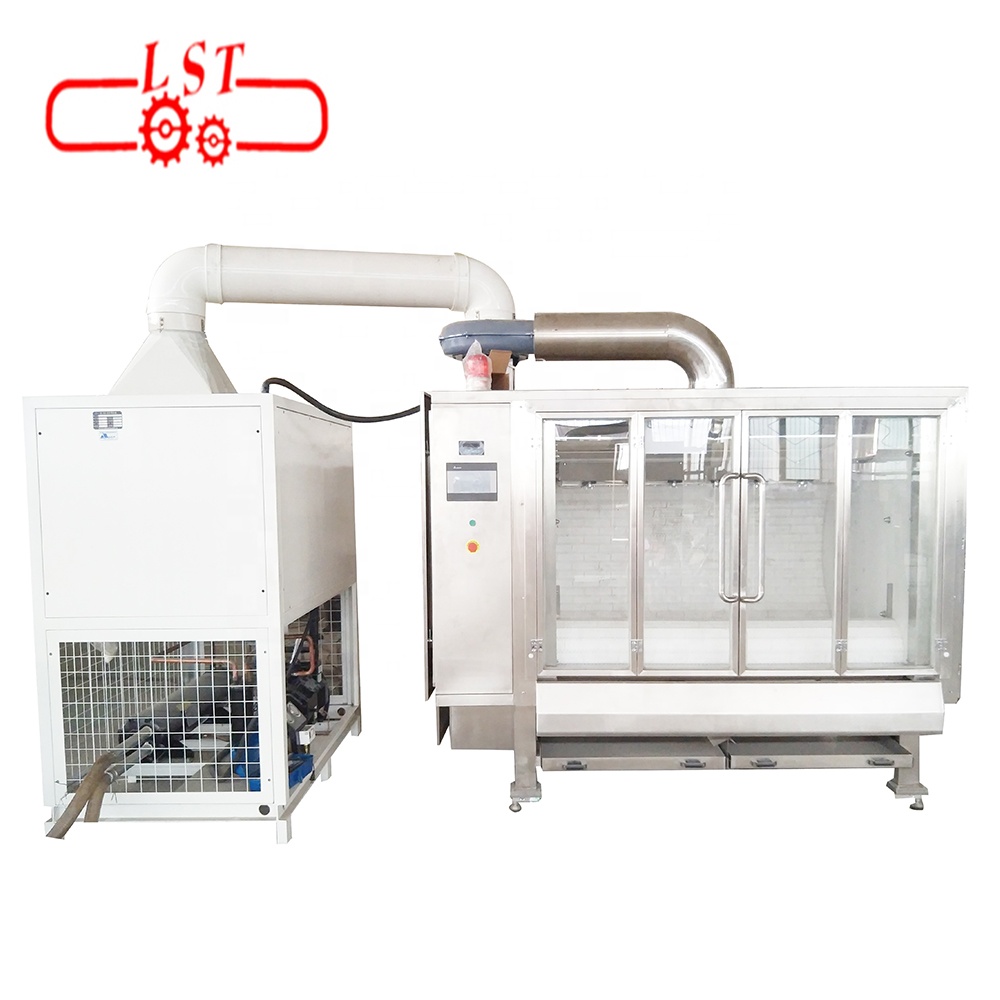

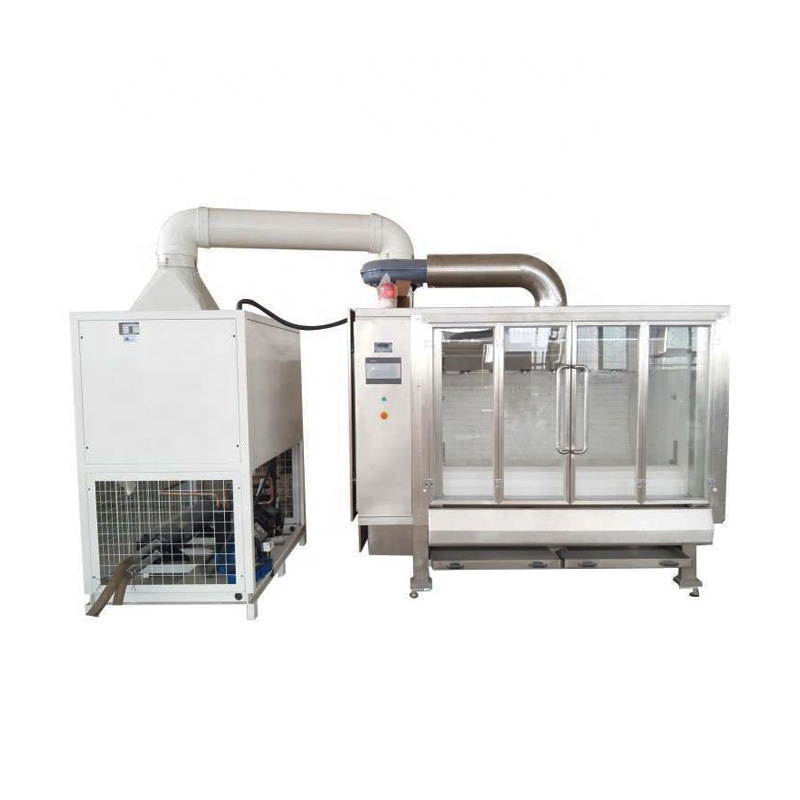

Main consist of 4 machines

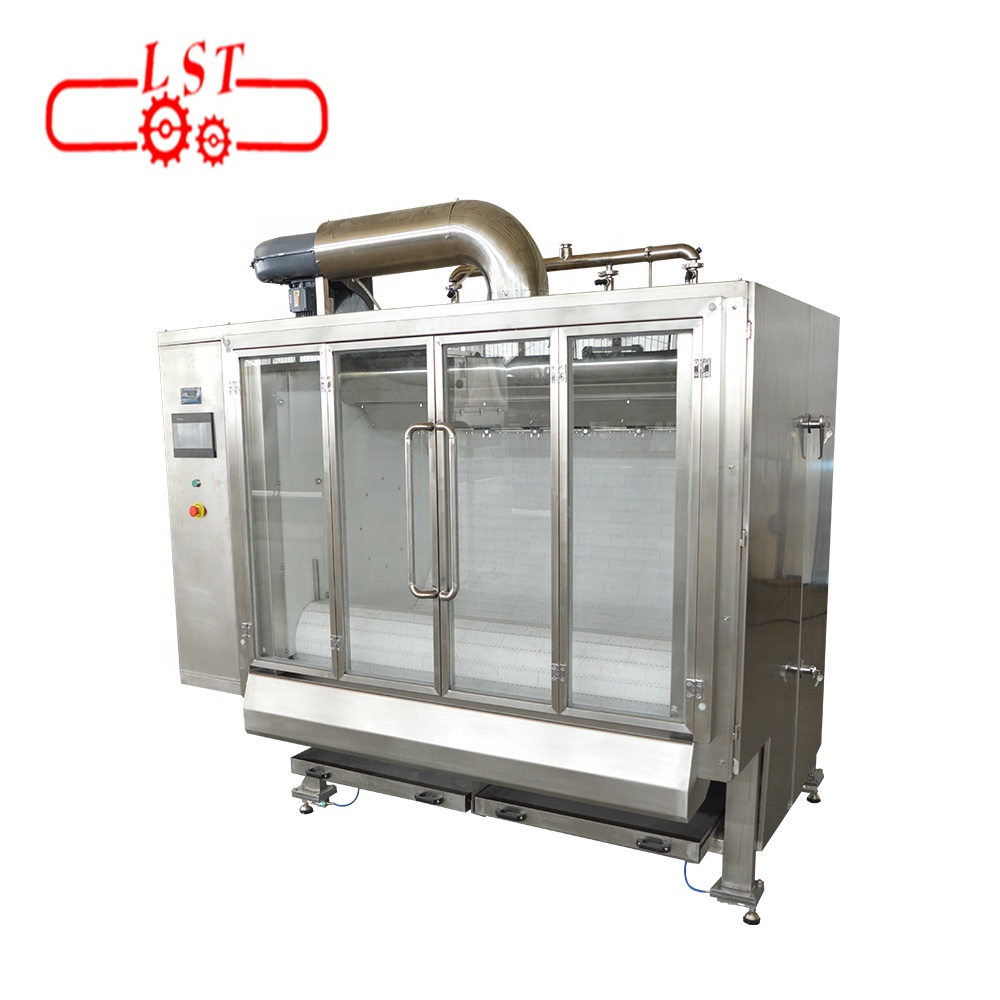

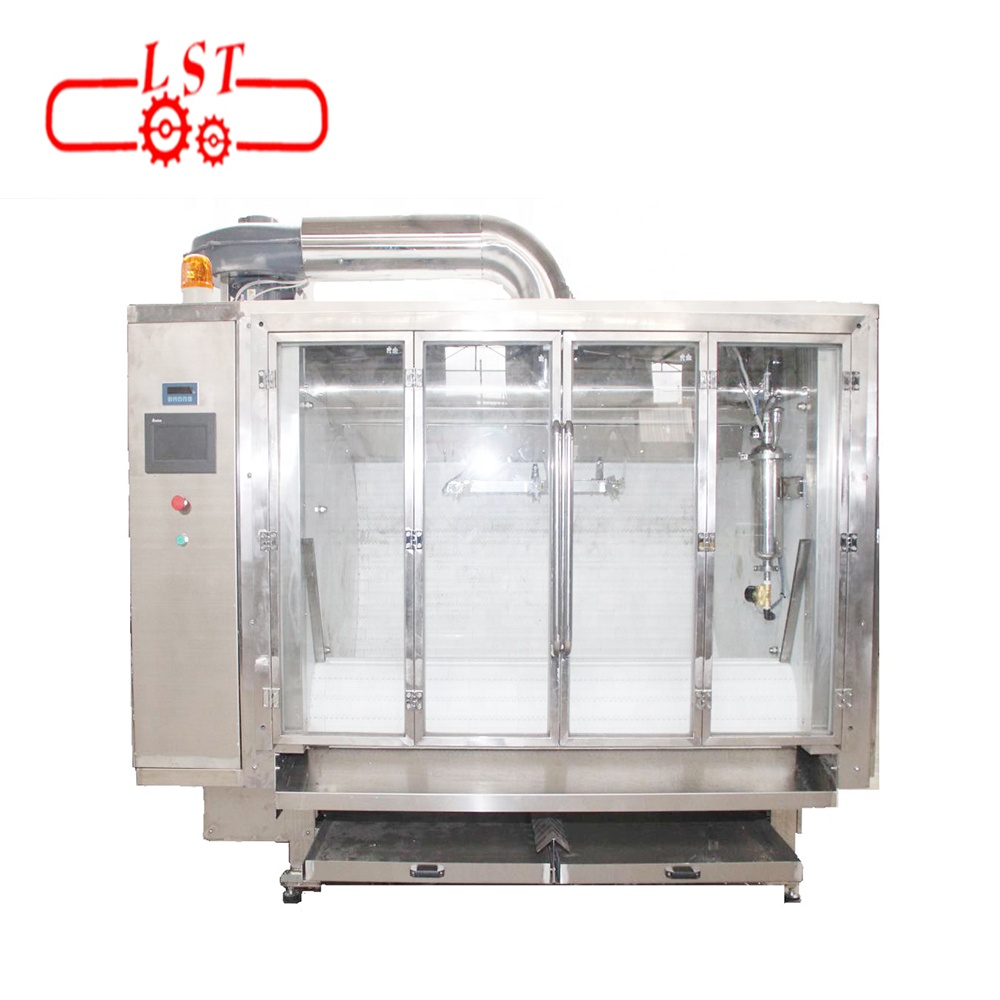

(1).chocolate coating machine

(2).chocolate material feeding system

(3).8P industrial refrigeration units(water cooling and forced air cooling)

(4).chocolate polishing machine



Production condition

1.Single room for chocolate coating machine and chocolate coating machine .Must install air-condition and Dehumidity dryer to make room’s temperature ≤20℃ and humidity ≤50%.

2.Both machine can be installed on one room,room area is about 15square.

3.Chocolate after enrob,need air dry to determine on temperature10℃-15℃ and humidity ≤50%.

4.4Mpa compressed air supply,must have air supply connect scochet.

When sign contract ,buyer must explain power supply and frequency first.

Production Condition and Requirements

5.Cooling units’s temperature range 5-10℃,room temperature range  14-20℃,humidity≤50%.

6.Cold storage temperature range  10-15℃,cold storage time range 8-10 hours ,to guarantee chocolate surface’s smooth and harden.

7.Debugger will debug machine and both parts will accept machine according above requirements.If buyer’s chocolate and production condition is not fit ,then make chocolate’s instability and  disqualification ,seller won’t take any responsibility.
